Material Requirements for Alloy Tubes in Semiconductor Wet Process Equipment
Choosing alloy tubes for semiconductor wet process equipment is not simply a matter of selecting a corrosion-resistant metal. The material must be reviewed in relation to the actual process chemistry, temperature, pressure, surface condition, contamination risk, documentation requirements, and long-term maintenance needs.
In some high-purity wet chemical systems, non-metallic materials such as fluoropolymers may be more suitable than metallic tubes. In other areas, alloy tubes may be considered for equipment structures, utility lines, heat exchange sections, exhaust or drainage-related parts, pressure-containing components, or compatible chemical service. The correct choice depends on where the tube is used and what it will contact.

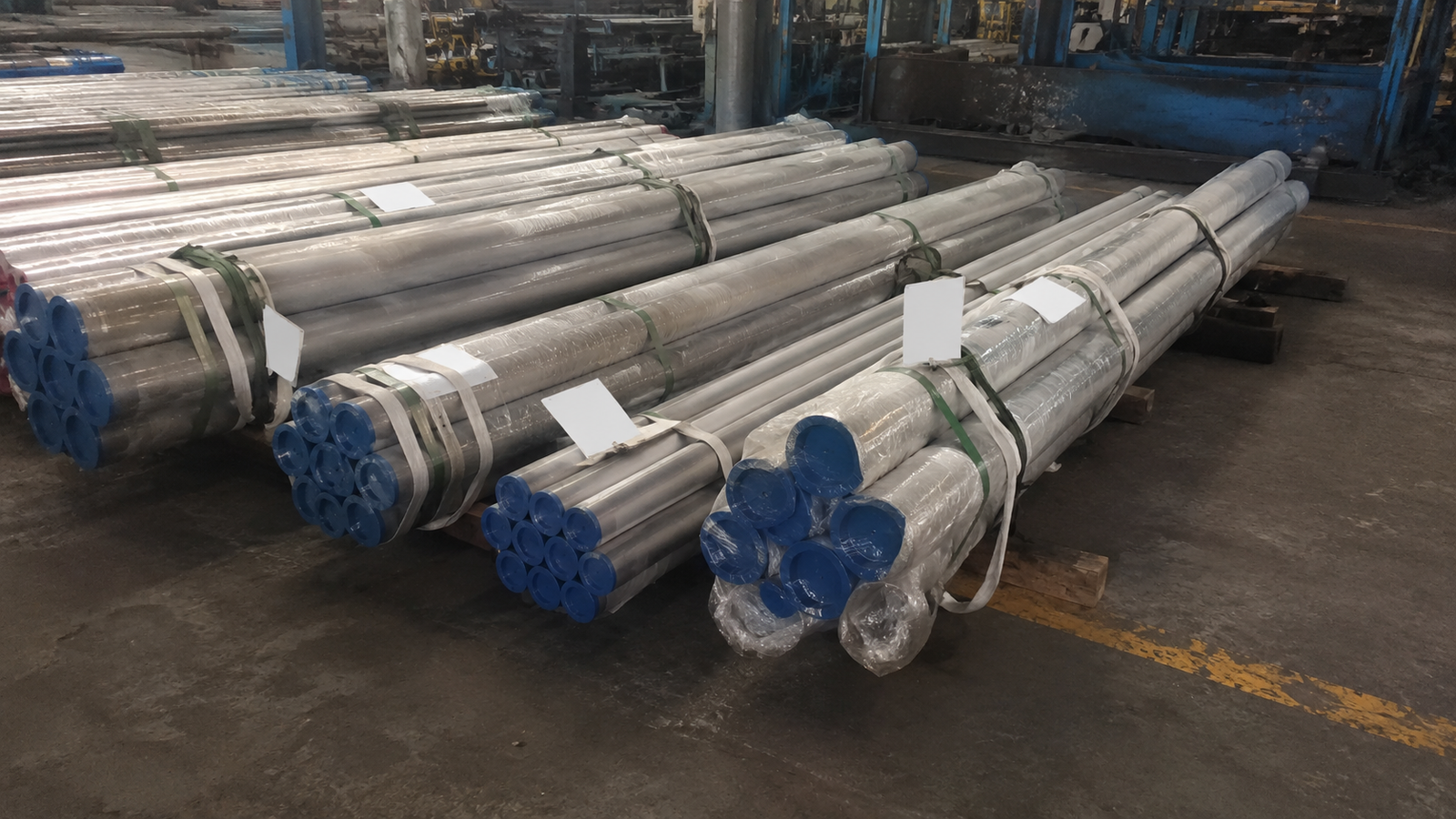

![Material Requirements for Alloy Tubes in Semiconductor Wet Process Equipment](https://emilypipe.com/wp-content/uploads/2026/07/Hastelloy-C276-Pipe12.png")
For semiconductor wet process equipment, the goal is not to find one “best” alloy. The goal is to select a material that matches the process environment while reducing avoidable risks related to corrosion, contamination, mechanical failure, documentation gaps, and long-term cost.
Why Is There No Single Best Alloy for Semiconductor Wet Processes?
There is no universal alloy for all semiconductor wet process equipment.
Wet process systems may involve ultrapure water, acids, alkaline cleaners, solvents, etchants, oxidizers, reducing chemicals, mixed chemistries, elevated temperature, pressure, flow, and strict contamination control. A material that works well in one process area may not be suitable in another.
SEMI Liquid Chemicals standards cover topics such as analytical methods for liquid chemicals and materials used to contain and transport them, contamination-related issues, chemical distribution systems, and component performance. This shows why material selection for semiconductor chemical systems should be based on the actual process, not only on a general material name.
Key Process Questions Before Selecting Alloy Tubes
| Process Factor | What Buyers Should Confirm |
|---|---|
| Chemical type | Acid, alkali, solvent, oxidizer, reducing agent, etchant, UPW, or mixed chemistry |
| Chemical concentration | Low and high concentration ranges, including possible process fluctuations |
| Temperature | Room temperature, elevated temperature, heating/cooling cycles, or thermal shock |
| Pressure | Operating pressure, pressure spikes, vacuum, or pressure cycling |
| Flow condition | Static, turbulent, high velocity, or particle-containing liquid |
| Contamination sensitivity | Whether metallic ion leaching or particles could affect the process |
| Cleaning method | Chemical cleaning, rinsing, passivation, flushing, or drying requirements |
| System location | Direct chemical contact, support structure, heat exchange, utility line, drain, or exhaust-related area |
For corrosion-related selection, ISO 21457 identifies corrosion mechanisms and parameters for evaluation when selecting materials for pipelines, piping, and equipment. AMPP also notes that material selection may involve corrosion resistance in the environment, design and test data, mechanical properties, cost, availability, maintainability, compatibility, life expectancy, and reliability. AMPP material selection factors
This means material selection should begin with the actual wet process environment. Without this information, any alloy recommendation is only a general starting point.
Which Alloy Families May Be Considered?
Different alloy families may be considered depending on the service environment, but no grade should be selected without chemical compatibility review and project-specific verification.
Common Candidate Material Families
| Material Family | Possible Use Consideration | Important Caution |
|---|---|---|
| Titanium Grade 2 / Grade 7 | May be considered for some oxidizing or chloride-containing environments, depending on concentration and temperature | Not suitable for every acid or fluoride-containing condition; verify compatibility carefully |
| Nickel-chromium-molybdenum alloys, such as C-276 or C-22 | May be considered for certain aggressive mixed acid or reducing acid environments | Performance depends strongly on exact chemistry, temperature, impurities, and fabrication condition |
| 316L stainless steel | May be used in some clean utility, structural, or compatible low-risk areas | Not suitable for many aggressive wet etching or high-chloride conditions |
| Alloy 625 or other nickel alloys | May be considered where corrosion resistance and mechanical strength are both needed | Must be checked against specific process chemistry and standard requirements |
| Non-metallic materials | Often considered for high-purity chemical contact areas | May have limits in pressure, temperature, mechanical strength, or installation method |
For titanium tubes, ASTM B338 covers seamless and welded titanium alloy tubes used for applications such as condensers, evaporators, and heat exchangers. For nickel alloy seamless pipe and tube, ASTM B622 covers nickel and nickel-cobalt alloys classified by chemical composition and includes requirements such as chemical analysis, mechanical properties, tension testing, hydrostatic testing, and nondestructive electric testing.
These standards help define product requirements, but they do not replace application-specific compatibility review.
What Material Properties Matter Most?
For semiconductor wet process equipment, buyers should look beyond general strength or a simple corrosion resistance statement.
The most important material properties often depend on whether the tube directly contacts process chemicals, supports equipment, transfers heat, carries utilities, or forms part of an exhaust, drain, or pressure-containing system.
Key Material Properties to Review
| Property | Why It Matters |
|---|---|
| General corrosion resistance | Helps prevent uniform material loss in the selected chemical environment |
| Localized corrosion resistance | Pitting, crevice corrosion, and stress corrosion cracking may be more dangerous than general corrosion |
| Surface finish | Affects cleanability, particle retention, localized corrosion risk, and process cleanliness |
| Material purity | Important when extractable or leachable elements may affect high-purity processes |
| Mechanical strength | Needed for pressure, thermal cycling, vibration, support, and equipment reliability |
| Weldability | Welds and heat-affected zones must maintain integrity and corrosion resistance |
| Formability and machinability | Important for bending, cutting, installation, and fabrication |
| Heat treatment condition | Can affect mechanical properties, microstructure, and corrosion behavior |
| Dimensional tolerance | Important for fit-up, sealing, welding, and equipment assembly |
Semiconductor manufacturing also requires strong contamination control. ISO 14644-1 classifies cleanrooms and clean zones by airborne particle concentration, while SEMI notes that controlling particle contamination on processing equipment components has become an important quality requirement for users of processing equipment. SEMI particle contamination control
For alloy tubes, this means surface finish, cleaning, packaging, and handling should be discussed early when the part is used in a contamination-sensitive area.
How Important Are Surface Finish and Cleanliness?
Surface condition can be critical in semiconductor wet process equipment. A rough or poorly cleaned surface may retain particles, chemicals, residues, or corrosion products. This can increase the risk of contamination or localized corrosion.
Surface finish should not be described only as “smooth” or “polished.” Buyers should specify measurable or verifiable requirements when they matter.
Surface and Cleanliness Items to Confirm
| Requirement | What to Specify |
|---|---|
| Surface roughness | Ra or other surface texture parameter if required by the equipment design |
| Surface treatment | Pickling, polishing, grinding, passivation, electropolishing, or other treatment |
| Internal surface condition | Especially important for tubes carrying process fluids or clean utilities |
| Cleaning method | Degreasing, rinsing, drying, cleanroom cleaning, or other specified procedure |
| Particle control | Whether particle testing or cleanliness verification is required |
| Packaging | Sealed bags, capped ends, double packaging, or moisture protection |
| Handling | Gloves, clean tools, dedicated packaging, or contamination control instructions |
For stainless steels, ASTM B912 covers passivation by electropolishing for stainless steel alloys. This standard should not be applied automatically to all materials, but it shows why surface treatment requirements should be clearly defined rather than assumed.
When surface roughness is important, buyers should also confirm which measurement method and acceptance criteria will be used.
How Should Supplier Material Data Be Verified?
Supplier claims should be supported by batch-specific documents and inspection records. A data sheet can be useful for early review, but it is not the same as a material test report for the actual supplied material.
For alloy tubes used in semiconductor-related equipment, buyers may need to verify grade, heat number, chemical composition, mechanical properties, surface condition, dimensional tolerance, and certificate type.
Documents Buyers May Request
| Document or Record | Why It Matters |
|---|---|
| Material Test Report / MTR | Helps verify chemical composition, mechanical properties, heat number, and standard |
| EN 10204 certificate | Confirms the inspection document type required for the order |
| Heat number or batch traceability | Supports later investigation if a material issue appears |
| Dimensional inspection report | Confirms OD, wall thickness, length, straightness, or tolerance |
| Surface finish report | Useful when Ra or internal finish is specified |
| PMI report | Helps confirm alloy identification when required |
| NDT report | UT, ECT, hydrostatic test, or other inspection if required by standard or order |
| Cleaning or passivation record | Important when cleanliness or surface treatment is specified |
| Packaging record | Helps confirm that the material was protected during shipment |
BS EN 10204 is the European standard for inspection documents used to authenticate materials, and BSI explains that manufacturers are often expected to prove that products meet required chemical and mechanical properties.
ISO 9001 can support a supplier’s quality management system, but it does not replace batch-specific material documentation. ISO 9001 in the supply chain explains that buyers still need to define product requirements such as specifications, drawings, and standards clearly.
What Risks Should Buyers Consider?
In semiconductor wet process equipment, material selection risks are not limited to corrosion. A material may be strong enough mechanically but still unsuitable if it contaminates the process, is difficult to clean, or lacks proper documentation.
Common Risks in Alloy Tube Selection
| Risk | How It May Appear | How to Reduce the Risk |
|---|---|---|
| Chemical incompatibility | Corrosion, pitting, cracking, or leakage | Review exact chemistry, temperature, concentration, and exposure time |
| Contamination | Metallic ions, particles, residues, or corrosion products | Specify surface finish, cleaning, purity, packaging, and documentation |
| Premature failure | Cracking, wall thinning, weld failure, or deformation | Confirm mechanical properties, pressure, temperature, and fabrication method |
| Documentation gap | Material cannot pass incoming inspection or project approval | Request MTR, heat number, certificate type, and inspection records before shipment |
| Surface damage | Scratches, dents, embedded particles, or rough internal surface | Define surface requirements and protective packaging |
| Cost overrun | Rework, replacement, downtime, or delayed qualification | Evaluate total cost, not only tube price |
| Supply delay | Special size, special finish, or certificate requirement not confirmed early | Check MOQ, lead time, production route, and document availability before ordering |
A lower material price may not reduce total cost if the tube requires rework, causes approval delays, or is unsuitable for the process. For contamination-sensitive or corrosive environments, the practical cost of material selection includes testing, documentation, cleaning, packaging, maintenance, and possible replacement.
Practical Checklist Before Ordering Alloy Tubes
Before ordering alloy tubes for semiconductor wet process equipment, buyers can review the following checklist:
- Where will the tube be used in the equipment or system?
- Will the tube contact process chemicals, UPW, gas, exhaust, utility fluid, or only support the structure?
- What chemicals, concentrations, temperatures, and pressures will be involved?
- Is metal the right material for this location, or should non-metallic materials also be considered?
- What alloy grade and product standard are required?
- Is seamless or welded tube acceptable for the application?
- What surface finish, internal cleanliness, and packaging are required?
- Is electropolishing, passivation, pickling, degreasing, or special cleaning needed?
- What inspection documents are required: MTR, EN 10204 3.1, third-party inspection, or internal reports?
- Is heat number traceability required?
- Are PMI, UT, ECT, hydrostatic testing, or dimensional inspection required?
- Can the supplier meet the required tolerance, length, surface condition, and delivery schedule?
- Has the material been reviewed for real application risks, not only datasheet values?
- Has the total cost been considered, including cleaning, testing, documentation, packaging, and possible replacement?
Conclusion
Choosing alloy tubes for semiconductor wet process equipment requires more than selecting a corrosion-resistant grade.
Buyers should first understand where the tube will be used, what chemicals it will contact, what contamination risks exist, and what documentation is needed for inspection and approval. Material selection should consider process chemistry, temperature, pressure, localized corrosion, surface finish, cleanliness, traceability, and supplier quality control.
There is no single alloy that fits every semiconductor wet process application. A more reliable approach is to define the actual process conditions first, then match the alloy, surface condition, certificate requirements, and supplier capability to that specific use case.
When the application is highly sensitive to contamination or corrosion, it is worth discussing the process environment, drawings, surface requirements, and inspection documents with the supplier before confirming the order.
