A steam sterilizer chamber, dry-heat oven, ethylene oxide system, vaporized hydrogen peroxide sterilizer, pharmaceutical autoclave, valve stem, internal rack, condensate pipe, bellows, spring, fastener, sensor sheath, and seal interface do not experience the same environment.

Some components form part of a pressure boundary. Others experience only atmospheric pressure. Some contact saturated steam or condensate, while others are exposed mainly to dry heat, vacuum, cleaning chemicals, oxidizing sterilants, external humidity, or mechanical wear.

The correct material is therefore not the alloy with the highest temperature rating or the most impressive corrosion description. It is the material, product form, condition, fabrication route, surface, inspection plan, and documentation package that match the exact sterilization method and component function.

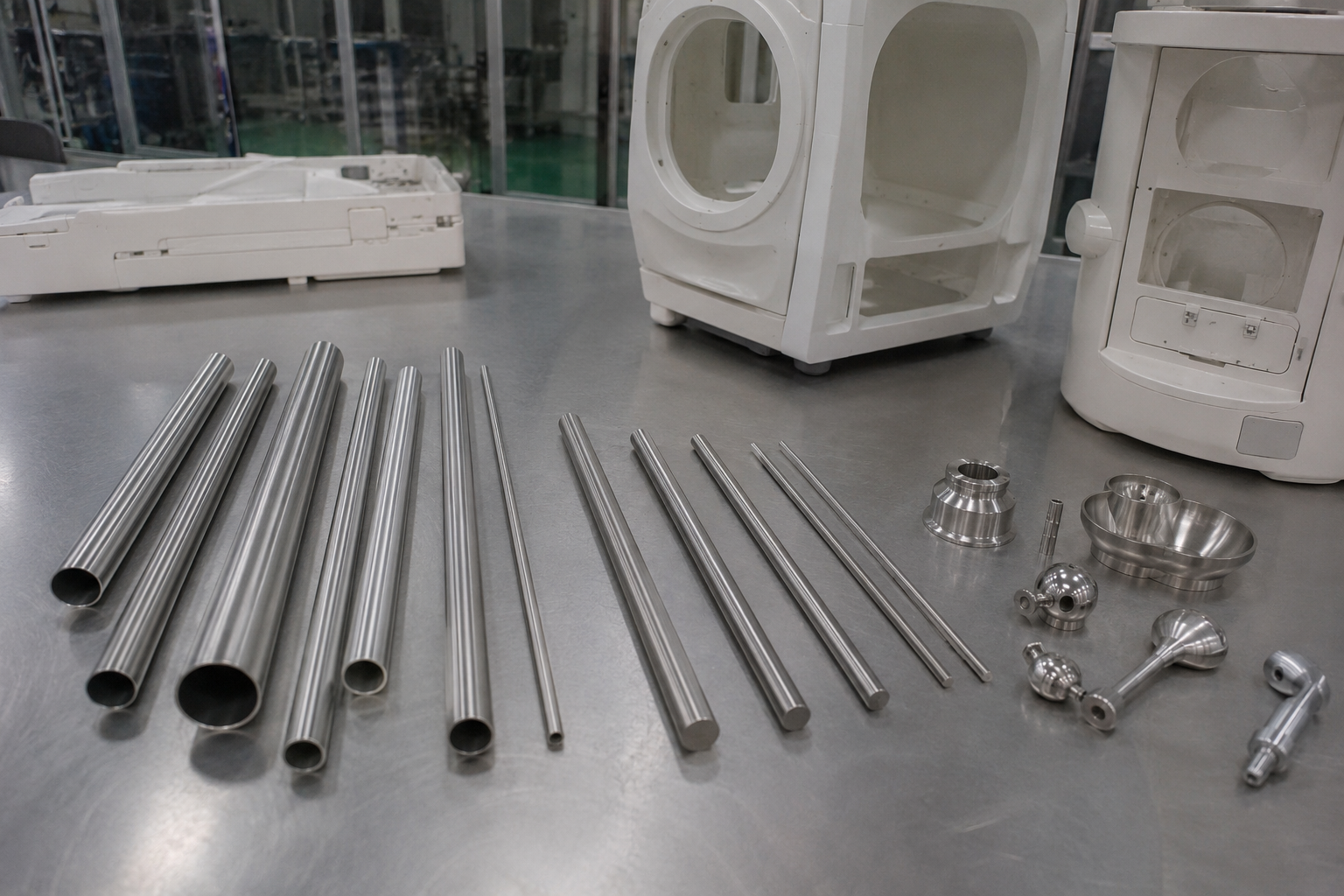

Heat- and corrosion-resistant alloys for sterilization equipment components

The first engineering question should not be:

“Should this component use 316L, Alloy 625, C276, or titanium?”

It should be:

“What does this component contain, what sterilizing and cleaning media reach it, what pressure and temperature cycles does it experience, and which damage mechanisms are credible?”

Start by Defining the Sterilization Method

The term “sterilization equipment” covers several technologies.

Each technology creates a different materials problem.

Moist-Heat and Steam Sterilization

ISO 17665:2024 specifies requirements for developing, validating, and routinely controlling moist-heat sterilization processes for medical devices.

Moist-heat equipment may involve:

Saturated steam;
active air removal;
steam–air mixtures;
water spray;
water immersion;
vacuum stages;
pressurization;
heating;
exposure;
depressurization;
drying.

For metallic equipment components, relevant conditions may include:

Steam quality;
feedwater chemistry;
condensate chemistry;
chloride contamination;
non-condensable gases;
cleaning residues;
pressure cycles;
temperature cycles;
wet–dry exposure;
stagnant condensate;
drainage;
welded crevices.

For many steam sterilizers, classical high-temperature creep is not the main reason to select a nickel superalloy.

More relevant questions commonly include:

Is the pressure boundary designed correctly?
Are the material and welds allowed by the governing pressure code?
Can condensate drain completely?
Are chlorides or cleaning residues accumulating?
Are weld heat tint and contamination controlled?
Can the surface be inspected and maintained?
Is cyclic fatigue addressed?

Dry-Heat Sterilization

Dry-heat equipment may operate at a higher temperature than moist-heat sterilizers, but material selection still depends on the actual component.

Potential concerns include:

Oxidation;
thermal expansion;
thermal gradients;
repeated heating and cooling;
distortion;
insulation conditions;
heater proximity;
fan and bearing temperatures;
seal degradation;
contamination and particle generation.

Creep should be evaluated only when the combination of temperature, stress, and exposure time makes time-dependent deformation credible.

The temperature of the chamber air does not necessarily equal:

Heating-element temperature;
local wall temperature;
bearing temperature;
fastener temperature;
external shell temperature.

The design should therefore use component-specific temperature data.

Ethylene Oxide Sterilization

ISO 11135:2014 specifies requirements for the development, validation, and routine control of ethylene oxide sterilization processes.

Ethylene oxide systems are generally low-temperature systems compared with steam or dry heat.

The metallic-equipment assessment may involve:

Vacuum and pressure cycling;
chamber tightness;
gas containment;
humidity;
aeration;
cleaning;
seal compatibility;
condensate or water exposure;
residual control;
flammability-related equipment design.

It is inaccurate to assume that every metal in an EtO system needs an extreme corrosion-resistant nickel alloy.

The complete gas mixture, humidity, process additives, cleaning agents, and equipment design should be reviewed.

Vaporized Hydrogen Peroxide Sterilization

ISO 22441:2022 covers low-temperature vaporized hydrogen peroxide sterilization processes for medical devices.

VH₂O₂ is an oxidizing sterilant.

Material compatibility may depend on:

Concentration;
vapor distribution;
condensation;
moisture;
temperature;
exposure time;
cycle frequency;
surface treatment;
elastomers;
coatings;
lubricants;
sensors and electronics.

A material that tolerates one vaporized peroxide cycle does not automatically tolerate repeated cycles combined with aggressive cleaning.

“Hydrogen peroxide compatible” should therefore be supported by defined exposure conditions and acceptance criteria.

Other Low-Temperature and Chemical Processes

ISO 14937:2009 provides general requirements for characterizing sterilizing agents and developing, validating, and controlling sterilization processes.

Other systems may involve:

Low-temperature steam and formaldehyde;
liquid chemical sterilants;
specialized oxidizing agents;
combined sterilizing agents;
proprietary low-temperature processes.

The commercial name of a sterilant is not enough to select an alloy.

The project should obtain:

Complete chemical composition;
concentration;
water content;
pH;
oxidizing-reducing condition;
temperature;
pressure;
exposure time;
cleaning chemistry;
decomposition products;
credible contamination.

Separate the Sterilization Process from the Sterilizer

A sterilization-process standard does not replace a sterilizer-equipment standard.

ISO/TS 22421:2021 provides common requirements for sterilizers used for terminal sterilization of medical devices in health care facilities.

EN 285 large steam sterilizers specifies requirements and tests for large steam sterilizers primarily used in health care.

These standards help define equipment-level requirements.

Material procurement still needs separate control through:

Pressure-equipment rules;
equipment drawings;
material specifications;
welding requirements;
surface requirements;
inspection plans;
traceability.

Identify the Component Zone

A sterilizer should be divided into material-selection zones.

Pressure Chamber

The chamber and door may experience:

Internal pressure;
external pressure during vacuum;
thermal cycling;
repeated opening and closing;
welded joints;
nozzle loads;
gasket contact;
cleaning chemicals;
condensate.

The pressure chamber must be assessed as a pressure vessel, not merely as a corrosion-resistant container.

Jacket

A jacket may experience a different:

Pressure;
steam condition;
water chemistry;
temperature;
inspection access;
external environment

from the main chamber.

The chamber material should not automatically be copied to the jacket without review.

Internal Racks and Trays

Internal load carriers may require:

Corrosion resistance;
low particle generation;
drainage;
dimensional stability;
handling strength;
low mass;
cleanability.

They normally do not require implant-grade biocompatibility merely because they hold medical devices.

Relevant concerns are more likely to include:

Surface contamination;
corrosion products;
trapped water;
damaged welds;
sharp edges;
particle transfer.

Steam and Condensate Piping

Piping may experience:

Flow;
erosion;
condensate;
startup chemistry;
water hammer;
dead legs;
weld heat tint;
crevices;
external insulation.

The piping system may require a different material and surface specification from the chamber wall.

Valves and Pumps

Valve and pump components may require separate materials for:

Body;
stem;
seat;
spring;
bellows;
impeller;
shaft;
fasteners;
seals.

Corrosion resistance alone does not establish:

Seat wear;
galling resistance;
spring fatigue;
cavitation resistance;
sealing performance.

Fasteners

Fasteners can be vulnerable to:

Crevice corrosion;
galling;
loss of preload;
fatigue;
dissimilar-metal contact;
repeated maintenance;
cleaning residue.

A high-alloy fastener combined with a lower-alloy structure may also create galvanic or maintenance issues.

Sensors and Instrument Sheaths

Sensor sheaths may require:

Corrosion resistance;
pressure integrity;
thermal response;
dimensional stability;
electrical compatibility;
weldability;
cleanability.

The sensor tip and the instrument body may not need the same material.

Seal and Gasket Interfaces

The metal mating surface can influence:

Leakage;
seal wear;
cleaning;
crevice formation;
gasket compression;
particle generation.

The seal itself may be the life-limiting component even when the metal is highly corrosion resistant.

Define the Complete Operating Envelope

A useful materials inquiry should include more than the normal sterilization temperature.

Temperature

Record:

Minimum temperature;
normal exposure temperature;
maximum continuous temperature;
short-duration maximum;
cleaning temperature;
drying temperature;
local heating-element temperature;
wall temperature;
external temperature;
heating and cooling rate.

Pressure and Vacuum

Record:

Normal operating pressure;
maximum allowable pressure;
vacuum level;
pressure ramp;
depressurization rate;
number of cycles;
proof-test conditions;
external pressure case.

Chemistry

Record:

Sterilizing agent;
concentration;
humidity;
water quality;
chloride;
sulfate;
iron;
oxidizers;
reducing agents;
pH;
cleaning chemicals;
rinse-water quality;
possible product residues.

Time and Cycles

Record:

Exposure time;
cycle duration;
cycles per day;
expected equipment life;
startup and shutdown frequency;
idle and wet storage periods;
maintenance intervals.

Mechanical Conditions

Record:

Applied load;
vibration;
spring deflection;
valve actuation;
joint movement;
pressure fatigue;
thermal restraint;
wear;
cavitation;
flow velocity.

Why Heat Resistance Is Often Overemphasized

The phrase “heat-resistant alloy” may lead buyers directly toward nickel superalloys.

That can be misleading.

An alloy’s high-temperature capability may not be relevant when:

The operating temperature is far below the alloy’s high-temperature design range;
mechanical stress is modest;
exposure time is short;
the real problem is chloride pitting;
the component fails at a crevice;
cleaning residues control corrosion;
the weld surface is defective;
the seal fails before the metal.

The material should address the governing damage mechanism.

It should not be selected because its maximum temperature on a datasheet is much higher than required.

Identify the Credible Damage Mechanisms

General Corrosion

Uniform metal loss may be relevant in chemical processing sections.

Average corrosion rate should be combined with:

Required wall thickness;
design life;
inspection;
corrosion allowance;
contamination limits.

Pitting Corrosion

Pitting may occur where a passive metal is exposed to an aggressive local environment.

Potential contributors include:

Chloride;
elevated local temperature;
oxidizers;
stagnant condensate;
deposits;
poor surface condition;
weld heat tint.

A low average weight loss does not exclude a deep pit.

Crevice Corrosion

Potential crevices include:

Gasket contacts;
threaded connections;
lap joints;
incomplete welds;
deposits;
tube supports;
fastener interfaces;
seal grooves.

The environment inside the crevice may be more aggressive than the bulk condensate.

Stress Corrosion Cracking

SCC requires:

A susceptible material;
a specific environment;
tensile stress.

Tensile stress may come from:

Pressure;
welding;
cold forming;
machining;
bolting;
thermal restraint.

Austenitic stainless steels can require specific review where hot chloride-containing moisture and tensile stress coexist.

Pressure and Thermal Fatigue

Repeated sterilization cycles can produce:

Pressure fatigue;
thermal fatigue;
nozzle fatigue;
door and hinge fatigue;
weld-toe cracking;
spring fatigue;
bellows fatigue.

Static tensile strength does not establish cycle life.

Oxidation

Dry-heat components or heated zones may experience oxidation.

The evaluation should examine:

Temperature;
atmosphere;
cycle time;
scale adherence;
particle generation;
change in section thickness.

Erosion and Cavitation

Pumps, valves, nozzles, restrictions, and condensate systems may experience:

Flow-assisted wear;
droplet impingement;
flashing;
cavitation;
particle erosion.

A corrosion-resistant alloy may still suffer mechanical surface damage.

Galling

Stainless steels, nickel alloys, and titanium can experience adhesive wear at:

Threads;
valve stems;
fasteners;
sliding guides;
door mechanisms.

Material pairing, surface treatment, clearance, and lubrication may be as important as base-alloy strength.

Galvanic Corrosion

Dissimilar conductive materials may create galvanic effects when electrically connected through condensate or cleaning solution.

The evaluation should include:

Material pair;
area ratio;
electrolyte;
electrical contact;
exposure duration;
coating condition.

Corrosion Under Insulation

External moisture and contaminants may accumulate beneath insulation around:

Jackets;
piping;
heated shells;
drains.

An internally clean system can still suffer external corrosion.

Material-Family Screening

The following table is an initial screening tool, not an approval table.

Material Family	Potential Advantages	Important Limitations	Possible Component Context
304L stainless steel	Availability, fabrication, cost, general corrosion resistance	Lower localized-corrosion margin than Mo-bearing grades in some chloride conditions	External structures, dry zones, project-approved chambers and piping
316L stainless steel	Broad hygienic use, weldability, improved chloride resistance relative to 304L in many conditions	Can still pit, crevice corrode or suffer SCC under sufficiently aggressive conditions	Chambers, piping, racks and process-contact equipment where validated
Higher-alloy austenitic stainless steel	Increased localized-corrosion resistance in selected environments	Cost, availability, welding, code listing	More aggressive steam, condensate or cleaning chemistry
Duplex stainless steel	High strength and useful SCC/localized-corrosion resistance in selected services	Welding, phase balance, fabrication, temperature and code restrictions	Project-approved pressure or piping components
Alloy 625	Corrosion resistance, strength, spring and bellows capability, multiple product forms	Cost, machining, galling and unnecessary over-specification	Springs, bellows, fasteners or local components under justified severe conditions
Alloy C22 or C276 family	Broad resistance in selected mixed and aggressive chemicals	High cost, fabrication requirements, not automatically necessary for steam	Components exposed to severe chemical sterilants or cleaning media
Commercially pure titanium	Low density and resistance in selected oxidizing and chloride environments	Galling, crevice risks in some conditions, fluoride and reducing-media limitations	Lightweight or application-specific components
Ti-6Al-4V	High strength-to-weight ratio	Machining, wear, cost, no automatic need for implant standard	High-strength lightweight mechanisms where approved
Hardenable stainless steel	Hardness and wear capability	Lower corrosion resistance than austenitic grades in some conditions	Shafts, seats, latches and wear components
Nonmetallic materials	Sealability, chemical resistance, low friction	Temperature, aging, permeability, extractables and cleaning	Gaskets, seals, hoses, coatings and isolation components

304L and 316L Stainless Steel

304L

304L may be suitable where:

Chloride exposure is controlled;
the environment is relatively mild;
welding and fabrication are appropriate;
cleaning chemistry is compatible;
project standards permit its use.

It should not be rejected solely because steam is present.

316L

316L contains molybdenum and generally offers greater localized-corrosion resistance than 304L in many chloride-containing environments.

It should not be described as immune to:

Pitting;
crevice corrosion;
chloride SCC;
weld-related attack;
contamination;
rouge;
poor drainage.

The decision between 304L and 316L should be based on environment, design, code, cost, surface, cleaning and maintenance—not a universal hierarchy.

ASTM A240 stainless steel plate covers plate, sheet and strip for pressure vessels and general applications.

ASTM A269 stainless tubing covers seamless and welded austenitic stainless tubing for general service.

A material grade should be accompanied by the correct product standard.

Higher-Alloy Stainless and Duplex Grades

Higher-alloy austenitic or duplex stainless steels may be considered where 316L does not provide sufficient margin.

Potential benefits may include:

Higher strength;
improved pitting resistance;
improved crevice-corrosion resistance;
improved chloride SCC resistance under selected conditions.

The project should also examine:

Pressure-code acceptance;
welding procedure;
heat input;
filler metal;
phase balance;
forming;
heat treatment;
surface treatment;
temperature limits;
inspection.

A higher calculated pitting-resistance index does not by itself approve the alloy for the equipment.

Alloy 625

Alloy 625, UNS N06625, may be considered where a component needs a combination of:

Corrosion resistance;
strength;
spring performance;
bellows performance;
fabricability;
resistance to selected chloride environments.

Possible component examples include:

Springs;
bellows;
small fasteners;
flexible connections;
local nozzles;
severely exposed piping.

It should not automatically be selected for an entire steam sterilizer chamber.

ASTM B444 Alloy 625 pipe and tube and ASTM B446 Alloy 625 bar define different product forms.

They do not prove sterilizer compatibility.

Ni-Cr-Mo Alloys

Alloys such as UNS N10276 and N06022 may be candidates for severe mixed-chemical or oxidizing-reducing environments.

Potential strengths include:

Resistance to selected aggressive acids;
localized-corrosion resistance;
broad chemical-screening range.

Important limitations include:

High material cost;
fabrication requirements;
machining;
weld selection;
limited need in ordinary steam service;
lack of universal chemical immunity.

ASTM B575 Ni-Cr-Mo plate and ASTM B622 nickel alloy pipe and tube define product-delivery requirements.

The exact sterilant and cleaning media still require application review.

Titanium

Titanium may be considered where the service benefits from:

Low density;
resistance in selected oxidizing environments;
resistance in selected chloride media;
reduced magnetic response;
weight reduction.

Important limitations may include:

Galling;
sliding wear;
hot acidic crevices;
strongly reducing conditions;
fluoride-containing media;
hydrogen-related effects;
galvanic interaction;
pressure-code availability;
fabrication and repair.

Implant-specific Ti-6Al-4V ELI standards should not be required automatically for sterilization-equipment components.

The product standard should match the actual bar, tube, plate or fitting being purchased.

Nonmetallic Components Must Be Evaluated Separately

Metal selection does not determine the life of:

Gaskets;
O-rings;
valve seats;
hoses;
lubricants;
insulation;
coatings;
adhesives;
cable insulation.

Nonmetallic compatibility may depend on:

Temperature;
pressure;
vacuum;
sterilizing agent;
cleaning chemical;
swelling;
permeability;
compression set;
extractables;
repeated cycles.

A metal upgrade cannot compensate for an incompatible seal.

Pressure-Boundary Requirements

A sterilizer chamber may be governed by a national pressure-equipment regulation or code.

ASME BPVC Section VIII provides one recognized pressure-vessel framework.

The pressure-boundary package may need to address:

Permitted materials;
allowable stress;
design pressure;
design temperature;
external pressure;
fatigue;
weld design;
welding qualification;
NDT;
pressure testing;
overpressure protection;
certification;
records.

A more corrosion-resistant alloy is not acceptable if it is outside the approved construction basis.

Hygienic and Pharmaceutical Equipment

ASME BPE hygienic equipment requirements may be relevant to pharmaceutical or bioprocessing equipment with high hygienic requirements.

Important design topics can include:

Drainability;
dead legs;
process-contact surfaces;
weld quality;
documentation;
passivation;
inspection;
cleanability.

A polished alloy surface is not enough if the system contains:

Undrainable pockets;
incomplete weld penetration;
trapped condensate;
difficult-to-clean threads;
poor gasket geometry.

Welding Can Control Corrosion Performance

A welded assembly includes:

Base metal;
weld metal;
heat-affected zone;
oxide;
heat tint;
residual stress;
weld geometry.

Relevant welding controls may include:

WPS and PQR;
filler metal;
purge quality;
heat input;
interpass temperature;
weld profile;
oxide removal;
pickling;
passivation;
NDT;
repair procedures.

A corrosion result obtained from polished base metal should not automatically be applied to an as-welded sterilizer chamber.

Heat Tint and Surface Contamination

Welding and fabrication can produce:

Heat tint;
oxide scale;
embedded iron;
grinding contamination;
scratches;
inclusions;
rough weld transitions.

These conditions can reduce localized-corrosion resistance and complicate cleaning.

The purchase specification should define:

Permitted surface condition;
oxide-removal method;
cleaning;
passivation;
inspection;
acceptance criteria.

Passivation

Passivation treatments can help remove free iron and support formation of an appropriate passive surface on stainless steel.

Passivation does not:

Repair deep scratches;
eliminate crevices;
correct an unsuitable alloy;
remove every weld defect;
guarantee indefinite corrosion resistance.

The method should be compatible with the material, equipment and final cleaning requirements.

Electropolishing

Electropolishing may:

Smooth selected microscopic surface features;
remove a controlled surface layer;
improve cleanability;
support a uniform passive surface.

It should not be described as a universal cure for:

Wrong alloy;
poor welds;
deep defects;
trapped condensate;
unsuitable water chemistry;
bad gasket design.

The project should define:

Starting surface;
required final roughness;
material removal;
inspection;
cleaning;
acceptance.

Surface Roughness Must Be Functional

Different surfaces may require different finishes.

Chamber Interior

Possible priorities:

Cleanability;
drainage;
inspection;
resistance to contamination;
appearance.

Gasket Surface

Possible priorities:

Sealability;
flatness;
controlled roughness;
absence of scratches.

Sliding Surface

Possible priorities:

Friction;
wear;
lubrication retention;
galling resistance.

Heat-Transfer Surface

Possible priorities:

Heat transfer;
fouling;
cleaning;
corrosion.

“Mirror finish” is not a complete engineering specification.

The measurement method, location, direction and acceptance value should be stated.

Water and Steam Quality Matter

Steam and condensate are not chemically identical in every sterilizer.

Possible contributors to corrosion include:

Feedwater;
boiler treatment;
chloride;
sulfate;
silica;
iron;
copper;
cleaning residues;
product contamination;
non-condensable gases;
carryover.

Evaporation and drying can concentrate residues at:

Chamber floors;
drains;
racks;
gasket edges;
heated surfaces.

The materials review should use measured chemistry and credible maximum conditions.

Cleaning May Be More Aggressive Than the Sterilization Cycle

Cleaning agents may be:

Acidic;
alkaline;
oxidizing;
chloride-containing;
chelating;
surfactant-based.

The relevant variables include:

Concentration;
temperature;
contact time;
rinse quality;
drying;
frequency;
mixing accuracy.

A steam-resistant alloy may still be damaged by an incompatible cleaner or by improperly concentrated residue.

Wet–Dry Cycling

Repeated wetting and drying may concentrate salts as water evaporates.

Potential concentration areas include:

Drains;
horizontal surfaces;
gasket edges;
insulation penetrations;
crevices;
threads;
dead legs.

Bulk feedwater analysis may not represent the final local concentration.

Design Can Be More Important Than a Small Alloy Upgrade

Useful corrosion-control design measures may include:

Complete drainage;
reduced dead legs;
accessible inspection;
avoidance of unnecessary crevices;
suitable gasket geometry;
controlled dissimilar-metal contact;
smooth weld transitions;
prevention of condensate traps;
adequate flushing;
isolation from chloride-contaminated insulation.

Changing from one alloy to a slightly higher alloy may not control a poorly designed crevice.

Testing Strategy

Step 1: Review Standards and Existing Data

Review:

Equipment standard;
pressure code;
product standard;
corrosion data;
previous service;
water and chemical data.

Step 2: Define the Worst Credible Conditions

Do not combine every independent maximum into an impossible condition.

Define credible combinations involving:

Maximum chemical concentration;
maximum wall temperature;
stagnant condition;
cleaning residue;
wet–dry cycle;
pressure;
stress;
local crevice.

Step 3: Conduct Application-Specific Immersion Testing

ASTM G31 immersion corrosion testing provides guidance for laboratory immersion tests.

The test should document:

Alloy and heat;
specimen condition;
welded or unwelded state;
surface preparation;
solution composition;
temperature;
gas atmosphere;
flow or agitation;
duration;
cleaning;
mass loss;
visual observations.

G31 does not by itself evaluate all localized corrosion, cracking or flow effects.

Step 4: Evaluate Localized Corrosion

Where pitting or crevice corrosion is credible, use a method selected for that mechanism.

A standardized chloride test may help compare materials.

It should not be presented as an exact simulation of steam condensate or equipment life.

Step 5: Include Welded Specimens

Representative specimens may include:

Base metal;
production weld;
HAZ;
intended filler metal;
actual oxide-removal process;
final surface.

Step 6: Simulate Cyclic Exposure

Where relevant, include:

Heating and cooling;
pressure and vacuum;
wetting and drying;
sterilant exposure;
cleaning;
rinsing;
drying;
mechanical actuation.

Step 7: Perform Component Testing

Depending on the component, test:

Pressure integrity;
fatigue;
spring life;
bellows life;
valve actuation;
leakage;
seal wear;
galling;
dimensional stability.

Step 8: Establish Inspection and Monitoring

Possible controls include:

Visual inspection;
surface inspection;
thickness monitoring;
PT;
UT;
leak testing;
condensate chemistry;
corrosion coupons;
planned replacement;
weld inspection.

What a Corrosion Report Should Contain

A useful report should identify:

Alloy;
UNS designation;
product form;
heat number;
heat treatment;
surface condition;
welded condition;
specimen dimensions;
sterilant;
cleaning agent;
concentration;
water quality;
temperature;
pressure;
oxygen condition;
exposure time;
number of cycles;
crevice condition;
flow;
mass loss;
pit depth;
crack observations;
photographs;
acceptance criteria;
deviations.

“Passed sterilization corrosion test” is not sufficient.

Product Standards Do Not Establish Service Suitability

A product standard may define:

Chemistry;
mechanical properties;
heat treatment;
dimensions;
tests;
marking.

It does not normally establish:

Sterilization-process compatibility;
corrosion life;
pressure-vessel design;
fatigue life;
cleanability;
sterilization effectiveness;
regulatory approval.

The equipment design team must connect the product standard to the application.

What an MTR Can Prove

An MTR may provide:

Alloy or grade;
heat number;
chemical composition;
mechanical properties;
heat-treatment condition;
product standard;
selected tests.

It does not normally prove:

Resistance to the actual sterilizing agent;
welded-component behavior;
point-corrosion resistance;
cyclic fatigue;
cleanability;
sterilization efficacy;
service life;
finished-equipment compliance.

The MTR should be compared line by line with the purchase order.

EN 10204 Inspection Documents

BS EN 10204 inspection documents defines metallic-product inspection-document types.

An EN 10204 3.1 document can support batch-specific conformity evidence.

It does not establish:

Pressure-vessel certification;
EN 285 compliance;
ISO 17665 process validation;
corrosion life;
final equipment approval.

ISO 9001 Is a Quality-System Standard

ISO 9001 concerns an organization’s quality management system.

It may support evaluation of:

Process control;
documented information;
corrective action;
supplier control;
internal audit.

It does not prove that a particular heat of alloy is suitable for a sterilizer.

Laboratory Scope Must Match the Test

ISO/IEC 17025 addresses testing and calibration laboratory competence.

Buyers should verify:

Laboratory name;
address;
accreditation body;
certificate validity;
exact test method;
scope;
sample traceability;
report approval.

A laboratory accredited for chemical analysis may not be accredited for:

Corrosion;
fatigue;
metallography;
pressure testing;
UT;
surface measurement.

Supplier Evaluation Questions

Application Understanding

Does the supplier know the sterilization method?
Has the complete chemical exposure been provided?
Is the component pressure-retaining?
Does the supplier distinguish chamber, piping, spring, fastener and rack requirements?
Are application limitations stated?

Product Definition

What exact alloy and UNS designation are offered?
What product standard applies?
What revision applies?
Is the product plate, pipe, tube, bar or forging?
What delivery condition is supplied?

Manufacturing

Who is the original mill?
Where is melting performed?
Where is conversion performed?
Where is heat treatment performed?
Which operations are subcontracted?
Can the same source and route be repeated?

Testing

Which tests are required by the product standard?
Which tests are additional?
What is the sampling frequency?
Are corrosion tests application-relevant?
Are welded specimens available?
Is the laboratory scope appropriate?
Are acceptance criteria defined?

Traceability

Is the original mill MTR available?
Can every cut piece be linked to the heat?
How are mixed heats prevented?
How are markings transferred?
How long are records retained?

Surface and Packaging

What surface condition is delivered?
Is pickling, passivation or electropolishing performed?
What roughness is guaranteed?
How is roughness measured?
Is clean packaging available?
How is ferrous contamination controlled?

Quality and Change Control

What QMS covers the actual facility?
How are nonconformities controlled?
Which changes require notification?
Can the original mill be changed without approval?
How are deviations documented?
Who issues final conformity documents?

Risk-Based Procurement Levels

Component Category	Main Risks	Possible Evidence
External non-pressure structure	Environment, appearance, basic strength	Product certificate and dimensions
Internal rack or tray	Corrosion, drainage, particles, handling	MTR, surface, dimensions and weld inspection
Steam or condensate piping	Corrosion, welds, pressure, dead legs	Code material, MTR, weld control and NDT
Valve or pump component	Wear, galling, corrosion, fatigue	Material data, component tests and inspection
Spring or bellows	Fatigue, corrosion, dimensional stability	Heat traceability, mechanical and cycle testing
Chamber pressure boundary	Pressure, vacuum, fatigue, corrosion	Pressure-code design, approved material and full manufacturing records
Severe chemical-exposure part	General and localized corrosion	Application testing and restricted substitution
Pharmaceutical process-contact surface	Cleanability, surface, particles, corrosion	Hygienic design, weld and surface documentation

Practical Selection Workflow

Step 1: Identify the Sterilization Method

Select:

Moist heat;
dry heat;
EtO;
VH₂O₂;
another chemical process.

Step 2: Identify the Component

Define:

Chamber;
door;
jacket;
piping;
valve;
pump;
rack;
fastener;
spring;
bellows;
sensor sheath;
seal interface.

Step 3: Define the Exposure

Record:

Temperature;
pressure;
vacuum;
chemistry;
water;
cleaning;
wet–dry cycling;
number of cycles.

Step 4: Identify Damage Mechanisms

Evaluate:

General corrosion;
pitting;
crevice corrosion;
SCC;
fatigue;
oxidation;
erosion;
galling;
galvanic corrosion;
CUI.

Step 5: Compare Material Systems

Compare:

304L;
316L;
higher-alloy stainless;
duplex;
nickel alloys;
titanium;
hardened alloys;
nonmetallic materials.

Step 6: Confirm Code and Product Form

Define:

Pressure code;
equipment standard;
alloy;
UNS;
plate, tube, pipe, bar or forging standard;
revision;
heat treatment.

Step 7: Control Fabrication

Specify:

Welding;
filler;
heat tint;
surface;
passivation;
electropolishing;
NDT;
cleaning.

Step 8: Test the Governing Risks

Use:

Application-specific corrosion testing;
welded coupons;
cyclic exposure;
pressure testing;
component fatigue;
leak testing;
seal testing.

Step 9: Verify Supplier Evidence

Review:

Original mill;
MTR;
traceability;
test reports;
QMS scope;
laboratory scope;
source-change control.

Step 10: Establish Lifecycle Monitoring

Plan:

Inspection;
chemistry monitoring;
maintenance;
repair;
replacement;
record retention.

Common Mistakes in Sterilization-Equipment Alloy Selection

1. Treating Every Sterilizer as a High-Temperature Application

Steam, dry heat, EtO and VH₂O₂ have different temperature and chemical profiles.

2. Selecting Nickel Superalloys from Temperature Rating Alone

The governing risk may be chloride pitting, a crevice, weld quality or seal degradation.

3. Assuming 316L Is Always Required

304L may be suitable for some conditions, while 316L may be insufficient for others.

4. Assuming 316L Is Immune to Steam Corrosion

Steam quality, chlorides, condensate, surface and stress still matter.

5. Recommending Alloy 625 for the Entire Chamber

Its cost and high-temperature capability may not address the actual failure mechanism.

6. Recommending C276 Without the Chemical Composition

“Chemical sterilant” is not a complete corrosion environment.

7. Using Implant-Grade Titanium for Non-Implant Equipment

Implant standards may add cost without creating relevant equipment evidence.

8. Ignoring Pressure-Code Requirements

A corrosion-resistant alloy is not automatically permitted for the pressure boundary.

9. Ignoring Vacuum

External-pressure instability can be important during vacuum stages.

10. Ignoring Cleaning Agents

Cleaning may be more aggressive than the sterilization exposure.

11. Evaluating Only Bulk Water Chemistry

Evaporation, crevices and deposits can create a different local environment.

12. Ignoring Weld Heat Tint

A polished plate coupon may not represent an as-welded chamber.

13. Assuming Electropolishing Solves Material Problems

It cannot correct a wrong alloy, deep defect or undrainable design.

14. Specifying a Universal Roughness

Different functional areas may need different surface conditions.

15. Treating Corrosion Rate as the Complete Answer

Localized corrosion, SCC and fatigue require different evidence.

16. Treating ASTM G31 as a Service-Life Test

It is a laboratory immersion guide with defined limitations.

17. Treating the MTR as an Application Certificate

The MTR proves only the information it reports.

18. Treating EN 10204 3.1 as Equipment Certification

It is a material inspection document.

19. Treating ISO 9001 as Product Approval

It is an organizational quality-system standard.

20. Ignoring Seals and Nonmetallic Components

The seal may fail before the metal.

21. Ignoring Galvanic Interfaces

Local dissimilar-metal contact can change corrosion behavior.

22. Allowing Unapproved Material Substitutions

The same commercial description may not have the same code or corrosion basis.

23. Selecting the Most Expensive Alloy

Higher cost does not guarantee control of the governing risk.

RFQ Checklist for Sterilization-Equipment Alloy Components

Before requesting a quotation, define:

Sterilization method;
equipment type;
equipment standard;
component name;
pressure-retaining status;
applicable pressure code;
code edition;
design life;
number of cycles;
sterilizing agent;
agent concentration;
humidity;
water content;
feedwater quality;
condensate chemistry;
chloride;
pH;
oxidizing species;
reducing species;
cleaning agent;
cleaning concentration;
rinse-water quality;
normal temperature;
maximum temperature;
wall temperature;
cleaning temperature;
drying temperature;
normal pressure;
design pressure;
vacuum level;
pressure ramp;
depressurization rate;
thermal ramp;
wet–dry cycling;
stagnant condition;
flow velocity;
vibration;
actuation cycles;
fatigue requirement;
wear requirement;
galling concern;
crevice locations;
insulation;
internal or external exposure;
proposed alloy;
UNS designation;
product form;
ASTM, ASME or EN standard;
standard revision;
heat-treatment condition;
corrosion allowance;
surface condition;
roughness;
roughness measurement method;
welding process;
filler metal;
heat-tint acceptance;
passivation;
electropolishing;
dimensional requirements;
PMI;
UT;
ET;
PT;
RT;
pressure test;
leak test;
corrosion test;
cyclic test;
acceptance criteria;
original mill MTR;
Certificate of Conformance;
EN 10204 document type;
heat-to-piece traceability;
laboratory accreditation requirement;
third-party inspection;
QMS requirement;
source-change notification;
process-change notification;
deviation approval;
packaging;
preservation;
final dossier;
record-retention period.

Frequently Asked Questions

Is 316L always the best material for steam sterilizers?

No. It is widely used because of its fabrication and corrosion characteristics, but suitability depends on water chemistry, chlorides, temperature, pressure, welding, surface, design and maintenance.

Can 304L be used in sterilization equipment?

It may be suitable for selected chambers, external structures, dry zones or controlled environments. It should not be approved or rejected based only on the presence of steam.

When should Alloy 625 be considered?

It may be considered for components needing corrosion resistance combined with strength, spring performance or bellows capability. It is not automatically required for ordinary chamber construction.

Is C276 the best alloy for chemical sterilization?

No universal best alloy exists. Exact sterilant composition, water content, pH, temperature, oxidizing-reducing condition, crevices and cleaning media must be defined.

Is titanium necessary for surfaces that touch sterilized medical devices?

Not generally. Cleanability, corrosion products, particles, drainage and contamination control may matter more than implant-grade biocompatibility.

Does an ASTM material standard prove sterilizer compatibility?

No. It defines product-delivery requirements. Equipment compatibility requires separate application and design evaluation.

Does an MTR prove corrosion resistance?

It normally proves specified chemistry, mechanical properties, heat treatment and traceability. It does not usually include application-specific corrosion evidence.

Does electropolishing prevent all corrosion?

No. It may improve selected surface characteristics but cannot correct unsuitable alloy selection, poor welds, crevices or contaminated water.

Is creep important in steam sterilizers?

It depends on actual metal temperature, stress and time. For many moist-heat sterilizer components, pressure and thermal fatigue, corrosion, weld quality and cyclic operation are more relevant.

Should the same alloy be used for the chamber, racks and fasteners?

Not necessarily. Each component has different pressure, mechanical, corrosion, surface and maintenance requirements.

Who should approve the final material?

Final approval should involve the equipment designer, pressure-equipment engineer, materials or corrosion engineer, sterilization-process specialist, quality team, manufacturer and regulatory or inspection authority where applicable.

Conclusion

Selecting heat- and corrosion-resistant alloys for sterilization equipment components requires more than comparing temperature ratings and corrosion tables.

A defensible decision must connect:

Sterilization method;
equipment standard;
pressure-code requirements;
component function;
sterilizing agent;
water and steam quality;
cleaning chemicals;
temperature and pressure cycles;
vacuum;
pitting and crevice corrosion;
SCC;
fatigue;
oxidation;
wear and galling;
alloy and product form;
welding;
surface treatment;
drainage and hygienic design;
inspection;
traceability;
supplier evidence;
lifecycle monitoring.

Stainless steel remains the appropriate baseline for many sterilization-equipment applications.

Higher-alloy stainless steels, duplex grades, nickel alloys and titanium may provide useful alternatives where a defined corrosion, strength, weight or component requirement justifies them.

The goal is not to specify the most expensive or highest-temperature alloy.

The goal is to establish a controlled material, design, fabrication, testing and maintenance strategy that matches the complete sterilization environment and provides verifiable evidence throughout the equipment lifecycle.
