How Alloy Materials Support Etching and Cleaning Chemical Delivery Systems
Etching and cleaning chemical delivery systems often operate in demanding environments. Chemicals, concentration, temperature, pressure, flow condition, contamination sensitivity, and documentation requirements can all affect material selection.
For some high-purity chemical delivery areas, non-metallic materials may be preferred for direct chemical contact. In other sections, alloy tubes, bars, and machined components may be considered for compatible piping, heat exchange, structural support, frames, fittings, utility lines, drain-related parts, or pressure-containing components.

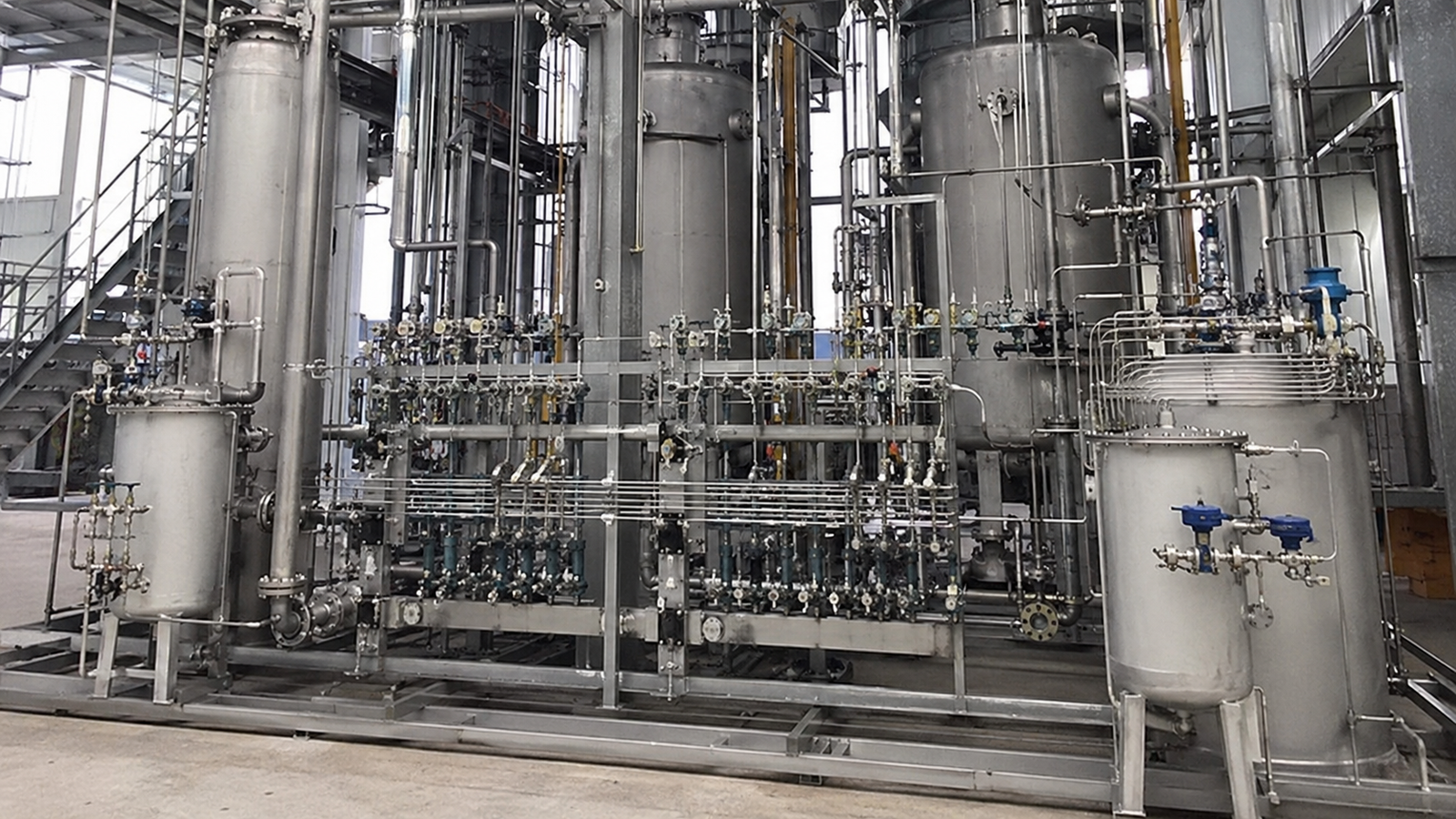

![Alloy materials for chemical delivery systems](https://emilypipe.com/wp-content/uploads/2026/07/Hastelloy-C276-tube29.png")
The key point is simple: alloy selection should not start with a general material name. It should start with the actual process conditions and the risk level of the system.
Why Are Alloy Specification Charts Not Enough?
Alloy specification charts and corrosion resistance tables can be useful starting points, but they should not be treated as complete proof of suitability.
Many charts are based on defined test environments. A real chemical delivery system may involve concentration changes, temperature cycling, flow velocity, mixed chemicals, impurities, by-products, crevices, welds, pressure, or cleaning procedures. These variables can change how a material behaves.
ISO 21457 identifies corrosion mechanisms and parameters for evaluation when selecting materials for piping and equipment. AMPP also notes that no material is resistant to all corrosive situations and that material selection is critical to preventing many types of failures. AMPP material selection factors
Dynamic Factors That May Affect Alloy Performance
| Factor | Why It Matters |
|---|---|
| Chemical concentration | A material may behave differently at low and high concentration. |
| Temperature | Higher temperature can change corrosion behavior and mechanical performance. |
| Flow rate | High velocity may increase erosion-corrosion or surface wear. |
| Impurities | Trace elements, contaminants, or by-products may change chemical aggressiveness. |
| Mixed chemistry | A material suitable for one chemical may not be suitable for a mixture. |
| Crevices and welds | Localized corrosion may occur at gaskets, joints, deposits, or heat-affected zones. |
| Pressure and vibration | Mechanical stress can interact with corrosion or fatigue. |
| Cleaning cycles | Repeated cleaning, rinsing, or drying may affect surface condition over time. |
This is why a buyer should not ask only, “Is this alloy corrosion resistant?” A more useful question is, “Is this alloy suitable for this exact chemical environment, temperature, concentration, flow condition, surface requirement, and service life expectation?”
Is There a Universal Best Alloy for Chemical Delivery Systems?
There is no universal “best” alloy for all etching and cleaning chemical delivery systems.
Different applications may involve different chemicals, purity requirements, temperatures, pressures, cleaning methods, and service expectations. A material that performs well in one system may be unsuitable in another.
SEMI Liquid Chemicals standards cover technical needs related to liquid chemicals and liquid chemical distribution, including analytical methods, materials used to contain and transport liquid chemicals, contamination-related issues, chemical distribution systems, and component performance. This supports the idea that material selection should be reviewed as part of the whole chemical delivery environment.
Different Systems May Need Different Material Thinking
| Application Area | Typical Selection Focus |
|---|---|
| Semiconductor etching or cleaning | Chemical compatibility, contamination control, surface finish, documentation, cleanliness |
| Industrial chemical cleaning | Corrosion resistance, mechanical strength, cost, maintainability, replacement schedule |
| Heat exchange in chemical systems | Corrosion resistance, thermal performance, pressure, tube standard, cleanliness |
| Utility or drain-related sections | Chemical compatibility, mechanical durability, fabrication, inspection requirements |
| Structural frames or supports | Strength, corrosion exposure, surface protection, cleanability |
| Machined bars or custom parts | Grade, dimensional tolerance, surface finish, fabrication and assembly requirements |
For semiconductor-related systems, contamination can be a critical issue. SEMI notes that controlling particle contamination on processing equipment components has become an important quality requirement for users of processing equipment. SEMI particle contamination control
This does not mean every semiconductor chemical delivery part must use an alloy. It means the material, surface condition, cleaning method, and documentation should match the actual system location and contamination sensitivity.
Which Alloy Materials May Be Considered?
Material choice should always be verified against the exact chemical environment. The following examples are general starting points, not universal recommendations.
Common Material Families for Review
| Material Family | Possible Use Consideration | Important Caution |
|---|---|---|
| Titanium Grade 2 / Grade 7 | May be considered for some oxidizing or chloride-containing environments | Must be checked carefully in fluoride-containing, reducing, or mixed acid conditions |
| Nickel-chromium-molybdenum alloys, such as C-276 or C-22 | May be considered for certain aggressive mixed acid or reducing acid conditions | Performance depends on exact chemistry, temperature, impurities, welds, and surface condition |
| Alloy 625 and other nickel alloys | May be considered where corrosion resistance and mechanical strength are both needed | Should be verified against the chemical environment and product standard |
| Nickel 200 / Nickel 201 | May be considered for certain alkaline or specific chemical environments | Not suitable for all acids or high-purity chemical contact areas |
| 316L stainless steel | May be used in some compatible low-risk utility, structural, or support areas | Not suitable for many aggressive chemical delivery conditions |
| Non-metallic materials | Often considered for high-purity direct chemical contact areas | May have limits in pressure, temperature, mechanical strength, or installation method |
For titanium alloy tubes, ASTM B338 covers seamless and welded titanium alloy tubes for condensers, evaporators, and heat exchangers. For nickel alloy seamless pipe and tube, ASTM B622 covers seamless nickel and nickel-cobalt alloy pipe and tube and includes testing requirements such as tension, hydrostatic, and nondestructive electric tests. For low-carbon nickel-chromium-molybdenum alloys used in general corrosive service, ASTM B575 covers plate, sheet, and strip forms.
Product standards help define material requirements, but they do not replace process-specific chemical compatibility review.
How Should Buyers Evaluate Supplier Claims?
Supplier claims should be supported by batch-specific documents, inspection records, and clear communication. A product brochure or typical data sheet can help with early review, but it is not the same as a material test report for the actual material being supplied.
Questions to Ask the Supplier
| Area | Practical Questions |
|---|---|
| Material grade | What exact grade, UNS number, and product standard will be supplied? |
| Chemical compatibility | Is there relevant corrosion data or application experience for similar chemistry? |
| Heat traceability | Can the material be traced to a heat number or batch number? |
| MTR / MTC | Does the report show chemical composition, mechanical properties, standard, and heat number? |
| Certificate type | Is EN 10204 3.1, 3.2, or another inspection document required? |
| Surface condition | What surface finish, cleaning, passivation, or packaging is available? |
| Testing | Are PMI, dimensional inspection, NDT, hydrostatic test, or third-party inspection required? |
| Manufacturing route | Is the material seamless, welded, cold-finished, hot-finished, forged, rolled, or machined? |
| Quality system | Does the supplier have a relevant quality management system? |
| Technical support | Can the supplier review drawings, tolerances, and application requirements before quoting? |
BS EN 10204 is used for inspection documents that authenticate materials. BSI notes that manufacturers are often expected to prove that products meet required chemical and mechanical properties.
ISO 9001 can support a supplier’s quality management system, but it does not replace batch-specific documents. ISO 9001 in the supply chain explains that buyers should clearly define their needs and expectations, including product specifications, drawings, standards, and other requirements.
If laboratory testing is important for a project decision, ISO/IEC 17025 specifies general requirements for laboratory competence, impartiality, and consistent operation.
Does Alloy Choice Affect More Than System Performance?
Alloy choice can affect more than corrosion resistance. It may also influence maintenance planning, contamination control, inspection approval, packaging, delivery, safety risk, and total cost.
A lower purchase price may not reduce total cost if the material causes rework, qualification delays, premature replacement, cleaning problems, or documentation issues.
Broader Impacts of Material Selection
| Impact Area | What Buyers Should Consider |
|---|---|
| System reliability | Will the material maintain integrity under the real chemical and temperature conditions? |
| Maintenance | Will corrosion, surface damage, or contamination increase inspection and replacement frequency? |
| Process cleanliness | Could the material surface, corrosion products, or particles affect the process? |
| Documentation approval | Can the material pass incoming inspection and project documentation review? |
| Safety risk | Could leakage or degradation expose operators to hazardous chemicals? |
| Packaging and transport | Is the material protected from damage, contamination, or mix-up during shipment? |
| Replacement planning | Is the same grade and size available for future maintenance or repeat orders? |
| Total cost | Have testing, cleaning, packaging, downtime, rework, and replacement risks been considered? |
The NIST Life Cycle Cost Manual provides a general framework for understanding life-cycle cost methodology. Although it is not written specifically for alloy procurement, the idea is useful: buyers should consider not only purchase price, but also future cost, maintenance, replacement, and performance risk.
Packaging should also be treated as part of delivery quality. ASTM D4169 provides a guide for evaluating shipping units using established test methods. Not every alloy shipment requires ASTM D4169 testing, but the principle is helpful when material surface condition, cleanliness, or damage prevention matters.
Practical Checklist Before Selecting Alloy Materials
Before selecting alloy materials for etching and cleaning chemical delivery systems, buyers can review the following checklist:
- Where will the material be used in the chemical delivery system?
- Will it directly contact chemicals, ultrapure water, cleaning fluids, drain flow, or only support the structure?
- What chemicals, concentrations, temperatures, pressures, and flow conditions are involved?
- Are oxidizers, fluorides, chlorides, strong acids, strong bases, solvents, or mixed chemistries present?
- Is metal the correct material for this location, or should non-metallic materials also be reviewed?
- What alloy grade and product standard are required?
- Is tube, pipe, bar, plate, fitting, or machined part required?
- Is seamless or welded tube acceptable for the application?
- What surface finish, cleaning, passivation, or packaging requirements are needed?
- Is heat number traceability required?
- What documents are needed: MTR, EN 10204 3.1, third-party inspection, PMI, NDT, or surface report?
- Can the supplier meet the required size, tolerance, length, surface condition, and delivery schedule?
- Has the material been reviewed against real process risks, not only general corrosion resistance?
- Has total cost been considered, including testing, cleaning, packaging, rework, downtime, and replacement risk?
Conclusion
Alloy materials can support etching and cleaning chemical delivery systems when they are selected for the right location, chemistry, and operating conditions.
The most reliable approach is not to search for one universal alloy. Buyers should first define the process chemistry, concentration, temperature, pressure, surface requirement, contamination sensitivity, documentation needs, and long-term maintenance expectations.
For nickel alloy and titanium alloy tubes, bars, and related materials, standards and data sheets are useful starting points. However, they should be connected to the real process environment and supported by clear supplier documents, traceability, testing, and communication.
When the system is sensitive to corrosion, contamination, or downtime, it is worth discussing the application environment, drawings, surface condition, inspection documents, and packaging requirements before confirming the order.
