How to Choose Heat Exchanger Tubes for Mining Acid Leaching
Choosing heat exchanger tubes for mining acid leaching systems is not a simple catalog selection. Mining leaching circuits may involve sulfuric acid, hydrochloric acid, mixed acids, chlorides, sulfates, metal ions, oxidizing or reducing conditions, slurry solids, high temperature, pressure, flow velocity, scaling, erosion, and demanding maintenance schedules.
A poor tube material choice may increase corrosion risk, leakage risk, unplanned maintenance, repair cost, production interruption risk, safety risk, or lifecycle cost. However, the solution is not simply to choose the most expensive alloy. Buyers should confirm the real acid chemistry, operating temperature, pressure, flow condition, heat exchanger design, product standard, testing scope, supplier documentation, and lifecycle risk before ordering.
Nickel Institute’s sulphuric acid alloy selection guide explains that sulphuric acid corrosion must be reviewed across concentration ranges and that contaminants can influence corrosivity: Alloy Selection for Service in Sulphuric Acid.

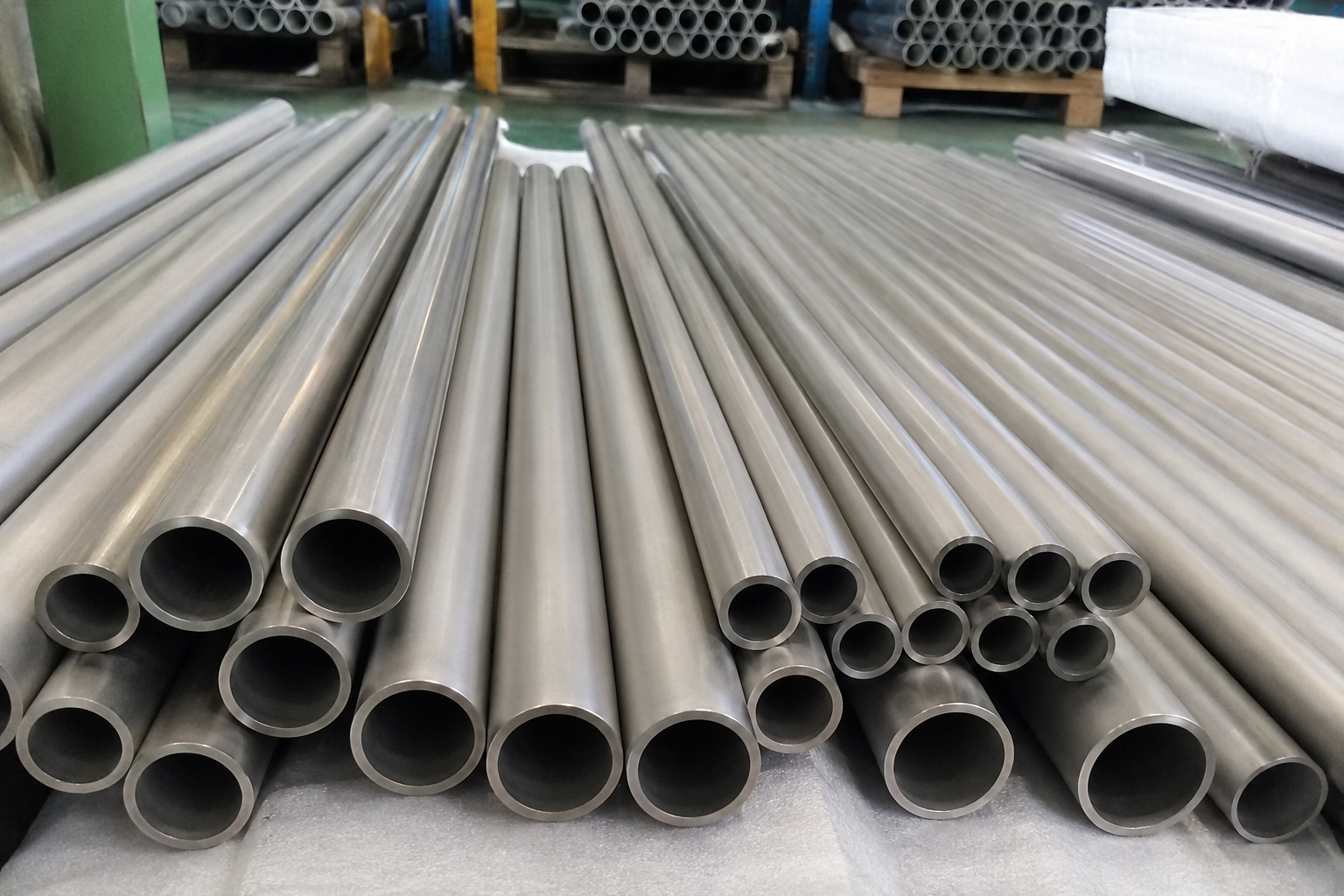

![heat exchanger tubes for mining acid leaching](https://emilypipe.com/wp-content/uploads/2026/07/Alloy-Tubes2.png")
For engineers and procurement teams, the key question is not “Which alloy is best for acid leaching?” The better question is “Which tube material is suitable for this acid type, this concentration, this temperature, this pressure, this chloride level, this slurry condition, this heat exchanger design, and this inspection requirement?”
Why “Context Over Catalog” Matters
“Acid service” is not enough information for material selection. Different acids behave differently, and the same acid can become much more aggressive when concentration, temperature, impurities, oxygen, chlorides, flow velocity, or pressure changes.
Buyers should confirm:
- Acid type
- Acid concentration
- Operating temperature
- Maximum temperature
- Operating pressure
- Chloride level
- Sulfate level
- Oxidizing or reducing condition
- Dissolved oxygen
- Metal ions such as Fe³⁺, Cu²⁺, Ni²⁺ or other species
- Solids and slurry content
- Flow velocity
- Erosion risk
- Scaling or deposition tendency
- Startup, shutdown and cleaning conditions
- Tube side and shell side media
- Heat exchanger design
- Required inspection and documentation
A material that performs well in one sulfuric acid system may not be suitable for another sulfuric acid system if concentration, temperature, chlorides or contaminants change.
Acid Type, Concentration and Temperature Control the Decision
Different acid leaching processes may expose heat exchanger tubes to very different corrosion mechanisms.
| Process Condition | Why It Matters |
|---|---|
| Dilute sulfuric acid | Material suitability depends strongly on temperature, velocity, oxidizing condition and contaminants |
| Concentrated sulfuric acid | Corrosion behavior can change significantly with concentration and temperature |
| Hydrochloric acid | Highly aggressive; nickel alloy selection often requires careful review |
| Mixed sulfate-chloride solutions | Chlorides may increase localized corrosion risk |
| Oxidizing acids | May favor different material behavior than reducing acids |
| Reducing acids | Titanium and some passive materials may require careful review |
| Acid with metal ions | Fe³⁺, Cu²⁺ and other ions may change corrosion potential and passivation behavior |
| Slurry acid leaching | Solids may create erosion-corrosion, deposits or localized attack |
| High pressure acid leaching | Temperature, pressure and chemistry may create severe material requirements |
Nickel Institute states that nickel and high-nickel alloys are among the few metallic materials resistant to hydrochloric acid solutions: Resistance of Nickel and High-Nickel Alloys to Hydrochloric Acid.
This does not mean one nickel alloy is always correct. It means hydrochloric acid service needs careful alloy selection and project-specific confirmation.
Common Material Families for Acid Leaching Heat Exchanger Tubes
The table below is only a starting point for discussion. It is not a final material selection chart.
| Material Family | Why Buyers May Consider It | Important Caution |
|---|---|---|
| 316L stainless steel | May be considered for mild, low-temperature, low-chloride conditions | Can be vulnerable to pitting, crevice corrosion or SCC in chloride, acidic or stressed conditions |
| Duplex / super duplex stainless steel | May be reviewed where higher strength and chloride resistance are needed | Acid concentration, temperature, weld condition, pH and project acceptance must be confirmed |
| Alloy 20 / Alloy 825 type alloys | May be reviewed for selected sulfuric acid or mixed acid services | Suitability depends on concentration, temperature, oxidizing / reducing condition and impurities |
| Alloy 625 | May be reviewed where strength and corrosion resistance are both needed | Not universal; service chemistry, temperature, fabrication and cost must be checked |
| Alloy C-276 / C-22 type alloys | May be reviewed for severe mixed acid, chloride-containing or reducing acid conditions | Grade selection, welding, availability and actual acid chemistry must be confirmed |
| Titanium Grade 2 / Grade 7 / Grade 12 | May be reviewed for selected oxidizing, chloride-containing or hydrometallurgical environments | Reducing acids, hydrogen absorption, fluorides, crevices and galvanic effects must be reviewed |
| Zirconium / tantalum / lined systems | May be reviewed for extremely severe acid service | Cost, availability, fabrication and project qualification can be limiting factors |
Nickel Institute describes Alloy C-276 as a well-known highly corrosion-resistant nickel alloy and notes its resistance to reducing acids such as hydrochloric and sulphuric acid: Nickel Alloys.
Material selection should still be confirmed against the actual leach solution, not only against the alloy name.
Titanium in Acid Leaching: Useful, but Not Universal
Titanium may be considered in selected hydrometallurgical and acid leaching applications, especially where its passive oxide film is stable. However, titanium is not a universal answer for every mining acid leaching heat exchanger.
TIMET’s titanium corrosion manual explains that titanium offers only moderate resistance to reducing acids such as hydrochloric, sulfuric and phosphoric acids, and that corrosion rates increase with increasing acid concentration and temperature: Corrosion Resistance of Titanium.
A study on Ti-2 and Ti-7 corrosion relevant to nickel acid leach chemistry examined commercially pure titanium and titanium-palladium alloy behavior across acid concentrations with and without chlorides: Corrosion of Ti-2 and Ti-7 Relevant to Nickel Acid Leach Chemistry.
For titanium tube selection, buyers should review:
- Acid type
- Reducing or oxidizing condition
- Chloride concentration
- Fluoride contamination
- Temperature
- Hydrogen absorption risk
- Crevice areas
- Galvanic coupling
- Slurry erosion
- Cleaning chemicals
- Grade requirement
- Welding / fabrication method
- Inspection scope
Titanium may be useful in some leaching-related systems, but its suitability must be verified by service chemistry and design conditions.
Why Specifications Alone Are Not Enough
A tube specification may define alloy grade, UNS number, chemical composition, mechanical properties, dimensions, tolerance, heat treatment, surface condition and testing requirements. These are essential, but they do not fully describe the real acid leaching environment.
Buyers should also review:
- Acid concentration changes during operation
- Temperature excursions
- Startup and shutdown chemistry
- Leach solution impurities
- Oxygen or oxidizer addition
- Chloride contamination
- Solids and slurry abrasion
- Flow velocity
- Deposition and scale
- Crevice areas at tube sheet joints
- Stress from tube expansion or welding
- Cleaning chemicals
- Maintenance access
- Inspection method
- Expected operating cycle
AMPP defines stress corrosion cracking as cracking caused by the combined influence of tensile stress and a corrosive environment: AMPP Stress Corrosion Cracking.
This is why strength and chemistry values on a datasheet must be interpreted together with stress, temperature and environment.
Surface Condition, Heat Treatment and Fabrication Matter
In acid leaching heat exchangers, the way the tube is manufactured and finished can affect reliability.
Important factors include:
- Heat treatment condition
- Cold work level
- Weld quality if welded tubes are used
- Surface finish
- Internal cleanliness
- Residual stress
- Tube straightness
- Wall thickness tolerance
- Inclusion control
- End preparation
- Tube-to-tube sheet expansion or welding
- Pickling or passivation if required
- Handling and packing protection
Incorrect heat treatment, rough surfaces, contamination, mechanical damage, residual stress or poor installation can reduce the practical corrosion margin of even a corrosion-resistant alloy.
Buyers should not only ask “What alloy is this?” They should also ask “How was this tube produced, inspected, documented and protected before installation?”
Pitting, Crevice Corrosion, SCC and Erosion-Corrosion
Acid leaching heat exchanger tubes may face several damage mechanisms at the same time.
| Mechanism | Why It Matters | What Buyers Should Check |
|---|---|---|
| General corrosion | Uniform wall loss may reduce tube life | Acid concentration, temperature, flow, inhibitors |
| Pitting corrosion | Small pits can become leakage points | Chlorides, oxidizers, surface condition |
| Crevice corrosion | Can occur at tube sheet joints, deposits and stagnant zones | Tube-to-tube sheet design, deposits, cleaning |
| Stress corrosion cracking | Cracking risk under tensile stress and corrosive conditions | Residual stress, welding, expansion, temperature |
| Intergranular corrosion | May occur if heat treatment or fabrication is unsuitable | Alloy condition, welding, ASTM G28 if specified |
| Erosion-corrosion | Slurry solids and high flow may damage protective films | Solids content, velocity, turbulence, inlet design |
| Under-deposit corrosion | Scale or solids may create localized chemistry | Scaling, cleaning frequency, dead zones |
| Galvanic corrosion | Dissimilar metals may interact in conductive acid systems | Tube, tube sheet, shell and piping materials |
| Hydrogen absorption | May affect titanium or other susceptible alloys under certain conditions | Reducing acids, cathodic conditions, acid chemistry |
ASTM G48 describes laboratory tests for comparing the resistance of stainless steels and related alloys to initiation of pitting and crevice corrosion under specific ferric chloride test conditions: ASTM G48.
ASTM G48 can be useful for comparison when specified, but it does not replace real acid leach chemistry review.
Important Tube Standards Buyers May Need to Confirm
When sourcing heat exchanger tubes for mining acid leaching systems, buyers should confirm the applicable product standard.
| Standard | Typical Scope | Common Relevance |
|---|---|---|
| ASTM B163 | Seamless nickel and nickel alloy tubes for condenser and heat-exchanger service | Nickel alloy heat exchanger tubes |
| ASTM B338 | Seamless and welded titanium alloy tubes for surface condensers, evaporators and heat exchangers | Titanium heat exchanger tubes |
| ASTM B622 | Seamless pipe and tube of nickel and nickel-cobalt alloys | C-276, C-22 and related nickel alloy tubes |
| ASTM B444 | UNS N06625 and related nickel alloy seamless pipe and tube | Alloy 625 pipe and tube |
| ASTM B829 | General requirements for nickel and nickel alloy seamless pipe and tube | General seamless nickel alloy tube requirements |
| ASTM G48 | Pitting and crevice corrosion comparison under ferric chloride conditions | Localized corrosion comparison when specified |
| EN 10204 | Metallic product inspection documents | MTC / inspection certificate requirements |
Useful references:
These standards help define product, test or documentation requirements. They do not prove that one alloy is suitable for every mining acid leaching heat exchanger.
How to Verify Supplier Claims
Supplier claims such as “acid resistant,” “suitable for leaching,” “high corrosion resistance,” “Hastelloy equivalent,” “titanium grade,” or “meets ASTM” should be verified with documents and application discussion.
Buyers should ask:
- Which alloy grade and UNS number are supplied?
- Which ASTM, ASME, EN, ISO or customer standard applies?
- Is the tube seamless or welded?
- What is the heat treatment condition?
- What acid chemistry was used for the recommendation?
- Are acid concentration, temperature and pressure considered?
- Are chlorides, oxidizers, reducers and metal ions considered?
- Are slurry solids, flow velocity and erosion-corrosion reviewed?
- Are pitting, crevice corrosion, SCC and intergranular corrosion reviewed?
- Can the supplier provide MTC / MTR for the actual heat number?
- Can the material be traced back to melt or batch?
- Are ECT, UT, hydrostatic test, dimensional inspection and surface inspection included?
- Can corrosion testing such as ASTM G48 or ASTM G28 be arranged if specified?
- Can third-party inspection be arranged if required?
- Can the supplier explain where the proposed alloy should not be used?
A reliable supplier should explain limitations, not only advantages.
What Documents Should Buyers Request?
For heat exchanger tubes used in mining acid leaching systems, buyers may request:
- Material Test Certificate / Mill Test Report
- EN 10204 Type 3.1 or Type 3.2 certificate if required
- Heat number or batch number traceability
- Chemical composition report
- Mechanical properties report
- Heat treatment record if required
- Dimensional inspection report
- Surface inspection report
- Eddy current testing report if required
- Ultrasonic testing report if required
- Hydrostatic or pneumatic test report if required
- PMI report if required
- ASTM G48 or G28 corrosion test report if specified
- Intergranular corrosion test report if specified
- Third-party inspection report if required
- Packing and marking records
EN 10204 defines inspection documents for metallic products. Type 3.1 is an inspection certificate in which the manufacturer declares that the products supplied comply with the order and provides test results: EN 10204 Inspection Documents.
Buyers should verify that the certificate matches the physical tubes: heat number, grade, standard, OD, wall thickness, length, test values, quantity, marking and purchase order.
Useful Testing and Inspection Methods
Testing requirements depend on product form, tube size, wall thickness, alloy grade, project standard and service risk.
| Test / Inspection | Purpose |
|---|---|
| Chemical analysis | Confirms alloy composition |
| Mechanical testing | Confirms tensile strength, yield strength, elongation or hardness if required |
| Dimensional inspection | Confirms OD, wall thickness, length, tolerance and straightness |
| Surface inspection | Checks scratches, pits, dents, cracks, scale or contamination |
| PMI testing | Helps verify alloy identity |
| Eddy current testing | Commonly used for heat exchanger tube inspection |
| Ultrasonic testing | Helps detect discontinuities in suitable products |
| Hydrostatic / pneumatic testing | Helps verify pressure integrity when required |
| ASTM G48 | May support pitting / crevice corrosion comparison when specified |
| ASTM G28 | May support intergranular corrosion evaluation when specified |
| Third-party inspection | Adds independent verification for critical orders |
ASNT explains that eddy current testing is commonly used to inspect the condition of heat exchanger tubes and detect wall-thickness changes or defects: ASNT Electromagnetic Testing.
ISO 9001 Is Useful, but Not Enough
ISO 9001 can support supplier evaluation, but it should not be treated as proof that a specific batch of tubes is suitable for a specific mining acid leaching heat exchanger.
ISO explains that ISO 9001 is a globally recognized standard for quality management and helps organizations establish, implement, maintain and continually improve a quality management system: ISO 9001 Quality Management Systems.
For acid leaching heat exchanger tubes, buyers should still verify:
- Alloy grade
- Product standard
- Heat number
- Chemical composition
- Mechanical properties
- Heat treatment condition
- Tube size and tolerance
- Surface condition
- Inspection reports
- MTC / MTR
- Acid chemistry compatibility
- Third-party inspection if required
Quality management certification is helpful, but batch-level material verification and service-condition review are still necessary.
Lifecycle Cost: Why Initial Price Is Not Enough
The lowest purchase price is not always the lowest lifecycle cost. In mining acid leaching systems, the real cost may include inspection, installation, corrosion monitoring, leakage risk, cleaning, shutdowns, emergency repair, replacement tubes, slurry handling, safety controls, environmental controls, spare parts and logistics.
NIST’s Life Cycle Cost Manual explains that lifecycle cost is the total cost of owning, operating, maintaining and disposing of a system over a given study period: NIST Life Cycle Cost Manual.
When comparing tube options, buyers should consider:
- Initial tube cost
- Alloy grade
- Product standard
- Testing and inspection cost
- Documentation requirement
- Acid chemistry
- Temperature and pressure
- Chloride and impurity risk
- Slurry erosion risk
- Cleaning and maintenance cost
- Leakage consequence
- Replacement difficulty
- Downtime risk
- Lead time
- Packing and shipping protection
- Spare tube strategy
- Failure consequence
A higher-cost alloy may be more economical in severe service if it reduces corrosion risk, leakage risk, inspection uncertainty or replacement frequency. A lower-cost material may be acceptable in mild service. The correct decision depends on actual risk and lifecycle cost.
Practical RFQ Checklist for Mining Acid Leaching Heat Exchanger Tubes
Before sending an inquiry, buyers can prepare the following information:
- Mining process: heap leach, atmospheric leach, pressure acid leach, solvent extraction support, electrowinning support or other
- Equipment type: shell-and-tube heat exchanger, cooler, heater, condenser, evaporator or custom unit
- Tube side medium
- Shell side medium
- Acid type: sulfuric, hydrochloric, nitric, phosphoric, mixed acid or other
- Acid concentration range
- Operating temperature and maximum temperature
- Operating pressure and design pressure
- Chloride level
- Sulfate level
- Oxidizing or reducing condition
- Dissolved oxygen or aeration condition
- Metal ions such as Fe³⁺, Cu²⁺, Ni²⁺, Co²⁺ or other species
- Slurry solids content
- Particle size and erosion risk
- Flow velocity and turbulence
- Scaling, deposits or crystallization risk
- Cleaning chemicals and cleaning frequency
- Heat exchanger design: straight tube, U-tube, tube sheet joint, welded or expanded joints
- Tube sheet material and galvanic compatibility
- Crevice areas, stagnant zones or dead legs
- Required alloy grade and UNS number if known
- Required standard: ASTM B163, B338, B622, B444, B829, ASME, EN or customer specification
- Seamless or welded tube requirement
- OD, wall thickness, length, tolerance and quantity
- Heat treatment condition
- Surface finish and internal cleanliness requirement
- Required testing: ECT, UT, hydrostatic, pneumatic, PMI, G48, G28, dimensional, surface inspection or third-party inspection
- Required certificate type: EN 10204 3.1 or 3.2
- Packing, end caps, marking and delivery requirement
A clear RFQ helps the supplier recommend a suitable heat exchanger tube instead of quoting a general “acid-resistant tube.”
Conclusion
Heat exchanger tube selection for mining acid leaching should be based on acid type, concentration, temperature, pressure, chlorides, impurities, slurry conditions, heat exchanger design, alloy grade, product standard, testing scope, supplier documentation and lifecycle cost.
