How to Choose Alloy Tubes for Geothermal Heat Exchangers
Selecting alloy tubes for geothermal heat exchangers is not about finding one universal “best” material. Geothermal systems may face hot brine, dissolved gases, chlorides, sulfides, carbon dioxide, scaling, pressure, flow velocity, and thermal cycling. The right tube material depends on the actual geothermal resource and system design.
A poor tube material choice may increase corrosion risk, scaling-related maintenance, leakage risk, retubing work, downtime, or replacement cost. However, the solution is not simply to choose the most expensive alloy. Buyers should confirm geothermal fluid chemistry, temperature, pressure, corrosion mechanism, scaling tendency, tube standard, inspection scope, and lifecycle risk before ordering.
A geothermal material selection paper notes that geothermal fluids may contain dissolved CO₂, H₂S, NH₃ and chloride ions that can cause corrosion of metallic materials: Corrosion and Material Selection for Geothermal Systems.

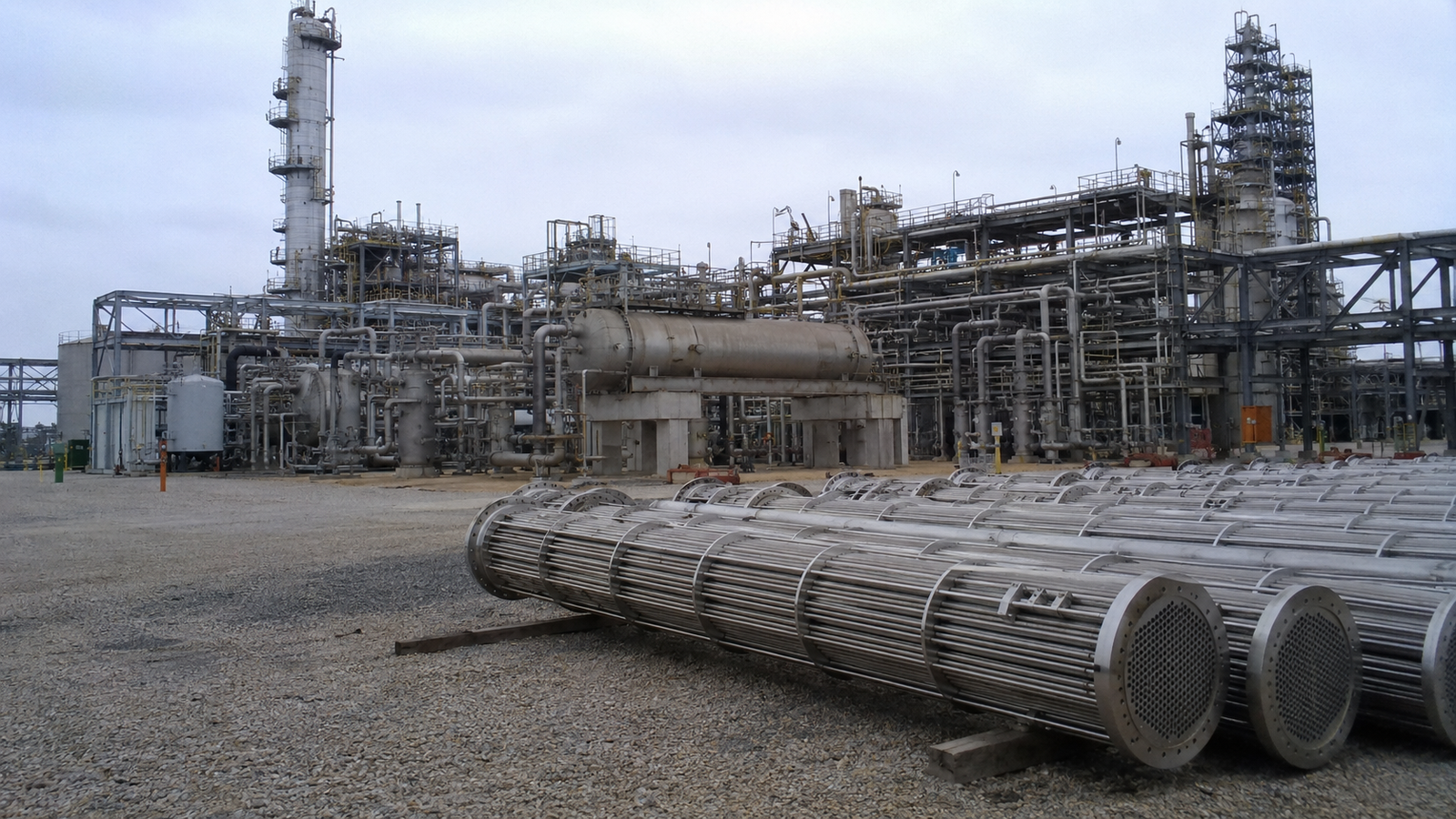

![alloy tubes for geothermal heat exchangers](https://emilypipe.com/wp-content/uploads/2026/07/Nickel-Alloy-Tubes1.png")
For engineers and procurement teams, the better question is not “Which alloy tube is best for geothermal?” The better question is “Which alloy tube is suitable for this geothermal brine, this temperature, this pressure, this scaling risk, and this heat exchanger design?”
Why Geothermal Heat Exchanger Tube Selection Is Different
Geothermal heat exchangers may operate with fluids that are very different from normal cooling water or standard chemical process media. The fluid chemistry may vary from one geothermal field to another, and even the same well may change over time due to operating conditions, reinjection strategy, gas separation, pressure changes, or scaling control.
A review on corrosion in geothermal environments explains that the corrosion rate of geothermal fluids is controlled by factors such as salinity, pH, temperature, fluid flow velocity, dissolved gases, and the formation of protective passive films: Corrosion in Geothermal Environment: Metals and Alloys.
This means material selection should be based on real site data, not only on general alloy specifications.
Common geothermal tube selection challenges include:
- Chloride-related pitting and crevice corrosion
- H₂S-related cracking risk in some environments
- CO₂-related corrosion behavior
- Low pH or acidic condensate
- Scaling and under-deposit corrosion
- Erosion-corrosion from high flow velocity or suspended solids
- Thermal cycling during startup and shutdown
- Tube sheet crevice areas
- Cleaning and descaling chemicals
- Inspection and maintenance access
Key Operating Variables to Confirm
Before selecting nickel alloy or titanium alloy tubes, buyers should define the real geothermal operating conditions.
| Variable | What to Confirm | Why It Matters |
|---|---|---|
| Fluid chemistry | Chlorides, sulfides, CO₂, H₂S, silica, calcium, magnesium, iron, ammonia, dissolved gases | Determines corrosion, scaling, and compatibility risk |
| pH range | Normal pH, minimum pH, acidic condensate risk | Affects general corrosion, passivity, and localized corrosion |
| Temperature | Inlet, outlet, maximum, minimum, startup / shutdown | Higher temperature may accelerate corrosion and scaling |
| Pressure | Operating pressure, design pressure, pressure cycling | Affects mechanical design and stress-related risk |
| Flow velocity | Tube-side velocity, turbulence, stagnant zones | Influences erosion-corrosion, fouling, heat transfer, and deposits |
| Scaling tendency | Silica, carbonate, sulfide, sulfate or other deposits | Can reduce heat transfer and create under-deposit corrosion |
| Dissolved gases | H₂S, CO₂, oxygen ingress, ammonia or other gases | May change corrosion mechanism and material compatibility |
| Solids / particles | Sand, scale particles, corrosion products | May increase erosion or tube wall damage |
| Heat exchanger design | Shell-and-tube, plate type, straight tube, U-tube, welded or expanded tube sheet | Different designs create different crevice and inspection risks |
| Cleaning process | Acid cleaning, mechanical cleaning, chemical inhibitor, anti-scaling treatment | Cleaning chemicals may be more aggressive than normal service |
| Required standard | ASTM, ASME, EN, ISO, NACE / ISO, or customer specification | Defines product and inspection requirements |
| Documentation | MTC, heat number, EN 10204 3.1 / 3.2, inspection reports | Supports traceability and project verification |
A vague RFQ such as “alloy tube for geothermal heat exchanger” is usually not enough. The supplier needs the real brine chemistry and operating condition.
Why Site Chemistry Matters
There is no single geothermal fluid chemistry. A geothermal resource may contain different levels of chlorides, sulfates, sulfides, carbon dioxide, silica, ammonia, dissolved oxygen, metals, and suspended solids. These differences directly influence corrosion and scaling.
NREL geothermal assessment guidance explains that facility designers should match equipment materials and design to the corrosive gas type and corrosion mechanism of the geothermal fluid. The same guidance evaluates HCl, SO₂ and H₂S gas species to account for variations in geothermal water chemistry: NREL Geothermal Assessment Tool.
This is why buyers should not select tube materials only by alloy name. A tube that performs well in one geothermal brine may not be suitable in another brine with different chloride level, pH, H₂S, CO₂, silica, oxygen ingress, or temperature.
Important chemistry questions include:
- What is the chloride concentration?
- What is the pH range?
- Is H₂S present?
- Is CO₂ present?
- Is oxygen ingress possible?
- What is the silica level?
- Is carbonate or sulfate scaling expected?
- Are suspended solids present?
- Is the brine reducing or oxidizing?
- Will the fluid chemistry change during operation?
- Will inhibitors, anti-scalants, or cleaning chemicals be used?
Corrosion and Scaling Should Be Considered Together
In geothermal heat exchangers, corrosion and scaling are often connected. Scale can reduce heat transfer efficiency, block flow paths, create local chemistry changes, and form under-deposit corrosion zones.
A review on geothermal heat exchangers states that corrosion and scaling are major challenges and discusses mitigation methods such as corrosion-resistant alloys, protective coatings, anti-scaling agents, and corrosion inhibitors: Corrosion and Scaling in Geothermal Heat Exchangers.
Common scaling-related risks include:
- Reduced heat transfer
- Tube blockage or pressure drop increase
- Under-deposit corrosion
- Crevice-like conditions beneath scale
- Cleaning difficulty
- Surface damage during mechanical cleaning
- Increased maintenance frequency
- Shorter tube service life
For geothermal heat exchangers, material selection should not only ask “Can this alloy resist the fluid?” It should also ask “How will this tube perform when scale, deposits, cleaning, and flow changes are present?”
Chlorides, Pitting, and PREN
High chloride levels can increase the risk of pitting and crevice corrosion for many stainless steels and some alloy systems. PREN, or Pitting Resistance Equivalent Number, is sometimes used as a screening tool for chloride pitting resistance.
Nickel Institute explains that the relative resistance of an alloy to pitting initiation is given by PREN, with a common formula based on chromium, molybdenum, and nitrogen content: The Nickel Advantage - PREN.
However, PREN is not a complete geothermal material selection method. It does not fully predict performance in:
- H₂S-containing environments
- Acidic condensate
- High-temperature brine
- Scaling and under-deposit corrosion
- Erosion-corrosion
- Crevice areas near tube sheets
- Cleaning chemicals
- Galvanic coupling
- Welded or expanded tube joints
PREN can help compare chloride pitting tendency, but it should be used together with real brine chemistry and service conditions.
H₂S, Stress, and Cracking Risk
If H₂S and tensile stress are present, cracking risk may need to be reviewed carefully. This does not mean every geothermal project must follow oil and gas sour service rules, but it does mean buyers should avoid ignoring H₂S when specifying critical tube or component materials.
AMPP defines stress corrosion cracking as cracking caused by the combined influence of tensile stress and a corrosive environment. The tensile stress may come from applied stress or residual stress: AMPP Stress Corrosion Cracking.
ISO 15156 / NACE MR0175 addresses materials for H₂S-containing environments in oil and gas production, and its preview notes that metallic materials selected using the standard are resistant to cracking in defined H₂S-containing environments but not necessarily immune under all service conditions: ISO 15156 / NACE MR0175 Preview.
For geothermal heat exchangers, buyers should confirm:
- H₂S level
- pH
- Chloride level
- Temperature
- Tensile stress
- Residual stress from manufacturing
- Welded or expanded tube joint condition
- Applicable project standard
- Qualification testing requirement
The correct approach is not to assume one alloy is “H₂S-proof.” The material should be reviewed under the actual geothermal condition.
Candidate Alloy Tube Families
The following table is only a starting point for technical discussion. It is not a final selection chart.
| Material Family | Why Buyers May Consider It | Important Caution |
|---|---|---|
| 316L stainless steel | Common, available, economical for mild conditions | May be insufficient for high chloride, low pH, high temperature, or severe crevice conditions |
| Duplex / super duplex stainless steel | Higher strength and improved chloride resistance in selected environments | Welding, temperature limits, SCC risk, and brine chemistry must be reviewed |
| Alloy 625 / UNS N06625 | Often considered where corrosion resistance and strength are both needed | Cost, temperature, brine chemistry, H₂S, and fabrication condition must be checked |
| Alloy C-276 / UNS N10276 | Often considered for severe chemical corrosion and mixed corrosive media | Not universal; oxidizing/reducing conditions, temperature, scaling, and cost matter |
| Alloy C-22 / UNS N06022 | Often considered for broad corrosion resistance in selected chemical environments | Suitability depends on brine chemistry, temperature, availability, and project standard |
| Alloy 825 / UNS N08825 | Often considered for selected acid, chloride, and sulfur-containing environments | Must confirm concentration, temperature, H₂S, chloride, and corrosion mechanism |
| Titanium Grade 2 / Grade 7 / Grade 12 | Often considered for selected chloride-containing waters and heat exchanger tubes | Fluorides, reducing acids, crevice conditions, temperature limits, and galvanic effects must be reviewed |
| Coated or lined tubes | May reduce corrosion cost in some cases | Coating damage, cleaning, inspection, thermal cycling, and repair must be controlled |
A higher alloy is not always the best answer. The most suitable alloy is the one that matches the site chemistry, design, inspection plan, and lifecycle requirement.
Important Standards for Geothermal Heat Exchanger Tubes
When sourcing alloy tubes for geothermal heat exchangers, buyers should confirm the applicable material standard.
| Standard | Typical Scope | Common Relevance |
|---|---|---|
| ASTM B338 | Seamless and welded titanium alloy tubes for surface condensers, evaporators, and heat exchangers | Important reference when titanium heat exchanger tubes are specified |
| ASTM B444 | UNS N06625 and related nickel alloy cold-worked seamless pipe and tube | Common reference for Alloy 625 seamless pipe and tube |
| ASTM B622 | Seamless pipe and tube of nickel and nickel-cobalt alloys | Common reference for C-276, C-22 and related nickel alloy seamless tubes |
| ASTM B829 | General requirements for nickel and nickel alloy seamless pipe and tube | Supports general seamless nickel alloy pipe and tube requirements |
| EN 10204 | Types of inspection documents for metallic products | Commonly used for MTC / inspection certificate requirements |
Standards help define the product, but they do not prove that a tube is suitable for a specific geothermal fluid. Application review is still necessary.
How to Evaluate Supplier Claims
Supplier claims such as “suitable for geothermal,” “high corrosion resistance,” or “long service life” should be verified with documents, test data, and application discussion.
Buyers should ask:
- Which alloy grade and UNS number are supplied?
- Which ASTM, ASME, EN, ISO or customer standard applies?
- Is the tube seamless or welded?
- What is the heat treatment condition?
- What geothermal fluid data was used for the recommendation?
- Does the corrosion data match the real chloride, pH, H₂S, CO₂ and temperature?
- Is scaling or under-deposit corrosion considered?
- Are tube sheet crevice areas considered?
- Can you provide MTC / MTR for the actual heat number?
- Can the tube be traced back to the melt or batch?
- Are ECT, UT, hydrostatic test, dimensional inspection, or surface inspection included?
- Can third-party inspection be arranged if required?
- Can the supplier explain the alloy’s limitations in the stated geothermal service?
A reliable supplier should provide clear evidence and explain limitations, not only advantages.
What Documents Should Buyers Request?
For alloy tubes used in geothermal heat exchangers, buyers may request:
- Material Test Certificate / Mill Test Report
- EN 10204 Type 3.1 or Type 3.2 certificate if required
- Heat number or batch number traceability
- Chemical composition report
- Mechanical properties report
- Heat treatment condition
- Dimensional inspection report
- Surface inspection report
- Eddy current testing report if required
- Ultrasonic testing report if required
- Hydrostatic or pneumatic test report if required
- PMI report if required
- Third-party inspection report if required
- Packing and marking records
EN 10204 defines different types of inspection documents supplied to the purchaser for metallic products, including plates, sheets, bars, forgings, castings and other product forms: EN 10204 Inspection Documents.
Buyers should verify that the certificate matches the physical tubes: heat number, grade, standard, OD, wall thickness, length, test values, quantity, marking and purchase order.
What Testing and Inspection May Be Useful?
Testing requirements depend on the material standard, heat exchanger design, pressure rating, customer specification, and service risk.
| Test / Inspection | Purpose |
|---|---|
| Chemical analysis | Confirms alloy composition |
| Mechanical testing | Confirms tensile strength, yield strength, elongation, hardness or other required values |
| Eddy current testing | Commonly used to inspect heat exchanger tubes for wall changes or defects |
| Ultrasonic testing | Helps detect internal discontinuities in suitable products |
| Hydrostatic / pneumatic testing | Helps verify pressure integrity when required |
| PMI testing | Helps verify alloy identity and major elements |
| Dimensional inspection | Confirms OD, ID, wall thickness, length, tolerance and straightness |
| Surface inspection | Checks scratches, dents, pits, cracks, scale or contamination |
| Liquid penetrant testing | Helps reveal surface-breaking defects when applicable |
| Third-party inspection | Adds independent verification for critical projects |
ASNT explains that eddy current testing is commonly used to inspect heat exchanger tubes and detect changes in wall thickness or defects: ASNT Electromagnetic Testing.
ASNT also explains that ultrasonic testing uses high-frequency sound waves to detect and measure discontinuities in industrial components: ASNT Ultrasonic Testing.
ISO 9001 Is Useful, but Not Enough
ISO 9001 can support supplier evaluation, but it should not be treated as proof that a specific batch of alloy tubes is suitable for a specific geothermal heat exchanger.
ISO explains that ISO 9001 is a globally recognized quality management standard that helps organizations establish, implement, maintain, and continually improve a quality management system: ISO 9001 Quality Management Systems.
For critical geothermal heat exchanger tubes, buyers should still verify:
- Alloy grade
- Product standard
- Heat number
- Chemical composition
- Mechanical properties
- Manufacturing route
- Heat treatment
- Surface condition
- Inspection reports
- MTC / MTR
- Application compatibility
- Third-party inspection if required
Quality management certification is helpful, but batch-level material verification and application review are still necessary.
Lifecycle Cost: Why Initial Price Is Not Enough
The lowest purchase price is not always the lowest lifecycle cost. In geothermal heat exchangers, the real cost may include cleaning, descaling, inspection, leakage, retubing, downtime, replacement tubes, lost heat transfer efficiency, and maintenance labor.
NIST’s Life Cycle Cost Manual explains that life cycle cost analysis considers costs related to owning, operating, maintaining and disposing of a system over a study period: NIST Life Cycle Cost Manual.
When comparing tube materials, buyers should consider:
- Tube material cost
- Heat exchanger design
- Testing and inspection cost
- Cleaning and maintenance cost
- Expected service life
- Scaling tendency
- Leakage consequence
- Retubing difficulty
- Downtime risk
- Lead time
- Spare parts strategy
- Documentation requirement
- Failure consequence
A higher-cost alloy may be more economical in a severe geothermal environment if it reduces leakage, scaling-related damage, and replacement frequency. A lower-cost tube may be acceptable in mild service. The correct decision depends on total risk and lifecycle cost.
Practical RFQ Checklist for Geothermal Heat Exchanger Tubes
Before sending an inquiry, buyers can prepare the following information:
- Equipment type: shell-and-tube heat exchanger, condenser, evaporator, brine heater, or custom unit
- Tube side and shell side fluids
- Geothermal brine chemical analysis
- Chloride level
- H₂S, CO₂, ammonia, oxygen, or other dissolved gas level
- pH range
- Silica, carbonate, sulfate or sulfide scaling tendency
- Operating temperature and maximum temperature
- Operating pressure and design pressure
- Flow velocity and turbulence
- Solids, sand, scale particles or erosion risk
- Cleaning method and cleaning chemicals
- Corrosion mechanism: pitting, crevice corrosion, SCC, erosion-corrosion, under-deposit corrosion or unknown
- Required alloy grade and UNS number if known
- Required standard: ASTM B338, B444, B622, B829, ASME, EN, ISO or customer specification
- Seamless or welded tube requirement
- OD, wall thickness, length, tolerance and quantity
- Straight tube or U-bent tube requirement
- Heat treatment condition
- Surface finish and internal cleanliness requirement
- Required testing: ECT, UT, hydrostatic, pneumatic, PMI, dimensional, surface inspection or third-party inspection
- Required certificate type: EN 10204 3.1 or 3.2
- Packing, end caps, marking and delivery requirement
A clear RFQ helps the supplier recommend a suitable alloy tube instead of quoting a general “geothermal corrosion-resistant material.”
Conclusion
Choosing alloy tubes for geothermal heat exchangers requires site-specific brine analysis, corrosion review, verified documentation, suitable testing and lifecycle cost thinking.
