How to Choose Alloy Tubes for Acid Service Heat Exchangers
Choosing alloy tubes for acid service heat exchangers is not about finding one universal “best” material. Acid service may involve hydrochloric acid, sulfuric acid, nitric acid, phosphoric acid, organic acids, mixed acids, oxidizing impurities, reducing conditions, deposits, high temperature, pressure, flow velocity, welding, and cleaning chemicals.
A poor tube material choice may increase corrosion risk, leakage risk, maintenance work, downtime, replacement cost, or safety risk. However, the solution is not simply to choose the most expensive alloy. Buyers should confirm the actual acid chemistry, operating condition, heat exchanger design, applicable standard, inspection scope, and lifecycle risk before ordering.
A review on heat exchanger corrosion explains that heat exchangers may suffer from pitting corrosion, crevice corrosion, stress corrosion cracking, corrosion fatigue, erosion-corrosion, and other corrosion-related problems: Corrosion and Corrosion Prevention in Heat Exchangers.

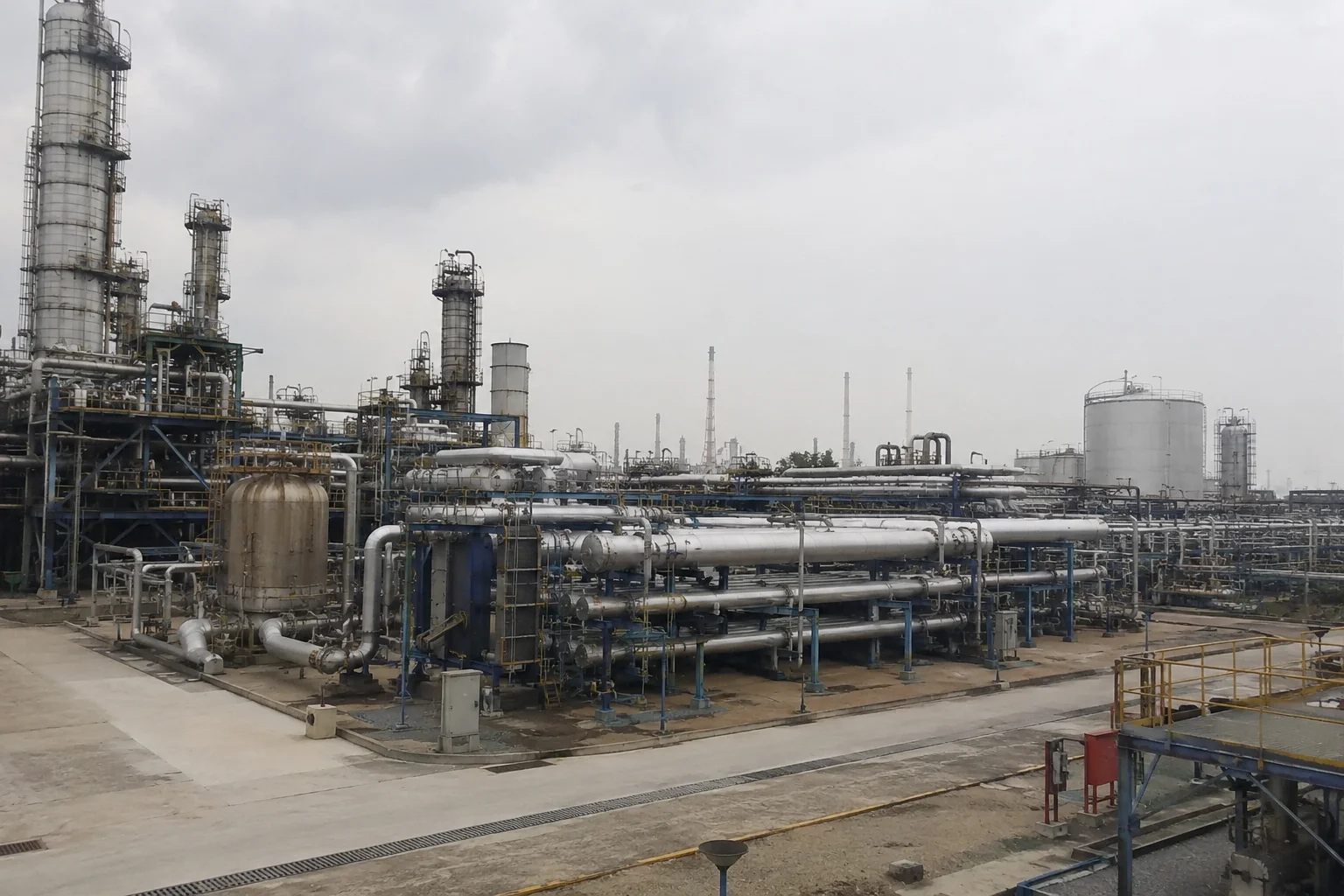

![alloy tubes for acid service heat exchangers](https://emilypipe.com/wp-content/uploads/2026/07/placehold-2.png")
For engineers and buyers, the key question is not “Which alloy tube is best for acid service?” The better question is “Which alloy tube is suitable for this acid type, this concentration, this temperature, this pressure, this heat exchanger design, and this inspection requirement?”
Why There Is No Single Best Alloy for Acid Service
No single alloy tube is best for every acid service heat exchanger. Material selection depends on acid type, concentration, temperature, impurities, oxidizing or reducing condition, flow velocity, deposits, pressure, mechanical stress, fabrication condition, and expected service life.
Different acids attack metals in different ways.
Nickel Institute provides separate technical guides for different acid environments, including hydrochloric acid, sulfuric acid, nitric acid, and phosphoric acid. This shows why “acid service” is too broad as a material selection description.
Useful references include:
- Alloys to Resist Chlorine, Hydrogen Chloride and Hydrochloric Acid
- Alloy Selection for Service in Sulphuric Acid
- Alloy Selection for Service in Nitric Acid
- Alloy Selection in Wet-Process Phosphoric Acid
A material that performs well in one acid may not be suitable for another acid, even when both are described as “corrosive service.”
Key Service Conditions Buyers Should Confirm
Before selecting alloy tubes, buyers should define the real operating conditions.
| Factor | What to Confirm | Why It Matters |
|---|---|---|
| Acid type | HCl, H₂SO₄, HNO₃, H₃PO₄, organic acid, mixed acid, or process acid | Different acids have different corrosion mechanisms |
| Acid concentration | Normal, minimum, maximum, startup / shutdown concentration | Corrosion behavior may change with concentration |
| Temperature | Normal, maximum, minimum, thermal cycling | Higher temperature often changes corrosion rate and safety margin |
| Pressure | Operating pressure, design pressure, pressure cycling | Affects tube design, leakage consequence, and mechanical stress |
| Oxidizing / reducing condition | Oxidizers, reducers, dissolved oxygen, ferric ions, chlorides, contaminants | Strongly affects passivation and alloy suitability |
| Impurities | Chlorides, fluorides, sulfates, metals, solids, organics, process contaminants | Trace species may change corrosion behavior |
| Flow velocity | Low-flow, high-flow, turbulent, stagnant, or two-phase flow | Affects erosion-corrosion, fouling, and localized attack |
| Deposits / fouling | Scale, salts, sludge, coke, polymer, corrosion products | Can create under-deposit corrosion and crevice-like conditions |
| Heat exchanger design | Shell-and-tube, U-tube, straight tube, tube sheet joint, baffles, dead zones | Design affects crevice risk, cleaning, and inspection |
| Fabrication | Welding, bending, expansion, heat treatment, surface finish | Fabrication may affect final corrosion resistance |
| Cleaning method | Acid cleaning, caustic cleaning, solvent flushing, steam-out | Cleaning chemicals may be more aggressive than normal service |
| Standard | ASTM, ASME, EN, ISO, or customer specification | Defines product and testing requirements |
| Documentation | MTC / MTR, heat number, EN 10204 3.1 / 3.2 if required | Supports traceability and project verification |
A vague RFQ such as “alloy tube for acid heat exchanger” is usually not enough. The supplier needs the acid name, concentration, temperature, pressure, and equipment details.
How Acid Type Changes Material Selection
The following table is only a starting point for technical discussion. It is not a final material selection chart.
| Acid Service | Common Selection Issue | Candidate Material Families to Review | Important Caution |
|---|---|---|---|
| Hydrochloric acid / HCl | Strong reducing acid, high general corrosion risk for many metals | Nickel-molybdenum and selected Ni-Cr-Mo alloys | Temperature, concentration, oxidizers, aeration and contaminants must be reviewed |
| Sulfuric acid / H₂SO₄ | Corrosion behavior changes strongly with concentration, temperature and contaminants | Alloy 20 type materials, selected stainless steels, nickel alloys, zirconium, titanium or other materials depending on condition | Do not select by acid name alone; concentration is critical |
| Nitric acid / HNO₃ | Strong oxidizing acid; intergranular corrosion and fabrication condition may matter | Titanium, high-chromium stainless steels, selected nickel-containing materials, zirconium in severe cases | Reducing contaminants, temperature and weld condition must be reviewed |
| Phosphoric acid / H₃PO₄ | Wet-process acid may contain impurities such as chlorides, fluorides or solids | Stainless steels, nickel alloys, titanium, zirconium or lined systems depending on contamination | Pure acid data may not match wet-process acid |
| Organic acids | May appear mild but can become aggressive with water, chlorides, oxidizers or temperature | Stainless steels, nickel alloys, titanium or other alloys depending on chemistry | Mixed acids and contaminants should be checked |
| Mixed acids | Corrosion behavior may be controlled by the most aggressive component or impurity | Ni-Cr-Mo alloys, titanium, zirconium, tantalum or lined systems may be reviewed | Lab testing or service experience may be needed |
| Acid plus chlorides | Pitting, crevice corrosion and SCC risk may increase | Higher-alloy stainless steels, Ni-Cr-Mo alloys, titanium or other materials depending on acid and temperature | PREN alone is not enough |
| Acid plus solids | Erosion-corrosion and under-deposit corrosion | Corrosion-resistant alloys plus design / cleaning review | Flow velocity and particle hardness matter |
The correct material depends on the full acid environment, not only the acid name.
Why Concentration and Temperature Matter
Acid concentration and temperature should be confirmed together. A material that performs acceptably in a dilute acid at low temperature may not perform well at higher concentration or higher temperature. In some acid systems, the most aggressive range may not be the highest concentration.
Buyers should confirm:
- Normal acid concentration
- Maximum acid concentration
- Minimum acid concentration
- Dilution water quality
- Startup and shutdown concentration changes
- Maximum operating temperature
- Temperature during cleaning
- Temperature during upset conditions
- Whether boiling or flashing can occur
- Whether acid vapors or condensates are present
If the service condition changes during operation, the material should be reviewed across the full operating envelope, not only the average condition.
Why Datasheets Are Only a Starting Point
Material datasheets are useful, but they do not fully predict performance in a real heat exchanger.
A datasheet may list:
- Chemical composition
- Tensile strength
- Yield strength
- Elongation
- Hardness
- General corrosion resistance
- Typical applications
- Heat treatment condition
These values are important, but they may not describe:
- Tube sheet crevices
- Low-flow zones
- Deposits and fouling
- Weld heat-affected zones
- Residual stress
- Thermal cycling
- Acid concentration changes
- Impurities
- Cleaning chemicals
- Long-term exposure
- Erosion-corrosion
- Under-deposit corrosion
This is why buyers should compare datasheet information with actual service conditions.
Heat Exchanger Design Can Change Corrosion Risk
The same alloy may behave differently in different heat exchanger designs. Heat exchanger geometry can create crevices, stagnant zones, deposits, high-velocity areas, impingement zones, and weld-related risks.
Design-related questions include:
- Is the tube straight or U-bent?
- Is the tube welded or seamless?
- How are tubes connected to the tube sheet?
- Are there expanded joints, welded joints, or crevice areas?
- Are baffles creating high-velocity or low-flow regions?
- Can deposits accumulate?
- Can the tube bundle be cleaned effectively?
- Are there dead legs or stagnant zones?
- Is the acid on the tube side or shell side?
- Is there two-phase flow, boiling, or condensation?
- Can acid vapors condense in cooler areas?
A tube material should be selected together with the heat exchanger design, not separately from it.
Common Corrosion Mechanisms to Review
Acid service heat exchangers may face several corrosion mechanisms.
| Corrosion Mechanism | Why It Matters | What Buyers Should Check |
|---|---|---|
| General corrosion | Uniform wall loss may reduce tube life | Corrosion rate, service life, corrosion allowance |
| Pitting corrosion | Small pits can become leakage points | Chlorides, oxidizers, temperature, surface condition |
| Crevice corrosion | Attack may occur at tube sheet joints, deposits, gaskets or stagnant zones | Crevice geometry, deposits, pH, chlorides |
| Intergranular corrosion | Grain boundary attack may occur after improper thermal exposure or fabrication | Heat treatment, welding, ASTM G28 if relevant |
| Stress corrosion cracking | Cracking may occur under tensile stress and corrosive environment | Stress, residual stress, chlorides, acid chemistry, temperature |
| Erosion-corrosion | Flow and particles may damage protective surfaces | Velocity, turbulence, solids, inlet design |
| Under-deposit corrosion | Deposits create localized chemistry | Fouling, cleaning frequency, dead zones |
| Corrosion fatigue | Cyclic stress plus corrosion may reduce fatigue life | Pressure cycling, vibration, thermal cycling |
| Galvanic corrosion | Dissimilar metals may interact in conductive media | Tube sheet material, fasteners, gaskets, electrical contact |
AMPP defines stress corrosion cracking as cracking caused by the simultaneous presence of tensile stress and a specific corrosive medium: AMPP Eight Forms of Corrosion.
What Testing May Support Material Selection?
Testing requirements depend on the acid service, product form, project specification, and risk level. Not every project requires every test.
Useful tests may include:
| Test / Standard | What It Helps Evaluate | Important Caution |
|---|---|---|
| ASTM G48 | Pitting and crevice corrosion resistance of stainless steels and related alloys in ferric chloride solution | It ranks resistance under specific test conditions; it does not represent every acid environment |
| ASTM G28 | Intergranular corrosion susceptibility of wrought nickel-rich, chromium-bearing alloys | It is useful for selected nickel alloys and environments, not all services |
| Chemical analysis | Confirms alloy composition | Must match the applicable product standard and purchase order |
| Mechanical testing | Confirms strength, yield, elongation or hardness | Does not prove corrosion suitability by itself |
| PMI | Helps verify alloy identity | Does not replace full chemical analysis or MTC |
| Eddy current testing | Commonly used for heat exchanger tube inspection | Depends on material and inspection procedure |
| Ultrasonic testing | Helps detect internal discontinuities in suitable products | Suitability depends on product form and thickness |
| Hydrostatic / pneumatic testing | Helps verify pressure integrity when required | Does not prove long-term corrosion resistance |
| Surface inspection | Checks scratches, pits, dents, scale or contamination | Surface condition may affect localized corrosion risk |
| Third-party inspection | Adds independent verification for critical orders | Scope must be clearly defined in the purchase order |
ASTM G48 describes laboratory tests for comparing resistance of stainless steels and related alloys to pitting and crevice corrosion initiation under the specific conditions of the methods: ASTM G48.
ASTM G28 describes test methods for detecting susceptibility to intergranular corrosion in wrought, nickel-rich, chromium-bearing alloys: ASTM G28.
ASNT explains that eddy current testing is commonly used to inspect heat exchanger tubes and detect wall-thickness changes or defects: ASNT Electromagnetic Testing.
Important Product Standards for Alloy Tubes
When sourcing alloy tubes for acid service heat exchangers, buyers should confirm the applicable product standard.
| Standard | Typical Scope | Common Relevance |
|---|---|---|
| ASTM B163 | Seamless nickel and nickel alloy tubes for condenser and heat-exchanger service | Nickel alloy heat exchanger tubes |
| ASTM B622 | Seamless pipe and tube of nickel and nickel-cobalt alloys | C-276, C-22 and related nickel alloy seamless tubes |
| ASTM B444 | UNS N06625 and related nickel alloy cold-worked seamless pipe and tube | Alloy 625 pipe and tube |
| ASTM B729 | UNS N08020, N08026 and N08024 seamless pipe and tube intended for general corrosive service | Alloy 20 type pipe and tube |
| ASTM B423 | UNS N08825 and related nickel-iron-chromium-molybdenum-copper alloy seamless pipe and tube | Alloy 825 type pipe and tube |
| ASTM B338 | Seamless and welded titanium alloy tubes for condensers, evaporators and heat exchangers | Titanium heat exchanger tubes |
Useful references:
These standards help define product requirements. They do not prove that a tube is suitable for a specific acid service without application review.
How to Verify Supplier Claims
Supplier claims such as “acid resistant,” “chemical grade,” “high corrosion resistance,” or “heat exchanger quality” should be verified with documents, test data, and application discussion.
Buyers should ask:
- Which alloy grade and UNS number are supplied?
- Which ASTM, ASME, EN, ISO, or customer standard applies?
- Is the tube seamless or welded?
- What is the heat treatment condition?
- What acid type, concentration and temperature were used for the recommendation?
- Are impurities, oxidizers, reducers, chlorides and fluorides considered?
- Is the acid on the tube side or shell side?
- Are deposits, fouling, crevices and low-flow zones considered?
- Are welding, bending, expansion and tube sheet joints considered?
- Can the supplier provide MTC / MTR for the actual heat number?
- Can the material be traced back to the melt or batch?
- Are ECT, UT, hydrostatic test, dimensional inspection or surface inspection included?
- Can third-party inspection be arranged if required?
- Can the supplier explain where the proposed alloy should not be used?
A reliable supplier should explain limitations, not only advantages.
What Documents Buyers Should Request
For acid service heat exchanger tubes, buyers may request:
- Material Test Certificate / Mill Test Report
- EN 10204 Type 3.1 or Type 3.2 certificate if required
- Heat number or batch number traceability
- Chemical composition report
- Mechanical properties report
- Heat treatment condition
- Dimensional inspection report
- Surface inspection report
- Eddy current testing report if required
- Ultrasonic testing report if required
- Hydrostatic or pneumatic test report if required
- PMI report if required
- ASTM G48 or G28 test report if specified
- Third-party inspection report if required
- Packing and marking records
EN 10204 defines inspection documents for metallic products and includes inspection certificates based on specific inspection: EN 10204 Inspection Documents.
Buyers should verify that the certificate matches the physical tube: heat number, grade, standard, OD, wall thickness, length, test values, quantity, marking and purchase order.
ISO 9001 Is Useful, but Not Enough
ISO 9001 can support supplier evaluation, but it should not be treated as proof that a specific batch of alloy tubes is suitable for a specific acid service heat exchanger.
ISO explains that ISO 9001 is a globally recognized standard for quality management and helps organizations establish, implement, maintain and continually improve a quality management system: ISO 9001 Quality Management Systems.
For critical acid service heat exchanger tubes, buyers should still verify:
- Alloy grade
- Product standard
- Heat number
- Chemical composition
- Mechanical properties
- Manufacturing route
- Heat treatment condition
- Surface condition
- Inspection reports
- MTC / MTR
- Application compatibility
- Third-party inspection if required
Quality management certification is helpful, but batch-level material verification and service-condition review are still necessary.
Lifecycle Cost: Why Initial Price Is Not Enough
The lowest purchase price is not always the lowest lifecycle cost. In acid service heat exchangers, the real cost may include inspection, installation, cleaning, corrosion monitoring, leakage, retubing, repair, downtime, replacement tubes, lost heat transfer efficiency and safety control.
NIST’s Life Cycle Cost Manual explains that lifecycle cost is the total cost of owning, operating, maintaining and disposing of a system over a given study period: NIST Life Cycle Cost Manual.
When comparing tube materials, buyers should consider:
- Initial tube cost
- Product standard
- Manufacturing route
- Testing and inspection cost
- Documentation requirement
- Acid concentration and temperature
- Corrosion mechanism
- Cleaning and maintenance cost
- Expected service condition
- Leakage consequence
- Retubing difficulty
- Downtime risk
- Lead time
- Spare parts strategy
- Failure consequence
A higher-cost alloy may be more economical in severe acid service if it reduces leakage risk, replacement frequency, or inspection burden. A lower-cost material may be acceptable in mild service. The correct decision depends on total risk and lifecycle cost.
Practical RFQ Checklist for Acid Service Heat Exchanger Tubes
Before sending an inquiry, buyers can prepare the following information:
- Equipment type: shell-and-tube heat exchanger, condenser, evaporator, reboiler, cooler, or custom unit
- Acid type: HCl, H₂SO₄, HNO₃, H₃PO₄, organic acid, mixed acid, or other
- Acid concentration: normal, maximum and minimum
- Temperature: normal, maximum, startup, shutdown and cleaning temperature
- Pressure: operating pressure, design pressure and pressure cycling
- Tube side and shell side media
- Oxidizing or reducing condition
- Chlorides, fluorides, sulfates, metals, solids or other impurities
- Flow velocity and turbulence
- Deposits, fouling, scaling or under-deposit corrosion risk
- Cleaning chemicals and cleaning frequency
- Heat exchanger design: straight tube, U-tube, tube sheet joint, welded or expanded joints
- Corrosion mechanism: general corrosion, pitting, crevice corrosion, SCC, intergranular corrosion, erosion-corrosion or unknown
- Required alloy grade and UNS number if known
- Required standard: ASTM B163, B622, B444, B729, B423, B338, ASME, EN, ISO or customer specification
- Seamless or welded tube requirement
- OD, wall thickness, length, tolerance and quantity
- Heat treatment condition
- Surface finish and internal cleanliness requirement
- Required testing: ECT, UT, hydrostatic, pneumatic, PMI, G48, G28, dimensional, surface inspection or third-party inspection
- Required certificate type: EN 10204 3.1 or 3.2
- Packing, end caps, marking and delivery requirement
A clear RFQ helps the supplier recommend a suitable alloy tube instead of quoting a general “acid-resistant tube.”
Conclusion
Acid service alloy tube selection requires acid-specific review, operating-condition confirmation, supplier verification, suitable testing and lifecycle cost thinking.
