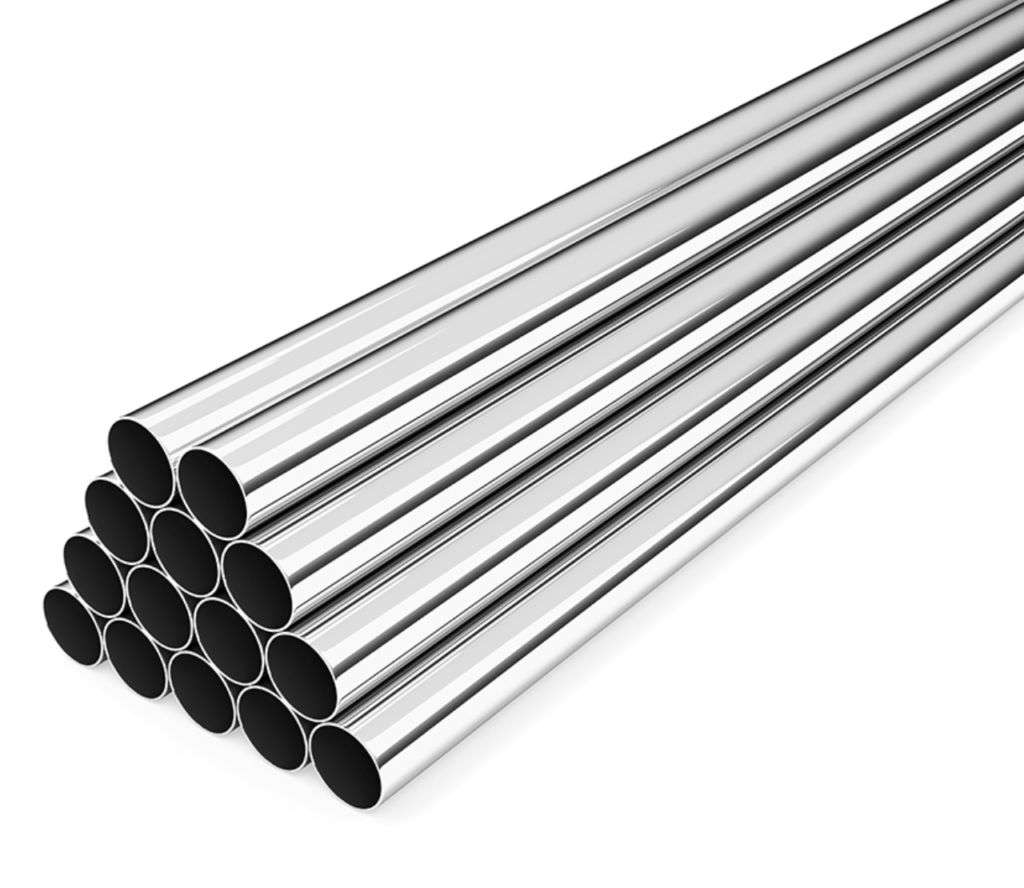

Monel 400 (UNS N04400) pipe for chemical industry is a classic nickel-copper solid solution alloy pipe, renowned for its unmatched resistance to hydrofluoric acid, seawater and reducing acids. Specially engineered for severe corrosion service where stainless steels fail rapidly, it provides exceptional durability for critical piping systems in fluorochemical processing, marine systems and acid handling applications.
As the most cost-effective nickel-copper alloy for chemical processing, Monel 400 pipe exhibits excellent mechanical properties from subzero temperatures up to 480℃, with outstanding formability and weldability. With over 20 years of production experience, Emily PIPE supplies precision-manufactured Monel 400 seamless and welded pipes that meet the strictest international chemical industry standards.
| Item | Details |
|---|---|
| Executive Standards | 1. International Material Standards: ASTM B165 (Seamless Pipe), ASTM B725 (Welded Pipe), ASME SB165, ASME SB725, DIN 17743, EN 2.4360
2. Chemical Piping Standards: ASME B31.3 (Process Piping), ASME B31.4 3. Pressure Vessel Standards: ASME Section VIII Div.1, PED 2014/68/EU 4. Testing Standards: ASTM E8, ASTM E23, ASTM E10, ASTM G48, ASTM E243 5. Quality Management Standards: ISO 9001, ISO 14001, OHSAS 18001 |
| Material Grade | 1. Main Grade: Monel 400 (Nickel-Copper Alloy, Severe Corrosion Chemical Grade)
2. International Designations: UNS N04400, W.Nr.2.4360, Alloy 400, NiCu30Fe 3. Equivalent Grades: NS3301 (China), Monel 400 (USA), Monel 400 (Germany) 4. Special Grades: Seamless grade for high-pressure applications; precision grade for tight tolerance applications |
| Chemical Composition (Weight %) | 1. Nickel (Ni): 63.0% minimum (base element for corrosion resistance)
2. Copper (Cu): 28.0-34.0 (key element for hydrofluoric acid resistance) 3. Iron (Fe): ≤2.5 (improves strength and formability) 4. Manganese (Mn): ≤2.0 5. Carbon (C): ≤0.3 6. Silicon (Si): ≤0.5 7. Sulfur (S): ≤0.024 Note: The balanced nickel-copper composition creates a single-phase solid solution structure that provides unique corrosion resistance |
| Mechanical Properties (Annealed State) | 1. Tensile Strength (RT): 480-700 MPa
2. 0.2% Yield Strength (RT): ≥170 MPa 3. Elongation (δ5): ≥35% 4. Reduction of Area: ≥50% 5. Hardness (HB): 110-170 6. Tensile Strength (200℃): ≥410 MPa 7. Tensile Strength (400℃): ≥310 MPa 8. Modulus of Elasticity: 179 GPa 9. Maximum Continuous Service Temperature: 480℃ |
| Dimensional Tolerance | 1. Seamless Pipes: Ø6-50mm ±0.15mm; Ø50-150mm ±0.3mm; Ø150-300mm ±0.5mm; Wall thickness ±0.08-0.12mm
2. Welded Pipes: Ø10-200mm ±0.2mm; Wall thickness ±0.10mm 3. U-Bend Pipes: Bend radius ±0.5mm; Ovality at bend ≤3% of OD 4. Length Tolerance: ±2mm (1-12m); custom lengths up to 18m available |
| Why This Material Is Used in Chemical Industry | 1. Unmatched Hydrofluoric Acid Resistance:
– The only commercial alloy that resists corrosion from hydrofluoric acid at all concentrations and temperatures – Excellent resistance to all fluoride compounds, including hydrogen fluoride, fluorine gas and fluorides – Forms a protective copper fluoride film that prevents further corrosion in HF environments 2. Superior Seawater Corrosion Resistance: – Immune to chloride-induced stress corrosion cracking, pitting and crevice corrosion in seawater – Excellent resistance to biofouling, making it ideal for marine applications – Outperforms all stainless steels and most nickel alloys in seawater environments 3. Excellent Reducing Acid Resistance: – Good resistance to low-concentration sulfuric acid (up to 10% at boiling point) – Excellent resistance to hydrochloric acid (up to 5% at room temperature) – Good resistance to alkaline solutions, organic acids and salts 4. Broad Temperature Range Performance: – Maintains excellent mechanical properties from cryogenic temperatures (-253℃) up to 480℃ – Excellent toughness at low temperatures, making it suitable for cryogenic applications – Good thermal stability with no harmful phase precipitation during service 5. Superior Fabricability and Cost-Effectiveness: – Excellent formability, machinability and weldability, reducing fabrication costs – 30-50% lower material cost than Inconel and Hastelloy alloys – Long service life of 15-20+ years in most chemical environments |
| Application Scenarios and Corresponding Customers | 1. Hydrofluoric Acid and Fluorochemical Industry:
– Applications: HF transfer lines, fluorochemical production piping, acid storage tanks, heat exchanger tubes and reactor piping – Customers: DuPont, Honeywell, Solvay, Arkema, Daikin Industries, Sinochem 2. Seawater Desalination and Marine Industry: – Applications: Seawater intake piping, heat exchanger tubes, brine processing lines, marine chemical plant piping – Customers: Siemens Energy, GE Power, DuPont Water Solutions, Veolia, SUEZ 3. Sulfuric Acid and Hydrochloric Acid Industry: – Applications: Acid transfer lines, heat exchanger tubes, condenser tubes and process piping – Customers: BASF, Bayer, ExxonMobil Chemical, Shell Chemical, Sinopec 4. Petroleum and Natural Gas Industry: – Applications: Sour gas processing lines, acid gas removal systems, heat exchanger tubes and process piping – Customers: ExxonMobil, Shell, BP, Chevron, TotalEnergies, Saudi Aramco 5. Pharmaceutical and Fine Chemical Industry: – Applications: Reactor piping, heat exchanger tubes, solvent transfer lines and clean process piping – Customers: Pfizer, Novartis, Merck, Roche, Johnson & Johnson, AstraZeneca 6. Uranium Processing and Nuclear Industry: – Applications: Uranium hexafluoride handling piping, nuclear fuel processing lines and heat exchanger tubes – Customers: Areva, Westinghouse, Rosatom, China National Nuclear Corporation |
| Customer Requirements in This Industry | 1. Performance Requirements:
– Hydrofluoric Acid Resistance: Must resist corrosion from HF and all fluoride compounds – Seawater Corrosion Resistance: Must be immune to chloride-induced corrosion in seawater – Reducing Acid Resistance: Must resist corrosion from low-concentration sulfuric and hydrochloric acids – Pressure Resistance: Must withstand operating pressures up to 100 bar in chemical processes – Cryogenic Toughness: Must maintain excellent toughness at subzero temperatures 2. Quality and Compliance Requirements: – Material Standard Compliance: Must meet all requirements of ASTM B165, ASTM B725 and ASME SB165 – ASME B31.3 Compliance: Must comply with process piping code for chemical plant construction – Full Traceability: Must provide 100% traceability from raw material ore to finished product – Material Certification: Must provide comprehensive MTRs including chemical analysis and NDT results – Third-Party Inspection: Must allow inspection by TÜV, SGS, BV or other authorized organizations 3. Manufacturing Requirements: – Precision Dimensional Tolerances: Must meet tight tolerances for proper fit and assembly of piping systems – Surface Quality: Must have a smooth, defect-free surface to prevent corrosion initiation – Internal Quality: Must be free from inclusions, porosity and segregation (100% UT/ET verified) – Consistent Quality: Must have uniform chemical composition across all batches – Cleanliness Requirements: Must meet strict cleanliness standards for pharmaceutical and nuclear applications 4. Supply Chain Requirements: – Reliable Delivery: Must meet tight project schedules and plant turnaround deadlines – Emergency Response: Must provide expedited production for unplanned shutdowns – Small Batch Capability: Must produce small quantities for prototype development and maintenance – Global Supply Capability: Must deliver to chemical plants worldwide with consistent quality – Inventory Management: Must offer stock holding solutions to reduce customer inventory costs 5. Cost Requirements: – Competitive Pricing: Must offer fair pricing while maintaining the highest quality standards – Low Total Cost of Ownership: Must provide long service life and reduced maintenance costs – Value-Added Services: Must offer cutting, bending, welding and end processing services |
| Common Related Products in This Industry | 1. Monel 400 Seamless Pipes: Available in various sizes and wall thicknesses for high-pressure chemical applications
2. Monel 400 Welded Pipes: Cost-effective solution for large-diameter and low-to-medium pressure applications 3. Monel 400 U-Bend Pipes: Custom bent pipes for chemical heat exchangers and condensers 4. Monel 400 Fittings: Elbows, tees, reducers, flanges and couplings for chemical piping systems 5. Monel 400 Forgings: Custom forgings including valve bodies, pump casings and flanges 6. Monel 400 Fasteners: Bolts, nuts, screws, studs and washers for severe corrosion service 7. Monel 400 Welding Materials: Electrodes, wires and filler metals for chemical industry welding 8. Monel 400 Machined Components: Precision-machined valves, fittings and heat exchanger parts 9. Monel 400 Sheets and Plates: Used for manufacturing tanks, vessels and heat exchangers 10. Custom Fabricated Assemblies: Pre-fabricated piping spools and heat exchanger bundles |
| Why Choose Us (Emily PIPE) | 1. 20+ Years of Chemical Alloy Expertise: We have been supplying high-performance Monel 400 pipe products to the global chemical industry for over 20 years
2. Dedicated Chemical Grade Production Line: We operate a dedicated clean production line for Monel 400 pipes, ensuring strict control over chemical composition 3. Full-Process Quality Control: We implement comprehensive quality control including 100% ultrasonic, eddy current and hydrostatic testing 4. Complete International Certifications: Our products meet all major international standards and hold ASTM, ASME, PED and ISO 9001 certifications 5. Advanced Customization Capability: We can produce custom sizes, lengths, wall thicknesses and end processing according to your drawings 6. Global Chemical Supply Chain Experience: We have extensive experience supplying to major chemical companies worldwide with reliable on-time delivery 7. Professional Technical Support: Our team of metallurgical engineers and corrosion specialists provides expert guidance on material selection 8. One-Stop Solution: We provide complete solutions from raw material supply to pre-fabricated piping assemblies, reducing your supply chain complexity |
| Supplementary Industry Information | 1. Comprehensive Test Reports: Each batch comes with a full MTR including chemical analysis, mechanical properties and NDT results. Corrosion test reports available upon request
2. Full Material Traceability: Every pipe has a unique heat number and complete traceability documentation from raw material to finished product 3. Value-Added Processing: We offer precision cutting, CNC bending, welding, end processing and surface finishing services 4. Prototype Development Support: We support small batch prototype orders with fast turnaround times 5. Emergency Response Service: We provide 24/7 emergency service for unplanned plant shutdowns with expedited shipping 6. Market Growth: The global Monel 400 pipe market is projected to grow at a CAGR of over 4% through 2030, driven by increasing demand from fluorochemical and marine industries 7. Sustainability Commitment: All our products are manufactured using sustainable practices and are 100% recyclable |
| Packaging | 1. Plastic Caps: All pipe ends are protected with heavy-duty polyethylene caps with internal sealing rings to prevent contamination
2. Waterproof Film: Each pipe is individually wrapped in waterproof and anti-corrosion film 3. Bundle Packing: Pipes of the same size are bundled with steel straps and wooden spacers to prevent contact damage 4. Wooden Case: Bundles are packed in sturdy fumigated wooden cases with steel reinforcement for international shipping 5. Export Standard Packing: All packaging complies with international export standards and ISPM 15 regulations 6. Marking: Each package is clearly marked with product specifications, heat number, quantity and destination |
