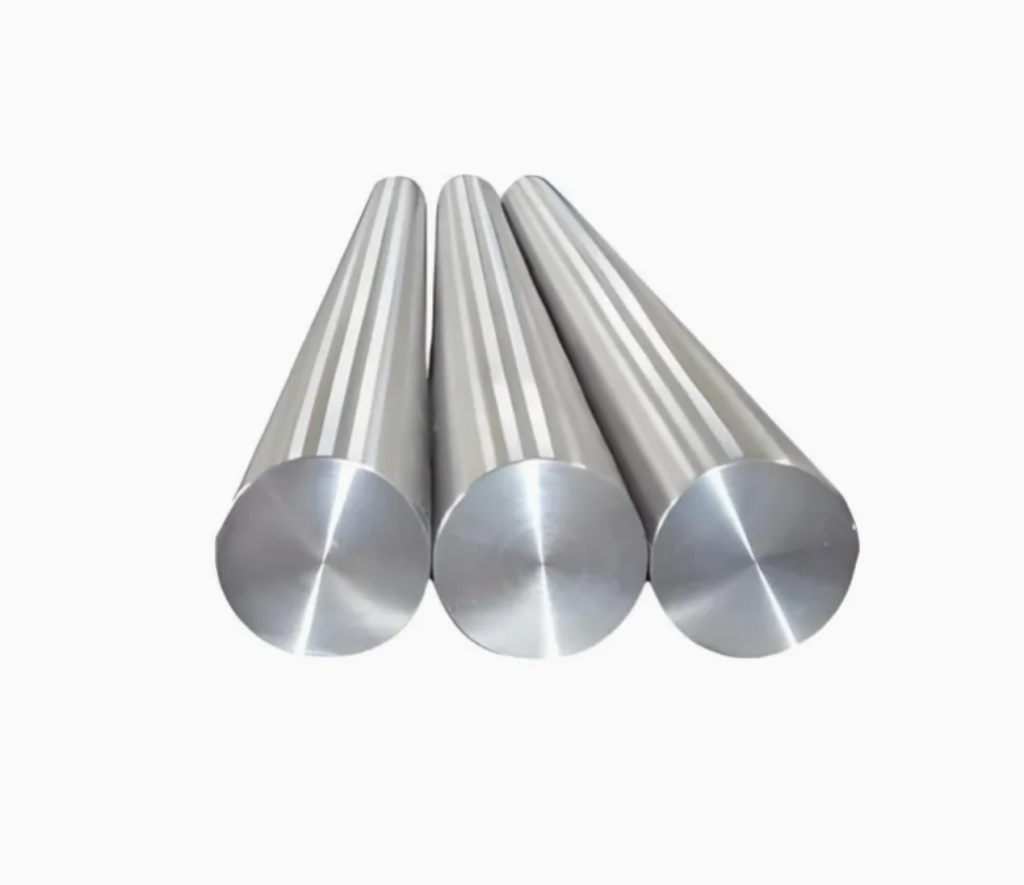

As the most cost-effective nickel-copper alloy for chemical processing, Monel 400 bar exhibits excellent mechanical properties from subzero temperatures up to 480℃, with outstanding formability and weldability. With over 20 years of production experience, Emily PIPE supplies precision-manufactured Monel 400 bars in all standard and custom sizes that meet the strictest international chemical industry standards.
| Item | Details |
|---|---|
| Executive Standards | 1. International Material Standards: ASTM B164 (Bar/Rod), ASTM B564 (Forgings), ASME SB164, ASME SB564, DIN 17743, EN 2.4360
2. Chemical Piping Standards: ASME B31.3 (Process Piping), ASME B31.4 3. Pressure Vessel Standards: ASME Section VIII Div.1, PED 2014/68/EU 4. Testing Standards: ASTM E8, ASTM E23, ASTM E10, ASTM G48, ASTM E1444, ASTM A388 5. Quality Management Standards: ISO 9001, ISO 14001, OHSAS 18001 |
| Material Grade | 1. Main Grade: Monel 400 (Nickel-Copper Alloy, Severe Corrosion Chemical Grade)
2. International Designations: UNS N04400, W.Nr.2.4360, Alloy 400, NiCu30Fe 3. Equivalent Grades: NS3301 (China), Monel 400 (USA), Monel 400 (Germany) 4. Special Grades: Forging grade for heavy components; precision ground grade for tight tolerance applications |
| Chemical Composition (Weight %) | 1. Nickel (Ni): 63.0% minimum (base element for corrosion resistance)
2. Copper (Cu): 28.0-34.0 (key element for hydrofluoric acid resistance) 3. Iron (Fe): ≤2.5 (improves strength and formability) 4. Manganese (Mn): ≤2.0 5. Carbon (C): ≤0.3 6. Silicon (Si): ≤0.5 7. Sulfur (S): ≤0.024 Note: The balanced nickel-copper composition creates a single-phase solid solution structure that provides unique corrosion resistance |
| Mechanical Properties (Annealed State) | 1. Tensile Strength (RT): 480-700 MPa
2. 0.2% Yield Strength (RT): ≥170 MPa 3. Elongation (δ5): ≥35% 4. Reduction of Area: ≥50% 5. Hardness (HB): 110-170 6. Tensile Strength (200℃): ≥410 MPa 7. Tensile Strength (400℃): ≥310 MPa 8. Modulus of Elasticity: 179 GPa 9. Maximum Continuous Service Temperature: 480℃ |
| Dimensional Tolerance | 1. Hot Rolled Bars: Ø6-50mm ±0.3mm; Ø50-150mm ±0.5mm; Ø150-300mm ±0.8mm
2. Cold Drawn Bars: Ø6-30mm ±0.03mm; Ø30-80mm ±0.05mm; Ø80-150mm ±0.10mm 3. Precision Ground Bars: Ø6-100mm ±0.01mm 4. Rectangular/Square Bars: ±0.05mm (≤50mm); ±0.10mm (>50mm) 5. Length Tolerance: ±2mm (1-6m); custom lengths up to 12m available 6. Straightness Tolerance: ≤0.5mm/m (precision); ≤0.3mm/m (ultra-precision) |
| Why This Material Is Used in Chemical Industry | 1. Unmatched Hydrofluoric Acid Resistance:
– The only commercial alloy that resists corrosion from hydrofluoric acid at all concentrations and temperatures – Excellent resistance to all fluoride compounds, including hydrogen fluoride, fluorine gas and fluorides – Forms a protective copper fluoride film that prevents further corrosion in HF environments 2. Superior Seawater Corrosion Resistance: – Immune to chloride-induced stress corrosion cracking, pitting and crevice corrosion in seawater – Excellent resistance to biofouling, making it ideal for marine applications – Outperforms all stainless steels and most nickel alloys in seawater environments 3. Excellent Reducing Acid Resistance: – Good resistance to low-concentration sulfuric acid (up to 10% at boiling point) – Excellent resistance to hydrochloric acid (up to 5% at room temperature) – Good resistance to alkaline solutions, organic acids and salts 4. Broad Temperature Range Performance: – Maintains excellent mechanical properties from cryogenic temperatures (-253℃) up to 480℃ – Excellent toughness at low temperatures, making it suitable for cryogenic applications – Good thermal stability with no harmful phase precipitation during service 5. Superior Fabricability and Cost-Effectiveness: – Excellent formability, machinability and weldability, reducing fabrication costs – 30-50% lower material cost than Inconel and Hastelloy alloys – Long service life of 15-20+ years in most chemical environments |
| Application Scenarios and Corresponding Customers | 1. Hydrofluoric Acid and Fluorochemical Industry:
– Applications: Pump shafts, valve bodies, impellers, agitator shafts, fasteners, flanges and reactor components – Customers: DuPont, Honeywell, Solvay, Arkema, Daikin Industries, Sinochem 2. Seawater Desalination and Marine Industry: – Applications: Seawater pump components, valve parts, heat exchanger tube sheets, fasteners and structural parts – Customers: Siemens Energy, GE Power, DuPont Water Solutions, Veolia, SUEZ 3. Sulfuric Acid and Hydrochloric Acid Industry: – Applications: Acid pump components, valve bodies, agitators, fasteners and heat exchanger parts – Customers: BASF, Bayer, ExxonMobil Chemical, Shell Chemical, Sinopec 4. Petroleum and Natural Gas Industry: – Applications: Sour gas processing components, pump and valve parts, fasteners and structural components – Customers: ExxonMobil, Shell, BP, Chevron, TotalEnergies, Saudi Aramco 5. Pharmaceutical and Fine Chemical Industry: – Applications: Reactor components, agitator shafts, valve parts, fasteners and process equipment – Customers: Pfizer, Novartis, Merck, Roche, Johnson & Johnson, AstraZeneca 6. Uranium Processing and Nuclear Industry: – Applications: Uranium hexafluoride handling equipment, pump components, valve parts and fasteners – Customers: Areva, Westinghouse, Rosatom, China National Nuclear Corporation |
| Customer Requirements in This Industry | 1. Performance Requirements:
– Hydrofluoric Acid Resistance: Must resist corrosion from HF and all fluoride compounds – Seawater Corrosion Resistance: Must be immune to chloride-induced corrosion in seawater – Reducing Acid Resistance: Must resist corrosion from low-concentration sulfuric and hydrochloric acids – Mechanical Strength: Must maintain sufficient strength across the full operating temperature range – Cryogenic Toughness: Must maintain excellent toughness at subzero temperatures 2. Quality and Compliance Requirements: – Material Standard Compliance: Must meet all requirements of ASTM B164 and ASME SB164 – ASME B31.3 Compliance: Must comply with process piping code for chemical plant construction – Full Traceability: Must provide 100% traceability from raw material ore to finished product – Material Certification: Must provide comprehensive MTRs including chemical analysis and NDT results – Third-Party Inspection: Must allow inspection by TÜV, SGS, BV or other authorized organizations 3. Manufacturing Requirements: – Precision Dimensional Tolerances: Must meet tight tolerances for proper fit and assembly – Surface Quality: Must have a smooth, defect-free surface to prevent corrosion initiation – Internal Quality: Must be free from inclusions, porosity and segregation (100% UT verified) – Consistent Quality: Must have uniform chemical composition across all batches – Machinability: Must be easily machinable using conventional CNC equipment 4. Supply Chain Requirements: – Reliable Delivery: Must meet tight project schedules and plant turnaround deadlines – Emergency Response: Must provide expedited production for unplanned shutdowns – Small Batch Capability: Must produce small quantities for prototype development and maintenance – Global Supply Capability: Must deliver to chemical plants worldwide with consistent quality – Inventory Management: Must offer stock holding solutions to reduce customer inventory costs 5. Cost Requirements: – Competitive Pricing: Must offer fair pricing while maintaining the highest quality standards – Low Total Cost of Ownership: Must provide long service life and reduced maintenance costs – Value-Added Services: Must offer cutting, turning, milling and heat treatment services |
| Common Related Products in This Industry | 1. Monel 400 Round Bars: Diameters 6mm-300mm in annealed and cold drawn conditions
2. Monel 400 Square/Rectangular Bars: Custom sizes for structural applications and machine components 3. Monel 400 Hexagonal Bars: Used for manufacturing nuts, bolts, screws and other threaded fasteners 4. Monel 400 Forgings: Custom forgings including pump bodies, valve casings, flanges and impellers 5. Monel 400 Fasteners: Bolts, nuts, screws, studs and washers for severe corrosion service 6. Monel 400 Welding Materials: Electrodes, wires and filler metals for chemical industry welding 7. Monel 400 Machined Components: Precision-machined shafts, pins, valves and pump parts 8. Monel 400 Sheets and Plates: Used for manufacturing tanks, vessels and heat exchangers 9. Monel 400 Pipes and Tubes: Used for chemical process piping and heat exchangers 10. Custom Fabricated Assemblies: Pre-fabricated pump and valve components |
| Why Choose Us (Emily PIPE) | 1. 20+ Years of Chemical Alloy Expertise: We have been supplying high-performance Monel 400 bar products to the global chemical industry for over 20 years
2. Dedicated Chemical Grade Production Line: We operate a dedicated clean production line for Monel 400 bars, ensuring strict control over chemical composition 3. Full-Process Quality Control: We implement comprehensive quality control including 100% ultrasonic and magnetic particle testing 4. Complete International Certifications: Our products meet all major international standards and hold ASTM, ASME, PED and ISO 9001 certifications 5. Advanced Customization Capability: We can produce custom sizes, lengths, tempers and surface finishes according to your drawings 6. Global Chemical Supply Chain Experience: We have extensive experience supplying to major chemical companies worldwide with reliable on-time delivery 7. Professional Technical Support: Our team of metallurgical engineers and corrosion specialists provides expert guidance on material selection 8. One-Stop Solution: We provide complete solutions from raw material supply to precision machining, reducing your supply chain complexity |
| Supplementary Industry Information | 1. Comprehensive Test Reports: Each batch comes with a full MTR including chemical analysis, mechanical properties and NDT results. Corrosion test reports available upon request
2. Full Material Traceability: Every bar has a unique heat number and complete traceability documentation from raw material to finished product 3. Value-Added Processing: We offer precision cutting, CNC turning, milling, grinding and heat treatment services 4. Prototype Development Support: We support small batch prototype orders with fast turnaround times 5. Emergency Response Service: We provide 24/7 emergency service for unplanned plant shutdowns with expedited shipping 6. Market Growth: The global Monel 400 bar market is projected to grow at a CAGR of over 4% through 2030, driven by increasing demand from fluorochemical and marine industries 7. Sustainability Commitment: All our products are manufactured using sustainable practices and are 100% recyclable |
| Packaging | 1. Plastic Caps: All bar ends are protected with heavy-duty polyethylene caps to prevent damage and contamination
2. Waterproof Film: Each bar is individually wrapped in waterproof and anti-corrosion film 3. Bundle Packing: Bars of the same size are bundled with steel straps and wooden spacers to prevent contact damage 4. Wooden Case: Bundles are packed in sturdy fumigated wooden cases with steel reinforcement for international shipping 5. Export Standard Packing: All packaging complies with international export standards and ISPM 15 regulations 6. Marking: Each package is clearly marked with product specifications, heat number, quantity and destination |
Looking for inconel bar? Send us your size, quantity and application. We will provide a suitable solution and competitive quotation.
