Monel 400/Alloy 825 for electric power industry form a complementary dual-alloy solution covering 90% of medium-temperature corrosion scenarios in power generation. Monel 400 is the gold standard for seawater and hydrofluoric acid service, while Alloy 825 delivers exceptional performance in sulfuric acid and chloride-containing environments, providing the optimal balance of durability and cost-effectiveness for power plants.

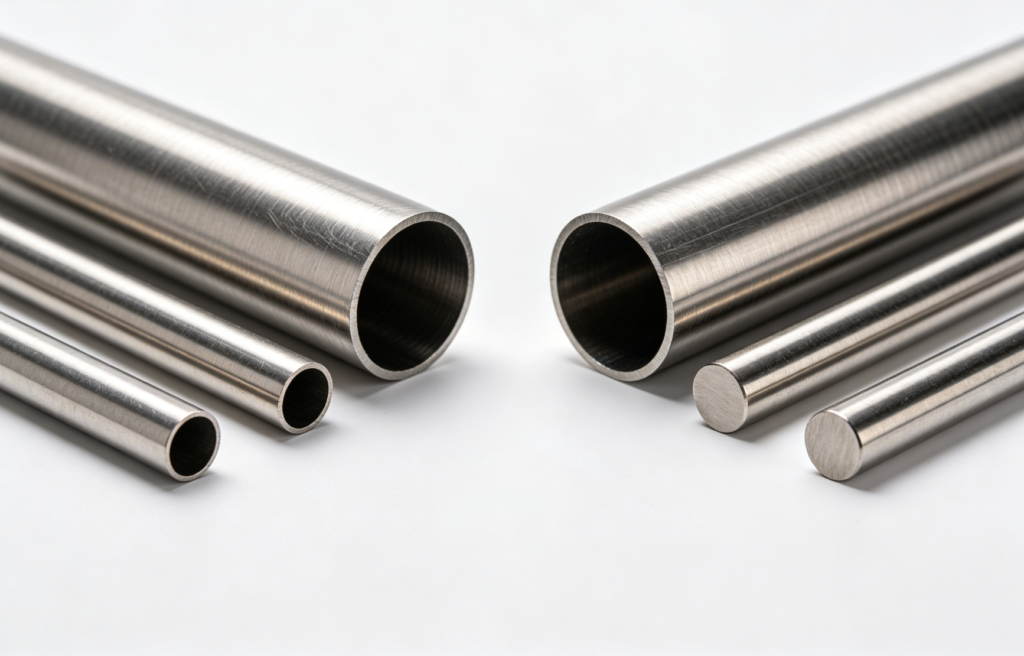

As the most widely used cost-effective nickel alloys in power generation, both alloys require no post-weld heat treatment to maintain full corrosion resistance. With over 20 years of production experience, Emily PIPE supplies precision-manufactured Monel 400/Alloy 825 seamless pipes, tubes and bars that meet the strictest international power industry standards.
| Item | Details |
|---|---|
| Executive Standards | 1. International Material Standards: ASTM B165/B164 (Monel 400), ASTM B423/B473 (Alloy 825), ASME SB165/SB423
2. Power Piping Standards: ASME B31.1 (Power Piping), ASME B31.3 3. Nuclear Power Standards: ASME Section III, NQA-1 4. Pressure Vessel Standards: ASME Section I (Power Boilers), ASME Section VIII Div.1 5. Testing Standards: ASTM E8, ASTM G48 (Pitting/Crevice), ASTM E243 (Eddy Current) |
| Material Grade | 1. Monel 400 (UNS N04400): W.Nr.2.4360, NiCu30Fe
2. Alloy 825 (UNS N08825): W.Nr.2.4858, NiFe30Cr21Mo3Cu 3. Equivalent Grades: NS3301/NS1402 (China), Monel 400/Incoloy 825 (USA) 4. Special Grades: Nuclear grade; seawater service grade; precision ground grade |
| Chemical Composition (Weight %) | Monel 400: Ni≥63.0, Cu28.0-34.0, Fe≤2.5, C≤0.3, Mn≤2.0
Alloy 825: Ni38.0-46.0, Cr19.5-23.5, Mo2.5-3.5, Cu1.5-3.0, Ti0.6-1.2, Fe=Balance Note: Ni-Cu matrix in Monel 400 provides unique HF resistance; Ti stabilization in Alloy 825 eliminates intergranular corrosion |
| Mechanical Properties (Annealed State) | Monel 400: Tensile 480-700MPa, Yield≥170MPa, Elongation≥35%, HB110-170
Alloy 825: Tensile 585-795MPa, Yield≥240MPa, Elongation≥30%, HB130-200 Max Service Temp: Monel 400 480℃; Alloy 825 425℃ continuous |
| Dimensional Tolerance | 1. Seamless Pipes/Tubes: Ø6-50mm±0.15mm; Ø50-150mm±0.3mm; Wall±0.08-0.12mm
2. Bars/Rods: Ø6-50mm±0.3mm; Ø50-150mm±0.5mm; Ø150-300mm±0.8mm 3. U-Bend Tubes: Bend radius±0.5mm; Ovality≤3% of OD 4. Length Tolerance: ±2mm (1-12m); custom lengths up to 18m available |
| Why This Material Is Used in Electric Power Industry | 1. Unmatched Seawater Cooling Performance:
– Monel 400 is the only alloy that resists both corrosion and biofouling in high-velocity seawater – Corrosion rate <0.05mm/year in flowing seawater vs. >1mm/year for 316L – Immune to chloride-induced SCC, eliminating the most common condenser tube failure mode 2. Superior Acid Resistance: – Alloy 825: Specifically formulated for 20-40% boiling sulfuric acid, the most corrosive range for stainless steels – Monel 400: The only commercial alloy resistant to hydrofluoric acid at all concentrations and temperatures – Both alloys resist phosphoric acid, nitric acid and alkaline solutions 3. Proven Nuclear Power Reliability: – Monel 400: Used for uranium hexafluoride (UF₆) handling equipment in nuclear fuel processing – Alloy 825: ASME Section III certified for nuclear reactor auxiliary systems and radioactive waste handling – Excellent resistance to boric acid and radiation-induced embrittlement 4. Excellent FGD System Performance: – Alloy 825 resists the mixed acid environment (H₂SO₄+HCl+HF) in flue gas desulfurization systems – Ideal for FGD slurry piping, heat exchangers and mist eliminator supports – Service life 5-10 times longer than 316L stainless steel 5. Superior Cost-Effectiveness: – 40-50% lower material cost than Hastelloy C276 – 5-10 times longer service life than 316L stainless steel – Reduces total cost of ownership by 60-70% compared to stainless steel |
| Application Scenarios and Corresponding Customers | 1. Coastal Power Plant Cooling Systems:
– Applications: Seawater intake piping, condenser tubes, heat exchanger tubes, cooling water systems – Customers: GE Power, Siemens Energy, Mitsubishi Heavy Industries, State Grid Corporation, China Energy Investment 2. Nuclear Power Generation: – Applications: UF₆ handling piping, steam generator tubes, condenser tubes, radioactive waste piping – Customers: Westinghouse, Areva, Rosatom, China National Nuclear Corporation, China General Nuclear Power Group 3. Flue Gas Desulfurization (FGD) Systems: – Applications: Slurry piping, heat exchanger tubes, spray headers, mist eliminator supports – Customers: DuPont Water Solutions, Veolia, SUEZ, local power generation groups 4. Fossil Fuel Power Generation: – Applications: Feedwater heater tubes, condensate piping, acid waste handling systems, heat exchanger tubes – Customers: Babcock & Wilcox, Hitachi Zosen, Shanghai Electric, Dongfang Electric 5. Gas Turbine Combined Cycle: – Applications: Sour gas processing piping, acid gas removal systems, heat exchanger tubes – Customers: General Electric, Siemens, Mitsubishi Heavy Industries, Ansaldo Energia |
| Customer Requirements in This Industry | 1. Performance Requirements:
– Seawater Corrosion Resistance: Must resist corrosion and biofouling in flowing seawater – Acid Resistance: Must withstand sulfuric acid, hydrofluoric acid and mixed acid environments – Chloride SCC Resistance: Must be immune to stress corrosion cracking in chloride-containing water – Cryogenic Toughness: Must maintain excellent toughness at subzero temperatures – Radiation Resistance: Must withstand neutron radiation in nuclear applications 2. Quality and Compliance Requirements: – ASME Code Compliance: Must meet all requirements of ASME Section I, III and B31.1 – NACE Certification: Must provide NACE MR0175 certification for sour service – Nuclear Quality Assurance: Must comply with NQA-1 for nuclear applications – Full Traceability: Must provide 100% traceability from raw material to finished product – Third-Party Inspection: Must allow inspection by TÜV, SGS, BV or authorized organizations 3. Manufacturing Requirements: – Precision Dimensional Tolerances: Must meet tight tolerances for proper fit and assembly – Surface Quality: Must have smooth, defect-free surfaces to prevent corrosion initiation – Internal Quality: Must be free from inclusions, porosity and segregation (100% UT/ET verified) – Consistent Quality: Must have uniform chemical composition across all batches – Cleanliness Requirements: Must meet strict cleanliness standards for nuclear applications |
| Common Related Products in This Industry | 1. Monel 400/Alloy 825 Seamless Pipes/Tubes: For condenser tubes, heat exchangers and process piping
2. Monel 400/Alloy 825 Welded Pipes: Cost-effective for large-diameter FGD and cooling water piping 3. Monel 400/Alloy 825 Bars/Rods: For manufacturing fasteners, valve stems, shafts and structural components 4. Monel 400/Alloy 825 Fittings: Elbows, tees, reducers, flanges and couplings for power plant piping systems 5. Monel 400/Alloy 825 Forgings: Custom forgings including valve bodies, pump casings and header components 6. Monel 400/Alloy 825 Fasteners: Bolts, nuts, screws, studs and washers for corrosion service 7. Monel 400/Alloy 825 Welding Materials: ERNiCu-7 (Monel 400) and ERNiFeCr-1 (Alloy 825) electrodes/wires 8. Monel 400/Alloy 825 Sheets and Plates: For manufacturing tanks, vessels and heat exchangers 9. Monel 400/Alloy 825 Machined Components: Precision-machined valves, fittings and heat exchanger parts 10. Custom Fabricated Assemblies: Pre-fabricated piping spools and heat exchanger bundles |
| Why Choose Us (Emily PIPE) | 1. 20+ Years of Power Industry Alloy Expertise: We have supplied Monel/Alloy 825 products to over 150 power plants worldwide
2. ASME Nuclear Certified Production Facility: Our production line meets the strictest nuclear quality standards 3. Full-Process Quality Control: We implement 100% ultrasonic, eddy current and hydrostatic testing on all products 4. Complete International Certifications: Our products hold ASTM, ASME, PED, NACE and nuclear certifications 5. Advanced Customization Capability: We can produce custom sizes, lengths and end processing per your drawings 6. Global Power Supply Chain Experience: We have extensive experience delivering to major power companies worldwide 7. Professional Technical Support: Our metallurgical engineers provide expert material selection guidance 8. One-Stop Solution: We provide complete solutions from raw material supply to pre-fabricated assemblies |
| Supplementary Industry Information | 1. Comprehensive Test Reports: Each batch comes with a full MTR including chemical analysis, mechanical properties and NDT results. Corrosion test reports available upon request
2. Full Material Traceability: Every product has a unique heat number and complete traceability documentation 3. Value-Added Processing: We offer precision cutting, CNC bending, welding, end processing and surface finishing 4. Prototype Development Support: We support small batch prototype orders with fast turnaround times 5. Emergency Response Service: We provide 24/7 emergency service for unplanned power plant shutdowns 6. Market Growth: The global Monel/Alloy 825 market for power generation is projected to grow at a CAGR of over 5% through 2030, driven by coastal nuclear power development and FGD system upgrades 7. Sustainability Commitment: All our products are manufactured using sustainable practices and are 100% recyclable |
| Packaging | 1. Plastic Caps: All pipe/bar ends are protected with heavy-duty polyethylene caps with internal sealing rings
2. Waterproof Film: Each product is individually wrapped in waterproof and anti-corrosion film 3. Bundle Packing: Products of the same size are bundled with steel straps and wooden spacers 4. Wooden Case: Bundles are packed in sturdy fumigated wooden cases with steel reinforcement 5. Export Standard Packing: All packaging complies with international export standards and ISPM 15 regulations 6. Marking: Each package is clearly marked with product specifications, heat number, quantity and destination |
Looking for Monel or Alloy 825 pipe or bar? Send us your size, quantity and application. We will provide a suitable solution and competitive quotation.
