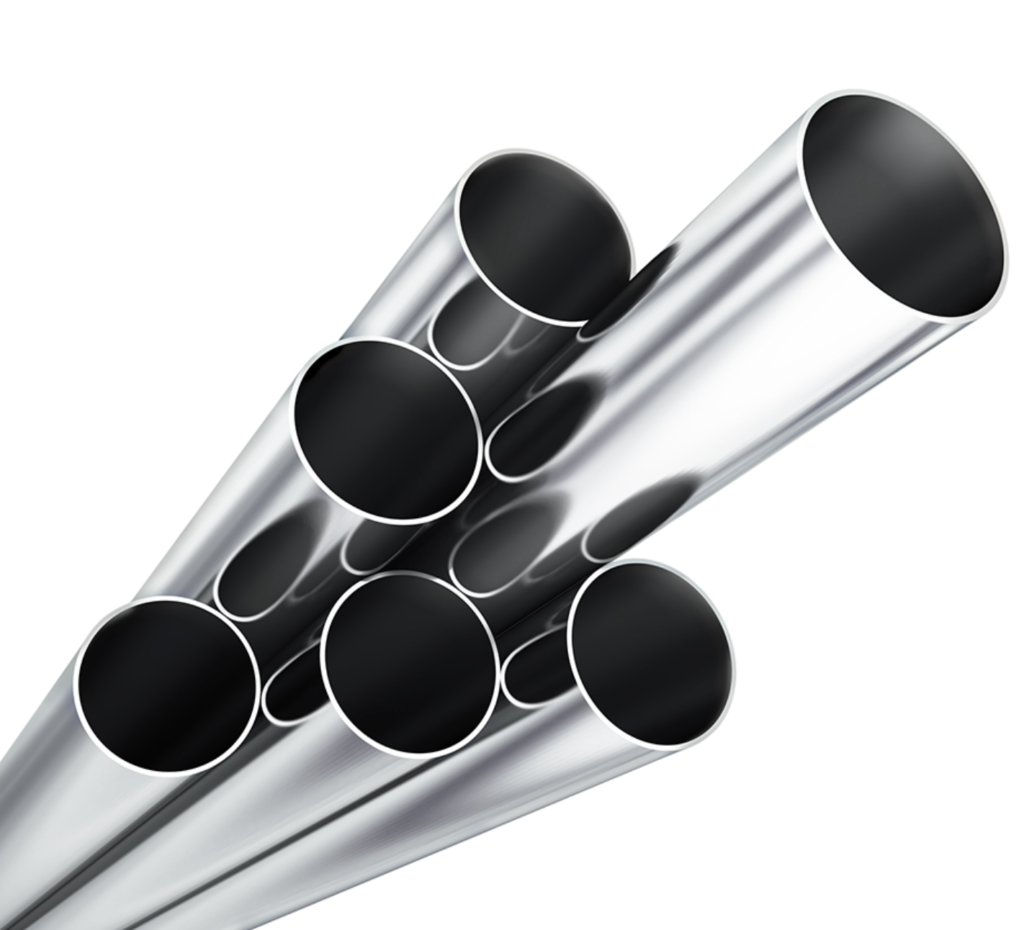

Inconel 625 (UNS N06625) pipe for chemical industry is a niobium-molybdenum stabilized nickel-chromium superalloy pipe, renowned for its unmatched resistance to chloride-induced corrosion and high-temperature strength. Specially engineered for the most severe chemical processing conditions, it provides exceptional durability in high-temperature acidic gas, seawater and mixed chemical environments where other alloys fail prematurely.
As the industry-standard material for critical high-temperature corrosion service, Inconel 625 pipe requires no post-weld heat treatment to maintain full corrosion resistance. With over 20 years of production experience, Emily PIPE supplies precision-manufactured Inconel 625 seamless and welded pipes that meet the strictest international chemical industry standards and project requirements.
| Item | Details |
|---|---|
| Executive Standards | 1. International Material Standards: ASTM B444 (Seamless Pipe), ASTM B446 (Welded Pipe), ASME SB444, ASME SB446, DIN 17751, EN 2.4856
2. Chemical Piping Standards: ASME B31.3 (Process Piping), ASME B31.4 3. Pressure Vessel Standards: ASME Section VIII Div.1, PED 2014/68/EU 4. Testing Standards: ASTM E8, ASTM E23, ASTM E10, ASTM G48, ASTM E243 5. Quality Management Standards: ISO 9001, ISO 14001, OHSAS 18001 |
| Material Grade | 1. Main Grade: Inconel 625 (Niobium-Molybdenum Stabilized Nickel-Chromium Alloy, Severe Corrosion Chemical Grade)
2. International Designations: UNS N06625, W.Nr.2.4856, Alloy 625, NiCr22Mo9Nb 3. Equivalent Grades: NS3306 (China), Inconel 625 (USA), Nicrofer 6020 (Germany) 4. Special Grades: Seamless grade for high-pressure applications; LCF grade for high-cycle fatigue; ultra-low sulfur grade for maximum weldability |
| Chemical Composition (Weight %) | 1. Nickel (Ni): 58.0% minimum (base element for corrosion resistance)
2. Chromium (Cr): 20.0-23.0 (for oxidation and oxidizing acid resistance) 3. Molybdenum (Mo): 8.0-10.0 (for reducing acid and pitting resistance) 4. Niobium + Tantalum (Nb+Ta): 3.15-4.15 (stabilizes against intergranular corrosion) 5. Iron (Fe): ≤5.0 (improves formability and cost-effectiveness) 6. Carbon (C): ≤0.010 (ultra-low content prevents intergranular corrosion) 7. Silicon (Si): ≤0.50 8. Manganese (Mn): ≤0.50 9. Phosphorus (P): ≤0.015 10. Sulfur (S): ≤0.010 |
| Mechanical Properties (Annealed State) | 1. Tensile Strength (RT): 760-930 MPa
2. 0.2% Yield Strength (RT): ≥415 MPa 3. Elongation (δ5): ≥45% 4. Reduction of Area: ≥55% 5. Hardness (HB): 180-230 6. Tensile Strength (600℃): ≥520 MPa 7. Tensile Strength (800℃): ≥320 MPa 8. Creep Rupture Strength (650℃, 1000h): ≥170 MPa 9. Modulus of Elasticity: 208 GPa 10. Maximum Continuous Service Temperature: 650℃ |
| Dimensional Tolerance | 1. Seamless Pipes: Ø6-50mm ±0.15mm; Ø50-150mm ±0.3mm; Ø150-300mm ±0.5mm; Wall thickness ±0.08-0.12mm
2. Welded Pipes: Ø10-200mm ±0.2mm; Wall thickness ±0.10mm 3. U-Bend Pipes: Bend radius ±0.5mm; Ovality at bend ≤3% of OD 4. Length Tolerance: ±2mm (1-12m); custom lengths up to 18m available |
| Why This Material Is Used in Chemical Industry | 1. Unmatched Chloride Corrosion Resistance:
– Exceptional resistance to chloride-induced pitting, crevice corrosion and SCC, even at elevated temperatures – Outperforms 316L stainless steel by 50+ times and Alloy 20 by 10+ times in high-chloride environments – Immune to sulfide stress corrosion cracking (SSCC) in sour oil and gas environments containing H2S and CO2 2. Superior High-Temperature Performance: – Maintains excellent mechanical strength and corrosion resistance up to 650℃, ideal for high-temperature chemical processes – Forms a stable chromium oxide layer that resists oxidation and spalling during thermal cycling – Excellent creep resistance for long-term operation at elevated temperatures and pressures 3. No Post-Weld Heat Treatment Required: – Niobium stabilization eliminates carbide precipitation in weld heat-affected zones – Retains 100% corrosion resistance after welding without post-weld heat treatment – Reduces fabrication costs by 30-40% and shortens project timelines significantly 4. Broad Chemical Compatibility: – Excellent resistance to oxidizing and reducing acids, alkaline solutions, salts and organic solvents – Resists corrosion from seawater, brine solutions and marine atmospheres – Suitable for multi-chemical process environments with varying operating conditions 5. Proven Long-Term Reliability: – Over 50 years of proven performance in the most severe chemical processing applications – Service life of 20+ years in most chemical environments, significantly reducing maintenance costs – Extensively tested and qualified by all major global chemical and petrochemical companies |
| Application Scenarios and Corresponding Customers | 1. Petrochemical and Refining Industry:
– Applications: Sour gas processing lines, hydrocracking unit piping, catalytic reforming systems, acid gas removal units, heat exchanger tubes and high-pressure process piping – Customers: ExxonMobil, Shell, BP, Chevron, TotalEnergies, Saudi Aramco, Sinopec 2. Chlor-Alkali and Chlorine Processing Industry: – Applications: Chlorine gas piping, brine heater tubes, hypochlorite production lines, electrolyzer components and acid transfer lines – Customers: Dow Chemical, Olin Corporation, Westlake Chemical, Shin-Etsu Chemical, Solvay, BASF 3. Pharmaceutical and Fine Chemical Industry: – Applications: High-temperature reactor piping, heat exchanger tubes, solvent recovery systems, acid handling systems and clean process piping – Customers: Pfizer, Novartis, Merck, Roche, Johnson & Johnson, AstraZeneca 4. Seawater Desalination and Marine Chemical Industry: – Applications: Seawater heat exchangers, reverse osmosis system piping, brine processing lines and marine chemical plant piping – Customers: Siemens Energy, GE Power, DuPont Water Solutions, Veolia, SUEZ 5. Environmental Protection Industry: – Applications: Flue gas desulfurization systems, waste incineration piping, scrubber internals and wastewater treatment lines – Customers: Mitsubishi Heavy Industries, Babcock & Wilcox, Ecolab, Xylem 6. Fertilizer and Agrochemical Industry: – Applications: Phosphoric acid production piping, nitric acid plant components, fertilizer processing lines and heat exchanger tubes – Customers: Yara International, Nutrien, Mosaic, CF Industries, OCP Group, Sinochem |
| Customer Requirements in This Industry | 1. Performance Requirements:
– Chloride Corrosion Resistance: Must resist pitting, crevice corrosion and SCC in high-chloride environments – Sulfide Corrosion Resistance: Must withstand SSCC in sour oil and gas environments – High-Temperature Strength: Must maintain sufficient strength at operating temperatures up to 650℃ – Intergranular Corrosion Resistance: Must resist intergranular corrosion after welding – Pressure Resistance: Must withstand operating pressures up to 200 bar in high-pressure chemical processes 2. Quality and Compliance Requirements: – Material Standard Compliance: Must meet all requirements of ASTM B444, ASTM B446 and ASME SB444 – ASME B31.3 Compliance: Must comply with process piping code for chemical plant construction – Full Traceability: Must provide 100% traceability from raw material ore to finished product – Material Certification: Must provide comprehensive MTRs including chemical analysis and NDT results – Third-Party Inspection: Must allow inspection by TÜV, SGS, BV or other authorized organizations 3. Manufacturing Requirements: – Precision Dimensional Tolerances: Must meet tight tolerances for proper fit and assembly of piping systems – Surface Quality: Must have a smooth, defect-free surface to prevent corrosion initiation – Internal Quality: Must be free from inclusions, porosity and segregation (100% UT/ET verified) – Consistent Quality: Must have uniform chemical composition across all batches – Cleanliness Requirements: Must meet strict cleanliness standards for pharmaceutical and food applications 4. Supply Chain Requirements: – Reliable Delivery: Must meet tight project schedules and plant turnaround deadlines – Emergency Response: Must provide expedited production for unplanned shutdowns – Small Batch Capability: Must produce small quantities for prototype development and maintenance – Global Supply Capability: Must deliver to chemical plants worldwide with consistent quality – Inventory Management: Must offer stock holding solutions to reduce customer inventory costs 5. Cost Requirements: – Competitive Pricing: Must offer fair pricing while maintaining the highest quality standards – Low Total Cost of Ownership: Must provide long service life and reduced maintenance costs – Value-Added Services: Must offer cutting, bending, welding and end processing services |
| Common Related Products in This Industry | 1. Inconel 625 Seamless Pipes: Available in various sizes and wall thicknesses for high-pressure chemical applications
2. Inconel 625 Welded Pipes: Cost-effective solution for large-diameter and low-to-medium pressure applications 3. Inconel 625 U-Bend Pipes: Custom bent pipes for chemical heat exchangers and condensers 4. Inconel 625 Fittings: Elbows, tees, reducers, flanges and couplings for chemical piping systems 5. Inconel 625 Forgings: Custom forgings including valve bodies, pump casings and flanges 6. Inconel 625 Fasteners: Bolts, nuts, screws, studs and washers for severe corrosion service 7. Inconel 625 Welding Materials: Electrodes, wires and filler metals for chemical industry welding 8. Inconel 625 Machined Components: Precision-machined valves, fittings and heat exchanger parts 9. Inconel 625 Sheets and Plates: Used for manufacturing tanks, vessels and heat exchangers 10. Custom Fabricated Assemblies: Pre-fabricated piping spools and heat exchanger bundles |
| Why Choose Us (Emily PIPE) | 1. 20+ Years of Chemical Alloy Expertise: We have been supplying high-performance Inconel 625 pipe products to the global chemical industry for over 20 years
2. Dedicated Chemical Grade Production Line: We operate a dedicated clean production line for Inconel 625 pipes, ensuring strict control over chemical composition 3. Full-Process Quality Control: We implement comprehensive quality control including 100% ultrasonic, eddy current and hydrostatic testing 4. Complete International Certifications: Our products meet all major international standards and hold ASTM, ASME, PED and ISO 9001 certifications 5. Advanced Customization Capability: We can produce custom sizes, lengths, wall thicknesses and end processing according to your drawings 6. Global Chemical Supply Chain Experience: We have extensive experience supplying to major chemical companies worldwide with reliable on-time delivery 7. Professional Technical Support: Our team of metallurgical engineers and corrosion specialists provides expert guidance on material selection 8. One-Stop Solution: We provide complete solutions from raw material supply to pre-fabricated piping assemblies, reducing your supply chain complexity |
| Supplementary Industry Information | 1. Comprehensive Test Reports: Each batch comes with a full MTR including chemical analysis, mechanical properties and NDT results. Corrosion test reports available upon request
2. Full Material Traceability: Every pipe has a unique heat number and complete traceability documentation from raw material to finished product 3. Value-Added Processing: We offer precision cutting, CNC bending, welding, end processing and surface finishing services 4. Prototype Development Support: We support small batch prototype orders with fast turnaround times 5. Emergency Response Service: We provide 24/7 emergency service for unplanned plant shutdowns with expedited shipping 6. Market Growth: The global Inconel 625 pipe market for chemical industry is projected to grow at a CAGR of over 6% through 2030, driven by increasing demand from petrochemical and environmental protection industries 7. Sustainability Commitment: All our products are manufactured using sustainable practices and are 100% recyclable |
| Packaging | 1. Plastic Caps: All pipe ends are protected with heavy-duty polyethylene caps with internal sealing rings to prevent contamination
2. Waterproof Film: Each pipe is individually wrapped in waterproof and anti-corrosion film 3. Bundle Packing: Pipes of the same size are bundled with steel straps and wooden spacers to prevent contact damage 4. Wooden Case: Bundles are packed in sturdy fumigated wooden cases with steel reinforcement for international shipping 5. Export Standard Packing: All packaging complies with international export standards and ISPM 15 regulations 6. Marking: Each package is clearly marked with product specifications, heat number, quantity and destination |
Looking for inconel bar? Send us your size, quantity and application. We will provide a suitable solution and competitive quotation.
