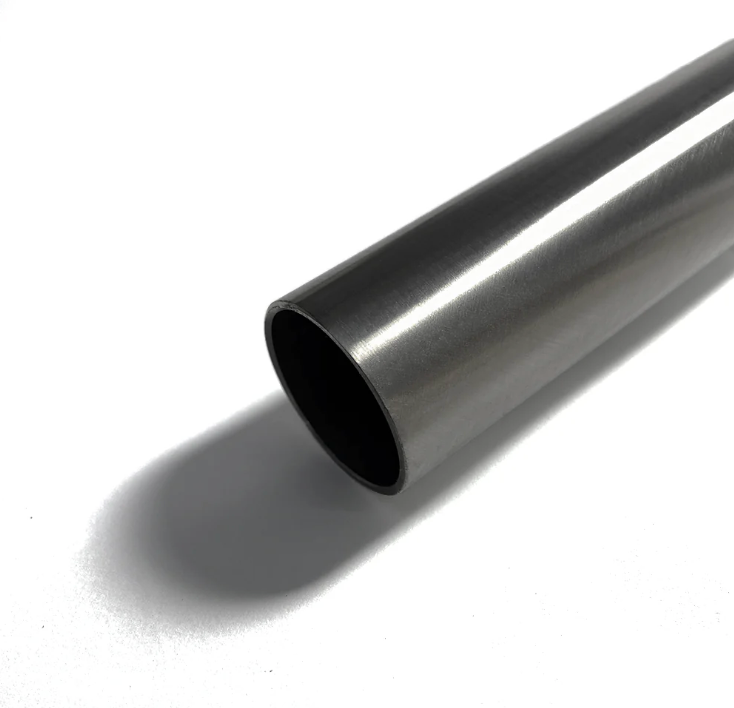

Inconel 625 Pipe for Aviation

2. International Material Standards: ASTM B444, ASTM B446, ASME SB444, ASME SB446, DIN 17751, EN 2.4856

3. Pressure Vessel Standards: ASME Section VIII Div. 1, PED 2014/68/EU

4. Testing Standards: ASTM E8, ASTM E23, ASTM E10, ASTM G48, ASTM E243, ASTM E1444 (Magnetic Particle)

5. Quality Management Standards: AS9100D, ISO 9001, ISO 14001, NADCAP (Non-Destructive Testing)

2. International Designations: UNS N06625, W.Nr. 2.4856, Alloy 625, NiCr22Mo9Nb

3. Equivalent Grades: NS3306 (China), Inconel 625 (USA), Nicrofer 6020 (Germany), fully compatible with all global aerospace manufacturing standards

4. Special Grades: Inconel 625LCF (Low Carbon Fatigue) for high-cycle fatigue applications; Inconel 625 Plus for enhanced high-temperature strength; ultra-low sulfur version for maximum weldability

2. Chromium (Cr): 20.0 – 23.0 (for oxidation resistance and high-temperature strength)

3. Molybdenum (Mo): 8.0 – 10.0 (for reducing acid resistance and crevice corrosion resistance)

4. Niobium + Tantalum (Nb+Ta): 3.15 – 4.15 (stabilizes against intergranular corrosion and enhances strength)

5. Iron (Fe): ≤5.0 (for improved formability and cost-effectiveness)

6. Cobalt (Co): ≤1.0

7. Carbon (C): ≤0.010 (ultra-low content to prevent intergranular corrosion and improve toughness)

8. Silicon (Si): ≤0.50

9. Manganese (Mn): ≤0.50

10. Phosphorus (P): ≤0.015

11. Sulfur (S): ≤0.005 (ultra-low content for enhanced weldability and fatigue resistance)

12. Aluminum (Al): ≤0.40

13. Titanium (Ti): ≤0.40

2. 0.2% Yield Strength (Room Temperature): ≥415 MPa

3. Elongation (δ5): ≥45% (excellent formability for complex aerospace components)

4. Reduction of Area: ≥55%

5. Hardness (HB): 180 – 230

6. Impact Toughness (Akv, Room Temperature): ≥220 J

7. Tensile Strength (600℃): ≥520 MPa

8. Tensile Strength (800℃): ≥320 MPa

9. Creep Rupture Strength (650℃, 1000h): ≥170 MPa

10. Modulus of Elasticity: 208 GPa

11. Thermal Expansion Coefficient: 12.8 × 10⁻⁶ /℃ (20-100℃)

12. Maximum Continuous Service Temperature: 980℃

– Outer Diameter 6mm – 50mm: ±0.15mm

– Outer Diameter 50mm – 150mm: ±0.3mm

– Wall Thickness 0.5mm – 3mm: ±0.08mm

– Wall Thickness 3mm – 10mm: ±0.12mm

2. Welded Pipes:

– Outer Diameter 10mm – 100mm: ±0.2mm

– Wall Thickness 0.8mm – 5mm: ±0.10mm

3. U-Bend Pipes:

– Bend Radius Tolerance: ±0.5mm

– Ovality at Bend: ≤3% of outer diameter

4. Length Tolerance:

– Fixed Length (1m – 12m): ±2mm

– Custom Length up to 18m available

– Inconel 625 maintains full mechanical strength and oxidation resistance up to 980℃, making it the only viable material for components operating in the hot sections of modern jet engines.

– Forms a dense, adherent chromium oxide scale that resists spalling during extreme thermal cycling, preventing material degradation in combustion chambers and turbine sections.

– Superior creep resistance allows for long-term operation at high temperatures and stresses without deformation or failure, critical for aircraft engine components that must operate reliably for thousands of hours.

2. Exceptional Creep and Fatigue Resistance:

– Outstanding high-cycle fatigue resistance allows it to withstand millions of thermal and mechanical cycles encountered in aircraft engine operation, including takeoff, cruise and landing cycles.

– Excellent low-cycle fatigue resistance ensures reliability during rapid temperature changes and load variations.

– Superior creep-fatigue interaction resistance prevents premature failure in components subjected to combined high temperatures and cyclic loading.

3. Universal Corrosion Resistance for Aerospace Environments:

– Completely resistant to corrosion from all aviation fluids including jet fuels (Jet A, Jet A-1, JP-8), hydraulic fluids (Skydrol), lubricants and de-icing solutions.

– Excellent resistance to salt spray and marine atmospheres, critical for aircraft operating in coastal regions and naval aviation applications.

– Immune to pitting, crevice corrosion and stress corrosion cracking in chloride-containing environments.

– Resists high-temperature oxidation and sulfidation from engine exhaust gases.

4. Superior Weldability and Fabricability:

– The niobium addition stabilizes the alloy against intergranular corrosion in weld heat-affected zones, eliminating the need for post-weld heat treatment—a critical advantage in aerospace manufacturing.

– Excellent weldability with all conventional welding processes used in aerospace, including TIG, MIG, laser and electron beam welding.

– Retains 100% of its corrosion resistance and mechanical properties after welding, ensuring long-term reliability of welded joints.

– Excellent formability allows for the production of complex shapes such as curved ducts, manifolds and engine components without cracking or defects.

5. Outstanding Strength-to-Weight Ratio:

– Offers significantly higher strength than stainless steel at elevated temperatures while being only slightly heavier, resulting in substantial weight savings for aircraft structures.

– Higher strength allows for thinner wall sections and lighter components, improving fuel efficiency and payload capacity.

– Excellent structural efficiency makes it ideal for both engine and airframe applications where weight reduction is critical.

6. Proven Long-Term Reliability and Safety:

– Over 50 years of proven performance in commercial and military aviation applications, with an impeccable safety record.

– Extensively tested and qualified by all major aircraft and engine manufacturers.

– Excellent fracture toughness ensures that any potential defects will not propagate catastrophically, enhancing aircraft safety.

– Applications: Combustion chamber liners, fuel nozzles, turbine exhaust ducts, afterburner components, engine nacelles, thrust reversers, bleed air systems and engine mounts

– Customers: General Electric Aviation, Pratt & Whitney, Rolls-Royce, Safran Aircraft Engines, CFM International, IAE, Honeywell Aerospace

2. Airframe Structures:

– Applications: Wing leading edges, tail sections, landing gear components, hydraulic system lines, fuel system lines, environmental control system ducts and structural fasteners

– Customers: Boeing, Airbus, Embraer, Bombardier, Gulfstream, Dassault Aviation, Lockheed Martin, Boeing Defense

3. Aerospace Hydraulic and Pneumatic Systems:

– Applications: High-pressure hydraulic lines, pneumatic system ducts, actuator components, valve bodies, manifold assemblies and pressure vessels

– Customers: Parker Hannifin, Eaton Aerospace, Moog Inc., Safran Landing Systems, UTC Aerospace Systems

4. Aerospace Fuel Systems:

– Applications: Fuel lines, fuel manifolds, fuel injector components, fuel pump housings and fuel tank components

– Customers: Parker Hannifin, Eaton Aerospace, Woodward, Safran Electrical & Power

5. Environmental Control Systems (ECS):

– Applications: Air conditioning ducts, heat exchanger tubes, bleed air ducts, cabin pressurization systems and de-icing system components

– Customers: Collins Aerospace, Safran Cabin, Liebherr Aerospace

6. Space and Missile Systems:

– Applications: Rocket engine components, thrust chambers, nozzle extensions, fuel lines, oxidizer lines and structural components for launch vehicles and satellites

– Customers: SpaceX, NASA, Blue Origin, United Launch Alliance, Northrop Grumman, Raytheon

– High-Temperature Strength: Must maintain sufficient strength and ductility across the entire operating temperature range (-253℃ to 980℃).

– Creep and Fatigue Resistance: Must withstand thousands of hours of high-temperature operation and millions of thermal and mechanical cycles without failure.

– Corrosion Resistance: Must resist corrosion from all aviation fluids, salt spray and high-temperature exhaust gases for the entire service life of the aircraft (up to 30 years).

– Fracture Toughness: Must have excellent fracture toughness to prevent catastrophic failure in critical components.

– Weldability: Must be easily weldable without post-weld heat treatment while retaining full mechanical properties.

– Pressure Resistance: Must withstand operating pressures up to 350 bar in hydraulic and fuel systems.

2. Quality and Compliance Requirements:

– AS9100 Certification: Must comply with the AS9100 aerospace quality management system standard.

– AMS Standard Compliance: Must meet all requirements of the applicable AMS aerospace material specifications.

– Full Material Traceability: Must provide 100% traceability from raw material ore to finished product, including all processing steps and test results.

– NADCAP Certification: Non-destructive testing must be performed by NADCAP-accredited facilities.

– First Article Inspection (FAI): Must provide complete first article inspection reports for all new parts.

– Material Certification: Must provide comprehensive material test reports (MTR) with each shipment, including chemical analysis, mechanical properties and non-destructive test results.

3. Manufacturing Requirements:

– Precision Dimensional Tolerances: Must meet extremely tight dimensional tolerances to ensure proper fit and assembly in aircraft systems.

– Surface Quality: Must have a smooth, defect-free surface to prevent fatigue crack initiation.

– Consistent Quality: Must have uniform chemical composition and mechanical properties across all batches to ensure consistent manufacturing performance.

– Cleanliness Requirements: Must meet strict cleanliness standards to prevent contamination of aircraft systems.

– Custom Fabrication Capability: Must be able to produce custom sizes, shapes and configurations according to customer drawings.

4. Supply Chain Requirements:

– Reliable Delivery: Must provide on-time delivery to support aircraft production schedules.

– Long-Term Supply Assurance: Must be able to provide a stable supply of material for the entire lifecycle of aircraft programs (up to 50 years).

– Small Batch Capability: Must be able to produce small batch quantities for prototype development and spare parts.

– Global Supply Capability: Must be able to supply to manufacturing facilities worldwide with consistent quality and lead times.

– Emergency Response: Must be able to respond quickly to unexpected demand spikes and AOG (Aircraft On Ground) situations.

5. Cost Requirements:

– Competitive Pricing: Must offer competitive pricing while maintaining the highest quality standards.

– Low Total Cost of Ownership: Must provide lower total cost of ownership through longer service life, reduced maintenance and fewer replacement costs.

– Value-Added Services: Must offer value-added services such as cutting, bending, welding and machining to reduce customer manufacturing costs.

2. Inconel 625 Welded Pipes: Cost-effective solution for large-diameter and low-to-medium pressure applications

3. Inconel 625 U-Bend Pipes: Custom bent pipes for aerospace heat exchangers and ECS systems

4. Inconel 625 Fittings: Elbows, tees, reducers, flanges and couplings for aerospace piping systems

5. Inconel 625 Forgings: Custom forgings including valve bodies, flanges, engine mounts and structural components

6. Inconel 625 Fasteners: Bolts, nuts, screws, studs and washers for high-temperature and corrosion-resistant aerospace applications

7. Inconel 625 Welding Materials: Electrodes, wires and filler metals specifically formulated for aerospace welding applications

8. Inconel 625 Machined Components: Precision-machined parts including valves, fittings, nozzles and sensor housings

9. Inconel 625 Sheets and Plates: Used for manufacturing engine nacelles, heat shields and structural components

10. Custom Fabricated Assemblies: Pre-fabricated engine components, ducting systems and manifold assemblies

2. AS9100 Certified: Our production facilities are fully certified to AS9100D, the international standard for aerospace quality management systems.

3. Dedicated Aerospace Production Line: We operate a dedicated clean production line for aerospace-grade Inconel 625 pipes, ensuring strict control over chemical composition, mechanical properties and surface quality.

4. Full-Process Quality Control: We implement a comprehensive quality control system from raw material inspection to finished product testing, including 100% ultrasonic testing, eddy current testing and hydrostatic testing for all aerospace-grade pipes.

5. AMS Standard Compliance: All our products are manufactured in strict accordance with AMS 5581, AMS 5599 and other applicable aerospace material standards.

6. Advanced Customization Capability: We can produce custom sizes, lengths, wall thicknesses and end processing according to your drawings and technical specifications, including complex U-bend and coiled pipes.

7. Global Aerospace Supply Chain Experience: We have extensive experience supplying to major aircraft and engine manufacturers worldwide, with reliable logistics partners ensuring on-time delivery to manufacturing facilities anywhere in the world.

8. Professional Aerospace Technical Support: Our team of metallurgical engineers and aerospace specialists provides expert guidance on material selection, design optimization and manufacturing techniques for aerospace applications.

2. Full Material Traceability: Every pipe comes with a unique heat number and complete traceability documentation from raw material ore to finished product, meeting the strictest aerospace industry requirements.

3. Value-Added Processing: We offer comprehensive value-added services including precision cutting, CNC bending, welding, end processing and surface finishing, providing ready-to-install aerospace components.

4. Prototype Development Support: We support small batch prototype orders with fast turnaround times to help you accelerate product development and testing for new aerospace programs.

5. Long-Term Supply Assurance: We maintain strategic inventory levels to ensure a stable supply of material for the entire lifecycle of aircraft programs.

6. AOG Emergency Service: We provide 24/7 emergency response service for Aircraft On Ground (AOG) situations, with expedited production and shipping available.

7. Market Growth: The global aerospace Inconel 625 market is projected to grow at a CAGR of over 7% through 2030, driven by increasing demand for new commercial aircraft, military aircraft and space launch vehicles.

8. Sustainability Commitment: All our products are manufactured using sustainable practices and are 100% recyclable, helping you meet your environmental targets and comply with global sustainability regulations.

2. Waterproof Film: Each pipe is individually wrapped in waterproof and anti-corrosion film to protect against moisture and rust

3. Bundle Packing: Pipes of the same size are bundled together with steel straps for easy handling and transportation

4. Wooden Case: Bundles are packed in sturdy fumigated wooden cases with steel reinforcement to prevent damage during international shipping

5. Export Standard Packing: All packaging complies with international export standards and ISPM 15 regulations for wooden packaging

6. Marking: Each package is clearly marked with product specifications, heat number, quantity, gross weight, net weight and destination information
