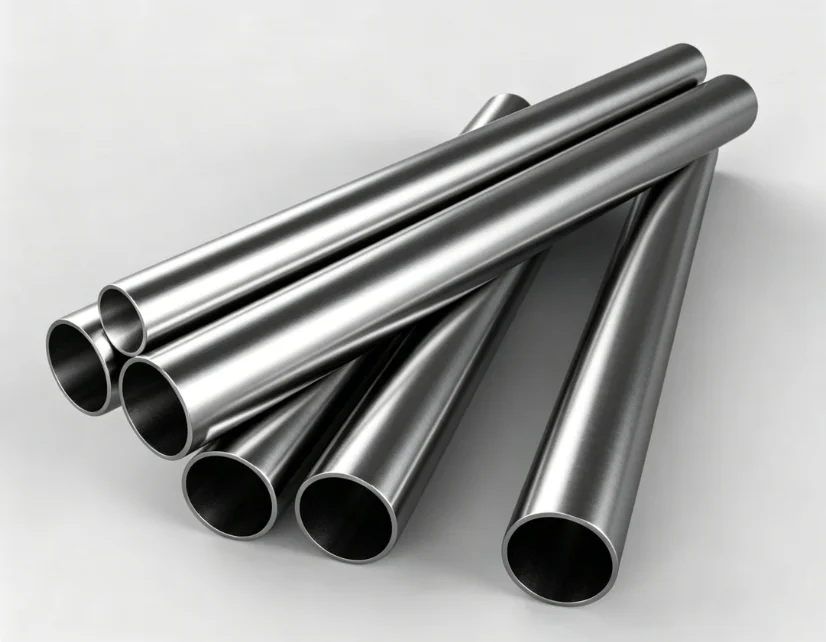

Inconel 625 (UNS N06625, W.Nr.2.4856) for ship manufacturing is the premium niobium-molybdenum strengthened nickel superalloy exclusively specified for extreme marine environments. It delivers an unmatched combination of PREN≥45 seawater corrosion resistance, cryogenic toughness down to -196℃ and high-temperature strength up to 980℃, making it the material of choice for LNG carriers, FPSOs, naval submarines and deep-sea exploration vessels.
As the only marine alloy that simultaneously resists chloride-induced SCC, sulfide stress cracking (SSC) and cavitation erosion, Inconel 625 eliminates the need for frequent maintenance and replacement in critical ship systems. Emily PIPE supplies classification society-certified Inconel 625 seamless pipes, bars, forgings and clad products with full traceability from double vacuum melted ingot to finished component.
| Item | Details |
|---|---|
| Executive Standards | 1. International Material Standards: ASTM B444 (Seamless Pipe/Tube), ASTM B446 (Bar/Rod), ASTM B564 (Forgings)
2. Marine Standards: ABS, DNV, LR, BV, CCS, RINA 3. Offshore Standards: NACE MR0175/ISO 15156-3, API 5LC 4. Pressure Vessel Standards: ASME Section VIII Div.1 5. Testing Standards: ASTM E8, ASTM G48 (Pitting/Crevice), ASTM E243 (Eddy Current) |
| Material Grade | 1. Standard Marine Grade: Inconel 625 (UNS N06625), solution annealed
2. Premium Marine Grade: VIM+VAR double vacuum melted, low residual elements 3. Clad Grade: Inconel 625 clad on carbon steel for large-diameter piping 4. Equivalent Grades: GH3625 (China), Nicrofer 6020 (Germany), Alloy 625 (USA) |
| Chemical Composition (Weight %) | 1. Nickel (Ni): 58.0% minimum (matrix stabilization and corrosion resistance)
2. Chromium (Cr): 20.0-23.0 (oxidation and pitting resistance) 3. Molybdenum (Mo): 8.0-10.0 (reducing acid and crevice corrosion resistance) 4. Niobium + Tantalum (Nb+Ta): 3.15-4.15 (solid solution strengthening, weld stabilization) 5. Iron (Fe): ≤5.0 (improves formability) 6. Carbon (C): ≤0.010 (ultra-low content prevents intergranular corrosion) 7. Manganese (Mn): ≤0.50, Silicon (Si): ≤0.50, Sulfur (S): ≤0.010 |
| Mechanical Properties (Solution Annealed) | 1. Tensile Strength (RT): 760-930 MPa
2. 0.2% Yield Strength (RT): ≥415 MPa 3. Elongation (δ5): ≥45% 4. Impact Toughness (-196℃): ≥120 J 5. Tensile Strength (650℃): ≥520 MPa 6. Maximum Continuous Service Temperature: 980℃ |
| Dimensional Tolerance | 1. Seamless Pipes/Tubes: Ø6-50mm ±0.15mm; Ø50-150mm ±0.3mm; Wall thickness ±0.08-0.12mm
2. Bars/Rods: Ø6-50mm ±0.3mm; Ø50-300mm ±0.6mm; Straightness ≤0.3mm/m 3. Forgings: Custom dimensions per drawing, tolerance ±0.5mm 4. Length Tolerance: ±2mm (1-12m); custom lengths up to 18m available |
| Why This Material Is Used in Ship Manufacturing | 1. Extreme Seawater Corrosion Resistance:
– PREN≥45, the highest among all commonly used marine nickel alloys – Corrosion rate <0.01mm/year in full immersion seawater, 1/20 of 316L stainless steel – Immune to chloride-induced SCC even at 150℃ and 1000 ppm chloride concentration 2. Unmatched LNG Cryogenic Performance: – Maintains full ductility and toughness down to -196℃ without brittle fracture – Excellent thermal stability with no phase transformation during cryogenic cycling – Used in LNG cargo tanks, piping systems and valve components 3. Superior Sour Service Resistance: – NACE MR0175 certified for H₂S partial pressures up to 100 psi – Resists sulfide stress cracking (SSC) and hydrogen-induced cracking (HIC) – Ideal for FPSO process piping and offshore oil and gas systems 4. Exceptional Fatigue and Creep Strength: – 2x longer fatigue life than Monel 400 in cyclic load applications – Excellent creep resistance for long-term service up to 650℃ – Withstands dynamic loads from wave action, vibration and ship motion 5. Superior Field Fabricability: – Excellent weldability with all conventional welding processes – No post-weld heat treatment required, critical for remote offshore installations – Reduces installation time and costs by 40-50% compared to other high-performance alloys |
| Application Scenarios and Corresponding Customers | 1. LNG Carriers and FSRUs:
– Applications: Cargo tank piping, cryogenic valves, pump shafts, heat exchanger tubes, reliquefaction systems – Customers: QatarEnergy, Shell LNG, MOL, NYK Line, China LNG Shipping, Samsung Heavy Industries 2. FPSOs and Offshore Platforms: – Applications: Process piping, risers, manifolds, seawater lift systems, fire water systems, flare stacks – Customers: ExxonMobil, Shell, BP, Chevron, TotalEnergies, China National Offshore Oil Corporation 3. Naval Vessels and Submarines: – Applications: Propulsion shafts, torpedo tubes, sonar dome fittings, seawater piping, exhaust systems – Customers: US Navy, Royal Navy, Chinese People’s Liberation Army Navy, French Navy 4. Deep-Sea Exploration Vessels: – Applications: ROV/AUV components, pressure hull penetrators, subsea instrumentation, sampling systems – Customers: Woods Hole Oceanographic Institution, China Ocean Mineral Resources R&D Association 5. Luxury Cruise Ships and Superyachts: – Applications: Exhaust systems, seawater cooling systems, high-performance propellers, deck hardware – Customers: Carnival Corporation, Royal Caribbean Group, Lürssen, Fincantieri |
| Customer Requirements in This Industry | 1. Performance Requirements:
– Seawater Corrosion Resistance: Must meet classification society corrosion rate standards – Cryogenic Toughness: Must maintain ductility at -196℃ for LNG applications – Sour Service Resistance: Must meet NACE MR0175 requirements for offshore applications – Fatigue Resistance: Must withstand cyclic loads from wave action and vibration – Weldability: Must be easily weldable without post-weld heat treatment 2. Quality and Compliance Requirements: – Classification Society Certification: Must provide ABS, DNV, LR or equivalent certification – NACE Certification: Must provide NACE MR0175 certification for sour service – Full Traceability: Must provide complete traceability from raw material to finished product – Third-Party Inspection: Must allow inspection by classification society surveyors – Material Certification: Must provide EN 10204 3.2 mill test reports 3. Manufacturing Requirements: – Double Vacuum Melting: Must use VIM+VAR process for critical components – Precision Dimensional Tolerances: Must meet tight tolerances for proper fit and assembly – Surface Quality: Must have smooth surfaces to reduce flow resistance and corrosion initiation – Non-Destructive Testing: Must undergo 100% UT, ET and hydrostatic testing – Customization: Must produce custom sizes and shapes per customer drawings |
| Common Related Products in This Industry | 1. Inconel 625 Seamless Pipes/Tubes: For cryogenic LNG piping, process piping and heat exchangers
2. Inconel 625 Welded Pipes: Cost-effective for large-diameter process and seawater piping 3. Inconel 625 Clad Pipes: Carbon steel base with Inconel 625 liner for large-diameter high-pressure lines 4. Inconel 625 Bars/Rods: For propeller shafts, valve stems, pump shafts and fasteners 5. Inconel 625 Forgings: Custom forgings including flanges, valve bodies, pump casings and manifolds 6. Inconel 625 Fasteners: High-strength bolts, nuts, screws and studs for marine applications 7. Inconel 625 Welding Materials: ERNiCrMo-3 electrodes and wires for marine welding 8. Inconel 625 Sheets and Plates: For tank liners, splash zone cladding and structural components 9. Inconel 625 U-Bend Tubes: Custom bent tubes for marine heat exchangers and condensers 10. Custom Fabricated Assemblies: Pre-fabricated piping spools and structural assemblies |
| Why Choose Us (Emily PIPE) | 1. 20+ Years of Marine Alloy Expertise: We have supplied Inconel 625 products to over 250 shipbuilding and offshore projects worldwide
2. Full Classification Society and NACE Certification: Our production line is certified by ABS, DNV, LR, BV, CCS and NACE 3. Full-Process Quality Control: We implement 100% ultrasonic, eddy current and hydrostatic testing on all products 4. Advanced Cladding Technology: We offer Inconel 625 clad pipes and plates for cost-effective large-scale applications 5. Strategic Inventory Management: We maintain 300+ tons of Inconel 625 inventory to support urgent ship repair requirements 6. Global Logistics Network: We have experience delivering to remote shipyards and offshore locations worldwide 7. Dedicated Marine Technical Team: Our metallurgical engineers specialize in marine material selection and failure analysis 8. One-Stop Solution: We provide complete solutions from raw material supply to finished machined components |
| Supplementary Industry Information | 1. Comprehensive Test Reports: Each batch comes with a full MTR including chemical analysis, mechanical properties, NDT results and corrosion test reports. Cryogenic impact test reports available upon request
2. Full Material Traceability: Every product has a unique heat number and complete traceability documentation from ingot to finished product 3. Value-Added Processing: We offer precision cutting, CNC bending, welding, end processing and surface finishing services 4. Emergency Response Service: We provide 24/7 emergency support for ship repair and dry dock requirements 5. Market Growth: The global Inconel 625 market for shipbuilding is projected to grow at a CAGR of over 7% through 2030, driven by LNG carrier and offshore wind farm construction 6. Sustainability Commitment: All our products are manufactured using sustainable practices and are 100% recyclable |
| Packaging | 1. Plastic Caps: All pipe/bar ends are protected with heavy-duty polyethylene caps with internal sealing rings to prevent contamination
2. Waterproof Film: Each product is individually wrapped in waterproof and anti-corrosion film 3. Bundle Packing: Products of the same size are bundled with steel straps and wooden spacers to prevent contact damage 4. Wooden Case: Bundles are packed in sturdy fumigated wooden cases with steel reinforcement for international shipping 5. Export Standard Packing: All packaging complies with international export standards and ISPM 15 regulations 6. Marking: Each package is clearly marked with product specifications, heat number, batch number, quantity and destination |
Looking for Inconel 625 pipe, bar or forging for shipbuilding or offshore applications? Send us your dimensions, application requirements and certification standards. We will provide a customized quotation and technical data sheet within 12 hours.
