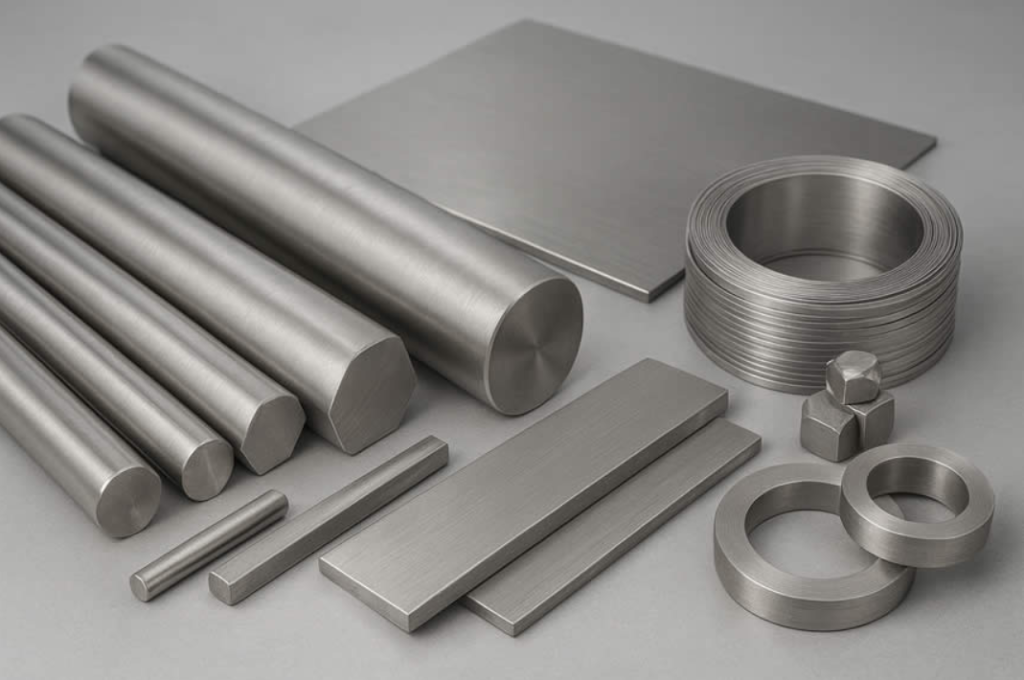

Inconel 625 (UNS N06625, W.Nr.2.4856) for marine & offshore industry is the global benchmark nickel superalloy for extreme subsea and topside applications. With a PREN value of ≥45, it delivers unmatched resistance to chloride-induced pitting, crevice corrosion and stress corrosion cracking, making it the only material that can reliably withstand 30+ years of service in deep-sea environments, sour oil & gas fields and offshore wind farms.
As the most widely specified alloy in offshore oil & gas production, Inconel 625 combines exceptional high-temperature strength up to 980℃ with cryogenic toughness down to -196℃. Emily PIPE supplies classification society-certified Inconel 625 seamless pipes, clad pipes, bars and forgings manufactured via double vacuum melting (VIM+VAR) that fully comply with NACE MR0175/ISO 15156 and API standards.
| Item | Details |
|---|---|
| Executive Standards | 1. International Material Standards: ASTM B444 (Seamless Pipe/Tube), ASTM B446 (Bar/Rod), ASTM B564 (Forgings)
2. Offshore Standards: NACE MR0175/ISO 15156-3, API 5LC, API 6A 3. Marine Standards: ABS, DNV, LR, BV, CCS, RINA 4. Pressure Vessel Standards: ASME Section VIII Div.1 5. Testing Standards: ASTM E8, ASTM G48 (Pitting/Crevice), ASTM E243 (Eddy Current) |
| Material Grade | 1. Standard Offshore Grade: Inconel 625 (UNS N06625), solution annealed
2. Premium Subsea Grade: VIM+VAR double vacuum melted, low residual elements 3. Clad Grade: Inconel 625 weld overlay on carbon steel for large-diameter piping 4. Equivalent Grades: GH3625 (China), Nicrofer 6020 (Germany), Alloy 625 (USA) |
| Chemical Composition (Weight %) | 1. Nickel (Ni): 58.0% minimum (matrix stabilization and corrosion resistance)
2. Chromium (Cr): 20.0-23.0 (oxidation and pitting resistance) 3. Molybdenum (Mo): 8.0-10.0 (reducing acid and crevice corrosion resistance) 4. Niobium + Tantalum (Nb+Ta): 3.15-4.15 (solid solution strengthening, weld stabilization) 5. Iron (Fe): ≤5.0 (improves formability) 6. Carbon (C): ≤0.010 (ultra-low content prevents intergranular corrosion) 7. Manganese (Mn): ≤0.50, Silicon (Si): ≤0.50, Sulfur (S): ≤0.010 |
| Mechanical Properties (Solution Annealed) | 1. Tensile Strength (RT): 760-930 MPa
2. 0.2% Yield Strength (RT): ≥415 MPa 3. Elongation (δ5): ≥45% 4. Impact Toughness (-196℃): ≥120 J 5. Tensile Strength (650℃): ≥520 MPa 6. Maximum Continuous Service Temperature: 980℃ |
| Dimensional Tolerance | 1. Seamless Pipes/Tubes: Ø6-50mm ±0.15mm; Ø50-150mm ±0.3mm; Wall thickness ±0.08-0.12mm
2. Clad Pipes: Ø100-1200mm ±1.0mm; Cladding thickness 3-10mm ±0.5mm 3. Bars/Rods: Ø6-50mm ±0.3mm; Ø50-300mm ±0.6mm; Straightness ≤0.3mm/m 4. Forgings: Custom dimensions per drawing, tolerance ±0.5mm 5. Length Tolerance: ±2mm (1-12m); custom lengths up to 18m available |
| Why This Material Is Used in Marine & Offshore Industry | 1. Unmatched Deep-Sea Corrosion Resistance:
– Withstands hydrostatic pressure at depths up to 6000 meters – Corrosion rate <0.01mm/year in full immersion seawater, 1/20 of 316L stainless steel – Immune to chloride-induced SCC even at 150℃ and 1000 ppm chloride concentration 2. Superior Sour Service Performance: – NACE MR0175 certified for H₂S partial pressures up to 100 psi – Resists sulfide stress cracking (SSC) and hydrogen-induced cracking (HIC) – Ideal for deep-water HPHT oil & gas fields with high sulfur content 3. Exceptional Dynamic Fatigue Resistance: – 2x longer fatigue life than super duplex steel in cyclic load applications – Excellent resistance to vibration and wave-induced fatigue – Industry standard for dynamic risers and umbilicals 4. Superior Field Fabricability: – Excellent weldability with all conventional welding processes – No post-weld heat treatment required, critical for remote offshore installations – Reduces installation time and costs by 40-50% compared to other high-performance alloys 5. Broad Temperature Range Performance: – Maintains full ductility at cryogenic temperatures down to -196℃ – Excellent high-temperature strength up to 650℃ for process piping – Suitable for both LNG and HPHT applications |
| Application Scenarios and Corresponding Customers | 1. FPSOs and FLNGs:
– Applications: Process piping, risers, manifolds, wellheads, BOP components, heat exchangers – Customers: ExxonMobil, Shell, BP, Chevron, TotalEnergies, CNOOC 2. Subsea Production Systems: – Applications: Subsea flowlines, umbilicals, manifolds, Christmas trees, jumpers, connectors – Customers: TechnipFMC, Schlumberger, Halliburton, Baker Hughes, Aker Solutions 3. Offshore Wind Farms: – Applications: Foundation fasteners, turbine internals, subsea cables, transformer components – Customers: Ørsted, Vestas, Siemens Gamesa, Goldwind, Envision Energy 4. Deep-Sea Exploration Vessels: – Applications: ROV/AUV pressure hulls, sampling systems, subsea instrumentation, hydraulic systems – Customers: Woods Hole Oceanographic Institution, China Ocean Mineral Resources R&D Association 5. LNG Terminals and Carriers: – Applications: Cryogenic piping systems, valve bodies, pump shafts, heat exchanger tubes – Customers: QatarEnergy, Shell LNG, MOL, NYK Line, China LNG Shipping |
| Customer Requirements in This Industry | 1. Performance Requirements:
– Deep-Sea Corrosion Resistance: Must withstand high pressure and chloride environments – Sour Service Resistance: Must meet NACE MR0175 requirements for H₂S – Fatigue Resistance: Must withstand cyclic loads from wave action and vessel motion – Cryogenic Toughness: Must maintain ductility at -196℃ for LNG applications – Erosion-Corrosion Resistance: Must withstand high-velocity fluid and sediment impingement 2. Quality and Compliance Requirements: – NACE and API Certification: Must provide NACE MR0175 and API 5LC certification – Classification Society Approval: Must be approved by ABS, DNV, LR or equivalent – Full Traceability: Must provide complete traceability from raw material to finished product – Third-Party Inspection: Must allow inspection by independent offshore inspectors – Material Certification: Must provide EN 10204 3.2 mill test reports 3. Manufacturing Requirements: – Double Vacuum Melting: Must use VIM+VAR process for critical subsea components – Cladding Technology: Must provide high-quality weld overlay cladding for large-diameter pipes – Precision Dimensional Tolerances: Must meet tight tolerances for proper fit and assembly – Non-Destructive Testing: Must undergo 100% UT, ET and hydrostatic testing – Customization: Must produce custom sizes and shapes per customer drawings |
| Common Related Products in This Industry | 1. Inconel 625 Seamless Pipes/Tubes: For subsea umbilicals, hydraulic lines and heat exchangers
2. Inconel 625 Welded Pipes: Cost-effective for large-diameter process piping 3. Inconel 625 Clad Pipes: Carbon steel base with Inconel 625 liner for flowlines and risers 4. Inconel 625 Bars/Rods: For valve stems, pump shafts, fasteners and machined components 5. Inconel 625 Forgings: Custom forgings including flanges, valve bodies, pump casings and manifolds 6. Inconel 625 Fasteners: High-strength bolts, nuts, screws and studs for offshore applications 7. Inconel 625 Welding Materials: ERNiCrMo-3 electrodes and wires for offshore welding 8. Inconel 625 Sheets and Plates: For tank liners, splash zone cladding and structural components 9. Inconel 625 U-Bend Tubes: Custom bent tubes for offshore heat exchangers and condensers 10. Custom Fabricated Assemblies: Pre-fabricated piping spools and subsea manifolds |
| Why Choose Us (Emily PIPE) | 1. 20+ Years of Offshore Alloy Expertise: We have supplied Inconel 625 products to over 300 offshore projects worldwide
2. Full NACE, API and Classification Society Certification: Our production line meets the strictest offshore industry standards 3. Advanced Cladding Technology: We offer high-quality Inconel 625 weld overlay cladding for large-diameter pipes 4. Full-Process Quality Control: We implement 100% ultrasonic, eddy current and hydrostatic testing on all products 5. Strategic Inventory Management: We maintain 400+ tons of Inconel 625 inventory to support urgent offshore requirements 6. Global Logistics Network: We have experience delivering to remote offshore locations worldwide 7. Dedicated Offshore Technical Team: Our metallurgical engineers specialize in offshore material selection and failure analysis 8. One-Stop Solution: We provide complete solutions from raw material supply to finished machined components |
| Supplementary Industry Information | 1. Comprehensive Test Reports: Each batch comes with a full MTR including chemical analysis, mechanical properties, NDT results and corrosion test reports. SSC and HIC test reports available upon request
2. Full Material Traceability: Every product has a unique heat number and complete traceability documentation from ingot to finished product 3. Value-Added Processing: We offer precision cutting, CNC bending, welding, end processing and surface finishing services 4. Emergency Response Service: We provide 24/7 emergency support for offshore shutdown requirements 5. Market Growth: The global Inconel 625 market for marine & offshore industry is projected to grow at a CAGR of over 8% through 2030, driven by deep-water oil & gas development and offshore wind farm construction 6. Sustainability Commitment: All our products are manufactured using sustainable practices and are 100% recyclable |
| Packaging | 1. Plastic Caps: All pipe/bar ends are protected with heavy-duty polyethylene caps with internal sealing rings to prevent contamination
2. Waterproof Film: Each product is individually wrapped in waterproof and anti-corrosion film 3. Bundle Packing: Products of the same size are bundled with steel straps and wooden spacers to prevent contact damage 4. Wooden Case: Bundles are packed in sturdy fumigated wooden cases with steel reinforcement for international shipping 5. Export Standard Packing: All packaging complies with international export standards and ISPM 15 regulations 6. Marking: Each package is clearly marked with product specifications, heat number, batch number, quantity and destination |
Looking for Inconel 625 pipe, bar or forging for marine & offshore applications? Send us your dimensions, application requirements and certification standards. We will provide a customized quotation and technical data sheet within 12 hours.
