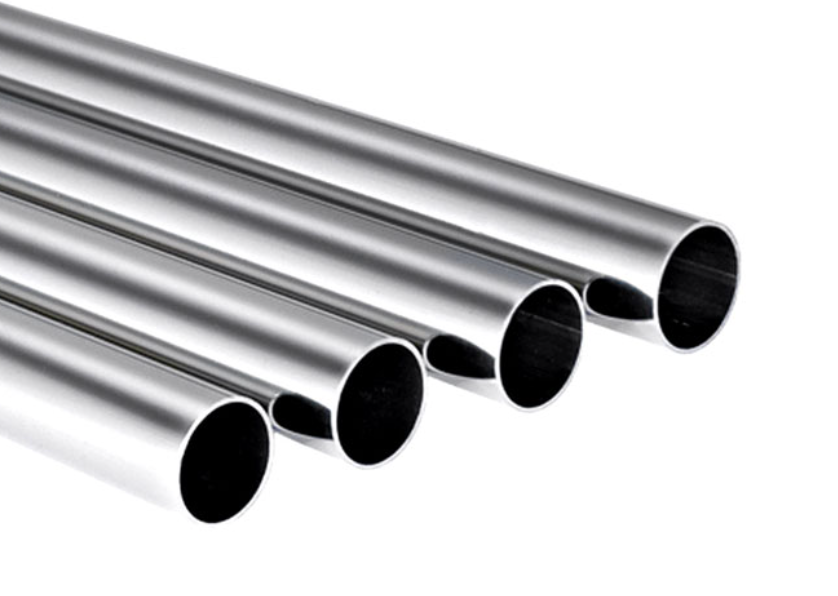

Inconel 600 Pipe for Aviation

2. International Material Standards: ASTM B167 (Seamless Pipe), ASTM B517 (Welded Pipe), ASME SB167, ASME SB517, DIN 17750, EN 2.4816

3. Pressure Vessel Standards: ASME Section VIII Div. 1, PED 2014/68/EU

4. Testing Standards: ASTM E8, ASTM E23, ASTM E10, ASTM G48, ASTM E243, ASTM E1444 (Magnetic Particle)

5. Quality Management Standards: AS9100D, ISO 9001, ISO 14001, NADCAP (Non-Destructive Testing)

2. International Designations: UNS N06600, W.Nr. 2.4816, Alloy 600, NiCr15Fe

3. Equivalent Grades: NS3102 (China), Inconel 600 (USA), Nicrofer 7216 (Germany), fully compatible with all global aerospace manufacturing standards

4. Special Grades: Inconel 600LC (Low Carbon) for improved weldability; Inconel 600HT (High Temperature) for enhanced creep resistance; precision grade for tight tolerance applications

2. Chromium (Cr): 14.0 – 17.0 (for oxidation resistance and high-temperature strength)

3. Iron (Fe): 6.0 – 10.0 (for improved formability and cost-effectiveness)

4. Carbon (C): ≤0.15 (standard); ≤0.05 (LC grade)

5. Manganese (Mn): ≤1.00

6. Silicon (Si): ≤0.50

7. Sulfur (S): ≤0.015

8. Phosphorus (P): ≤0.020

9. Copper (Cu): ≤0.50

Note: The high nickel content provides exceptional resistance to carburization and sulfidation, while chromium delivers excellent high-temperature oxidation protection

2. 0.2% Yield Strength (Room Temperature): ≥240 MPa

3. Elongation (δ5): ≥40% (excellent formability for complex aerospace components)

4. Reduction of Area: ≥50%

5. Hardness (HB): 120 – 180

6. Tensile Strength (800℃): ≥180 MPa

7. Tensile Strength (1000℃): ≥70 MPa

8. Creep Rupture Strength (870℃, 1000h): ≥40 MPa

9. Modulus of Elasticity: 206 GPa

10. Thermal Expansion Coefficient: 13.3 × 10⁻⁶ /℃ (20-100℃)

11. Maximum Continuous Service Temperature: 1095℃

– Outer Diameter 6mm – 50mm: ±0.15mm

– Outer Diameter 50mm – 150mm: ±0.3mm

– Wall Thickness 0.5mm – 3mm: ±0.08mm

– Wall Thickness 3mm – 10mm: ±0.12mm

2. Welded Pipes:

– Outer Diameter 10mm – 100mm: ±0.2mm

– Wall Thickness 0.8mm – 5mm: ±0.10mm

3. U-Bend Pipes:

– Bend Radius Tolerance: ±0.5mm

– Ovality at Bend: ≤3% of outer diameter

4. Length Tolerance:

– Fixed Length (1m – 12m): ±2mm

– Custom Length up to 18m available

– Inconel 600 maintains excellent oxidation resistance up to 1095℃ in continuous service, 115℃ higher than Inconel 625, making it the only viable material for components operating in the hottest sections of aircraft engines.

– Forms a dense, adherent chromium oxide scale that resists spalling even during extreme thermal cycling, preventing material degradation in combustion chambers and afterburner sections.

– Resists oxidation in both oxidizing and reducing atmospheres, ensuring reliable performance in variable engine operating conditions.

2. Exceptional Carburization and Sulfidation Resistance:

– The high nickel content provides unparalleled resistance to carburization, a major cause of material embrittlement in aircraft engine combustion zones where unburned fuel and carbon deposits are present.

– Excellent resistance to sulfidation from sulfur-containing fuels, critical for engines operating on jet fuel with varying sulfur content.

– Resists halogen gas corrosion, making it suitable for components exposed to de-icing fluids and cleaning agents.

3. Superior Thermal Stability and Thermal Fatigue Resistance:

– Maintains a stable austenitic microstructure even after 100,000+ hours of high-temperature exposure, with no phase transformations or grain growth that would cause embrittlement.

– Excellent thermal fatigue resistance, withstanding millions of heating and cooling cycles encountered in aircraft engine operation, including takeoff, cruise and landing cycles.

– Good thermal conductivity and moderate thermal expansion coefficient minimize thermal stress in components subjected to rapid temperature changes.

4. Excellent Formability and Weldability:

– Outstanding cold formability allows for the production of complex shapes such as combustion chamber liners, exhaust ducts and bellows without cracking or defects.

– Excellent weldability with all conventional welding processes used in aerospace, including TIG, MIG, laser and electron beam welding.

– Retains good mechanical properties and corrosion resistance after welding, ensuring long-term reliability of welded joints.

5. Significant Cost Advantage:

– 20-30% lower material cost than Inconel 625 and other high-performance superalloys, making it ideal for large-scale aerospace applications where cost is a critical factor.

– Lower processing costs due to excellent formability and machinability, resulting in additional savings for aerospace manufacturers.

– Long service life reduces maintenance and replacement costs, providing a low total cost of ownership.

6. Proven Long-Term Reliability and Safety:

– Over 60 years of proven performance in commercial and military aviation applications, with an impeccable safety record.

– Extensively tested and qualified by all major aircraft and engine manufacturers.

– Excellent fracture toughness ensures that any potential defects will not propagate catastrophically, enhancing aircraft safety.

– Applications: Combustion chamber liners, flame tubes, afterburner components, exhaust nozzles, turbine exhaust ducts, bleed air systems, engine nacelles and heat shields

– Customers: General Electric Aviation, Pratt & Whitney, Rolls-Royce, Safran Aircraft Engines, CFM International, IAE, Honeywell Aerospace

2. Aerospace Heat Treatment Equipment:

– Applications: Heating elements, furnace tubes, retorts, muffles, fixtures and trays for vacuum furnaces, brazing furnaces and heat treatment furnaces used in aerospace component manufacturing

– Customers: Bodycote, Wall Colmonoy, Solar Atmospheres, major aircraft and engine manufacturers’ in-house heat treatment facilities

3. Auxiliary Power Units (APU):

– Applications: Combustion chambers, exhaust systems, heat exchangers and ducting for aircraft auxiliary power units

– Customers: Honeywell Aerospace, Pratt & Whitney Canada, Safran Power Units, UTC Aerospace Systems

4. Sensors and Instrumentation:

– Applications: Thermocouple protection tubes, temperature sensor housings, pressure sensor components and instrument tubing for high-temperature engine environments

– Customers: Rosemount Aerospace, Meggitt, Sensata Technologies, UTC Aerospace Systems

5. Aircraft Environmental Control Systems (ECS):

– Applications: High-temperature ducting, heat exchanger tubes and components for aircraft environmental control systems

– Customers: Collins Aerospace, Safran Cabin, Liebherr Aerospace

6. Space and Missile Systems:

– Applications: Rocket engine combustion chambers, nozzle extensions, heat shields and structural components for launch vehicles and missiles

– Customers: SpaceX, NASA, Blue Origin, United Launch Alliance, Northrop Grumman, Raytheon

– High-Temperature Oxidation Resistance: Must resist oxidation and scaling at temperatures up to 1095℃ for the entire service life of the component.

– Carburization and Sulfidation Resistance: Must resist carburization and sulfidation from engine combustion products to prevent material embrittlement.

– Thermal Fatigue Resistance: Must withstand millions of thermal cycles without cracking or failure.

– Thermal Stability: Must maintain a stable microstructure and mechanical properties after long-term high-temperature exposure.

– Weldability: Must be easily weldable while retaining good mechanical properties and corrosion resistance.

– Formability: Must be formable into complex shapes without cracking or defects.

2. Quality and Compliance Requirements:

– AS9100 Certification: Must comply with the AS9100 aerospace quality management system standard.

– AMS Standard Compliance: Must meet all requirements of the applicable AMS aerospace material specifications.

– Full Material Traceability: Must provide 100% traceability from raw material ore to finished product, including all processing steps and test results.

– NADCAP Certification: Non-destructive testing must be performed by NADCAP-accredited facilities.

– First Article Inspection (FAI): Must provide complete first article inspection reports for all new parts.

– Material Certification: Must provide comprehensive material test reports (MTR) with each shipment, including chemical analysis, mechanical properties and non-destructive test results.

3. Manufacturing Requirements:

– Precision Dimensional Tolerances: Must meet extremely tight dimensional tolerances to ensure proper fit and assembly in aircraft systems.

– Surface Quality: Must have a smooth, defect-free surface to prevent fatigue crack initiation and oxidation acceleration.

– Internal Quality: Must be free from internal defects such as inclusions, porosity and segregation, verified by 100% ultrasonic testing.

– Consistent Quality: Must have uniform chemical composition and mechanical properties across all batches and throughout the entire cross-section of the pipe.

– Cleanliness Requirements: Must meet strict cleanliness standards to prevent contamination of aircraft systems.

– Custom Fabrication Capability: Must be able to produce custom sizes, shapes and configurations according to customer drawings.

4. Supply Chain Requirements:

– Reliable Delivery: Must provide on-time delivery to support aircraft production schedules.

– Long-Term Supply Assurance: Must be able to provide a stable supply of material for the entire lifecycle of aircraft programs (up to 50 years).

– Small Batch Capability: Must be able to produce small batch quantities for prototype development and spare parts.

– Global Supply Capability: Must be able to supply to manufacturing facilities worldwide with consistent quality and lead times.

– Emergency Response: Must be able to respond quickly to unexpected demand spikes and AOG (Aircraft On Ground) situations.

5. Cost Requirements:

– Competitive Pricing: Must offer competitive pricing while maintaining the highest quality standards.

– Low Total Cost of Ownership: Must provide lower total cost of ownership through longer service life, reduced maintenance and fewer replacement costs.

– Value-Added Services: Must offer value-added services such as cutting, bending, welding and machining to reduce customer manufacturing costs.

2. Inconel 600 Welded Pipes: Cost-effective solution for large-diameter and low-to-medium pressure applications

3. Inconel 600 U-Bend Pipes: Custom bent pipes for aerospace heat exchangers and ECS systems

4. Inconel 600 Fittings: Elbows, tees, reducers, flanges and couplings for aerospace piping systems

5. Inconel 600 Forgings: Custom forgings including valve bodies, flanges and structural components

6. Inconel 600 Wire: Solid wire and welding wire for manufacturing springs, fasteners and welding applications

7. Inconel 600 Welding Materials: Electrodes, wires and filler metals specifically formulated for aerospace welding applications

8. Inconel 600 Machined Components: Precision-machined parts including valves, fittings, nozzles and sensor housings

9. Inconel 600 Sheets and Plates: Used for manufacturing combustion chamber liners, heat shields and structural components

10. Custom Fabricated Assemblies: Pre-fabricated combustion chambers, ducting systems and manifold assemblies

2. AS9100 Certified: Our production facilities are fully certified to AS9100D, the international standard for aerospace quality management systems.

3. Dedicated Aerospace Production Line: We operate a dedicated clean production line for aerospace-grade Inconel 600 pipes, ensuring strict control over chemical composition, mechanical properties and surface quality.

4. Full-Process Quality Control: We implement a comprehensive quality control system from raw material inspection to finished product testing, including 100% ultrasonic testing, eddy current testing and hydrostatic testing for all aerospace-grade pipes.

5. AMS Standard Compliance: All our products are manufactured in strict accordance with AMS 5540, AMS 5580 and other applicable aerospace material standards.

6. Advanced Customization Capability: We can produce custom sizes, lengths, wall thicknesses and end processing according to your drawings and technical specifications, including complex U-bend and coiled pipes.

7. Global Aerospace Supply Chain Experience: We have extensive experience supplying to major aircraft and engine manufacturers worldwide, with reliable logistics partners ensuring on-time delivery to manufacturing facilities anywhere in the world.

8. Professional Aerospace Technical Support: Our team of metallurgical engineers and aerospace specialists provides expert guidance on material selection, design optimization and manufacturing techniques for high-temperature aerospace applications.

2. Full Material Traceability: Every pipe comes with a unique heat number and complete traceability documentation from raw material ore to finished product, meeting the strictest aerospace industry requirements.

3. Value-Added Processing: We offer comprehensive value-added services including precision cutting, CNC bending, welding, end processing and surface finishing, providing ready-to-install aerospace components.

4. Prototype Development Support: We support small batch prototype orders with fast turnaround times to help you accelerate product development and testing for new aerospace programs.

5. Long-Term Supply Assurance: We maintain strategic inventory levels to ensure a stable supply of material for the entire lifecycle of aircraft programs.

6. AOG Emergency Service: We provide 24/7 emergency response service for Aircraft On Ground (AOG) situations, with expedited production and shipping available.

7. Market Growth: The global aerospace Inconel 600 market is projected to grow at a CAGR of over 6% through 2030, driven by increasing demand for new commercial aircraft and military aircraft.

8. Sustainability Commitment: All our products are manufactured using sustainable practices and are 100% recyclable, helping you meet your environmental targets and comply with global sustainability regulations.

2. Waterproof Film: Each pipe is individually wrapped in waterproof and anti-corrosion film to protect against moisture and rust

3. Bundle Packing: Pipes of the same size are bundled together with steel straps and wooden spacers to prevent contact and damage

4. Wooden Case: Bundles are packed in sturdy fumigated wooden cases with steel reinforcement to prevent damage during international shipping

5. Export Standard Packing: All packaging complies with international export standards and ISPM 15 regulations for wooden packaging

6. Marking: Each package is clearly marked with product specifications, heat number, quantity, gross weight, net weight and destination information
