Emily PIPE offers a complete range of medical-grade titanium alloys including Gr.2, Gr.4, Gr.5, Gr.7 and Gr.23, engineered to meet the strictest biocompatibility and performance requirements of the healthcare industry. Our titanium tubes and bars provide exceptional corrosion resistance to body fluids, excellent mechanical properties and superior biocompatibility, making them the gold standard for implantable medical devices and surgical instruments.
As a leading China-based medical titanium alloy manufacturer with over 20 years of experience, we supply precision-manufactured titanium products fully certified to ISO 13485, ASTM F67 and ASTM F136 standards. From orthopedic implants to dental devices and surgical instruments, our medical-grade titanium alloys deliver reliable performance that meets the demanding safety requirements of the global healthcare industry.
| Item | Details |
|---|---|
| Executive Standards | 1. Medical Material Standards: ASTM F67 (Pure Titanium), ASTM F136 (Ti-6Al-4V ELI), ISO 5832-2, ISO 5832-3
2. Quality Management Standards: ISO 13485, FDA 21 CFR Part 820 3. Testing Standards: ASTM E8, ASTM G31 (Corrosion), ASTM F1295 (Biocompatibility) 4. Surface Finish Standards: ASTM B600, Ra 0.2-0.8 μm for implant applications |
| Material Grades | 1. Titanium Grade 2 (UNS R50400): Commercially pure titanium, excellent formability and biocompatibility
2. Titanium Grade 4 (UNS R50700): Highest strength pure titanium, good corrosion resistance 3. Titanium Grade 5 (UNS R56400): Ti-6Al-4V, high strength alloy for non-implantable medical devices 4. Titanium Grade 7 (UNS R52400): Ti-0.2Pd, superior crevice corrosion resistance for dental implants 5. Titanium Grade 23 (UNS R56407): Ti-6Al-4V ELI (Extra Low Interstitial), highest biocompatibility for long-term implants |
| Chemical Composition (Weight %) | Grade 2: Ti≥99.2, O≤0.25, Fe≤0.30, C≤0.08, N≤0.03, H≤0.015
Grade 4: Ti≥98.6, O≤0.40, Fe≤0.50, C≤0.08, N≤0.05, H≤0.015 Grade 5: Ti=Balance, Al5.5-6.75, V3.5-4.5, Fe≤0.30, O≤0.20, C≤0.08, N≤0.05, H≤0.015 Grade 7: Ti=Balance, Pd0.12-0.25, O≤0.25, Fe≤0.30, C≤0.08, N≤0.03, H≤0.015 Grade 23: Ti=Balance, Al5.5-6.5, V3.5-4.5, Fe≤0.25, O≤0.13, C≤0.08, N≤0.05, H≤0.0125 Note: Lower interstitial elements in Gr.23 provide superior biocompatibility and fatigue resistance |
| Mechanical Properties (Annealed State) | Grade 2: Tensile≥345MPa, Yield≥275MPa, Elongation≥20%, HB≤120
Grade 4: Tensile≥550MPa, Yield≥485MPa, Elongation≥15%, HB≤160 Grade 5: Tensile≥895MPa, Yield≥825MPa, Elongation≥10%, HB≤300 Grade 7: Tensile≥345MPa, Yield≥275MPa, Elongation≥20%, HB≤120 Grade 23: Tensile≥860MPa, Yield≥795MPa, Elongation≥10%, HB≤290 Modulus of Elasticity: 110 GPa (matches human bone closely) |
| Dimensional Tolerance | 1. Seamless Tubes: OD0.5-50mm ±0.05mm; Wall thickness ±0.03-0.08mm
2. Round Bars/Rods: Ø0.8-50mm ±0.05mm; Ø50-150mm ±0.1mm 3. Precision Ground Bars: Ø1-30mm ±0.01mm; Straightness ≤0.1mm/m 4. Length Tolerance: ±0.5mm (0.1-3m); custom lengths up to 6m available 5. Surface Finish: Ra 0.2-0.8 μm for implant applications; Ra 1.6-3.2 μm for general use |
| Why These Materials Are Used in Healthcare Industry | 1. Exceptional Biocompatibility:
– Non-toxic, non-allergenic and non-carcinogenic to human tissue – Osseointegrative, allowing bone to grow directly onto the implant surface – No adverse immune reactions or inflammatory responses – The only material approved by FDA for long-term implantation in the human body 2. Superior Corrosion Resistance: – Forms a stable, self-healing titanium oxide layer that protects against body fluids – Immune to corrosion from blood, saliva, urine and other bodily secretions – Eliminates metal ion release that can cause tissue damage and allergic reactions – Gr.7 provides additional crevice corrosion resistance for dental implants 3. Optimal Mechanical Properties: – Excellent strength-to-weight ratio, 40% lighter than stainless steel – Low modulus of elasticity (110 GPa) that matches human bone (10-30 GPa) – Reduces stress shielding, a common cause of implant failure – Excellent fatigue resistance for long-term implant performance 4. Excellent Fabricability: – Good formability for complex implant shapes – Excellent machinability for precision surgical instruments – Compatible with all common surface treatments including anodization and coating – Can be sterilized by all standard methods without degradation |
| Application Scenarios and Corresponding Customers | 1. Orthopedic Implants:
– Applications: Hip and knee replacements, spinal fusion devices, bone plates, screws, nails, rods – Customers: Johnson & Johnson, Medtronic, Stryker, Zimmer Biomet, Smith & Nephew 2. Dental Implants and Devices: – Applications: Dental implants, abutments, crowns, bridges, orthodontic brackets, surgical instruments – Customers: Nobel Biocare, Straumann, Dentsply Sirona, Zimmer Biomet Dental, 3M Oral Care 3. Surgical Instruments: – Applications: Forceps, scissors, retractors, clamps, needle holders, laparoscopic instruments – Customers: B. Braun, Aesculap, Ethicon, Medline, Integra LifeSciences 4. Cardiovascular Devices: – Applications: Stents, pacemaker cases, defibrillator components, heart valve parts – Customers: Boston Scientific, Medtronic, Abbott, Edwards Lifesciences, Siemens Healthineers 5. Medical Equipment: – Applications: Surgical tables, MRI components, X-ray equipment, sterilization trays, instrument cases – Customers: Siemens Healthineers, GE Healthcare, Philips Healthcare, Hill-Rom, Stryker Medical |
| Customer Requirements in This Industry | 1. Performance Requirements:
– Biocompatibility: Must meet ISO 10993 and FDA biocompatibility standards – Corrosion Resistance: Must resist corrosion in body fluids for the lifetime of the implant – Mechanical Strength: Must withstand physiological loads and cyclic fatigue – Surface Quality: Must have a smooth, defect-free surface to prevent bacterial adhesion – Sterilizability: Must withstand repeated sterilization cycles without degradation 2. Quality and Compliance Requirements: – Medical Certification: Must meet ISO 13485, ASTM F67, ASTM F136 and FDA requirements – Full Traceability: Must provide complete traceability from titanium sponge to finished product – Material Certification: Must provide comprehensive MTRs including chemical analysis and mechanical properties – Cleanliness Requirements: Must meet strict cleanliness standards for medical devices – Third-Party Inspection: Must allow inspection by authorized medical device auditors 3. Manufacturing Requirements: – Precision Dimensional Tolerances: Must meet tight tolerances for proper fit and function – Surface Finish Control: Must provide consistent surface finishes for implant applications – Internal Quality: Must be free from inclusions, porosity and segregation (100% UT verified) – Consistent Quality: Must have uniform chemical composition and mechanical properties across all batches – Customization: Must produce custom sizes and shapes per customer drawings |

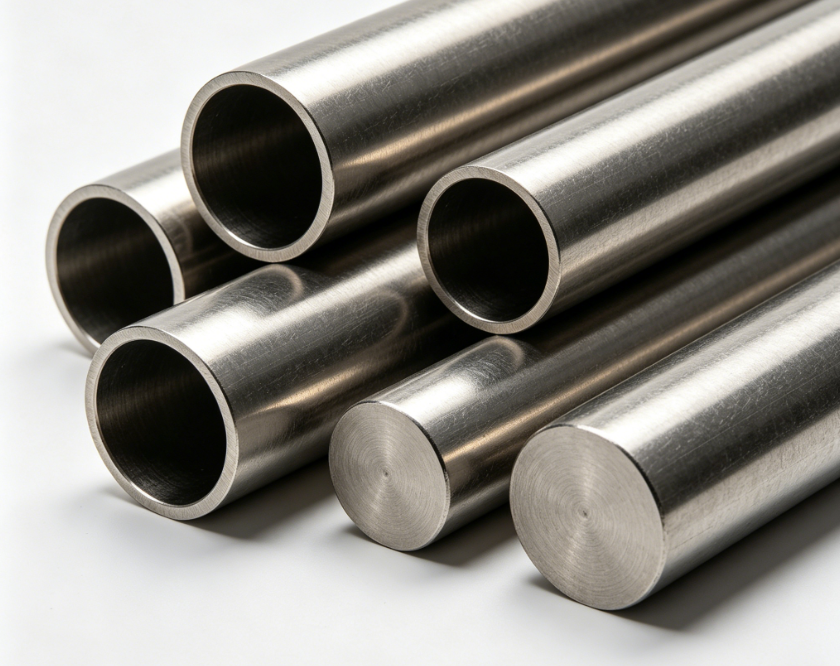

| Common Related Products in This Industry | 1. Medical Titanium Seamless Tubes: For cardiovascular stents, catheters and surgical instruments
2. Medical Titanium Round Bars/Rods: For implant blanks, screws, nails and surgical instruments 3. Precision Ground Titanium Bars: For high-precision implant components 4. Titanium Forgings: Custom forgings for hip and knee implants, spinal devices 5. Titanium Wire: For sutures, orthodontic wires and springs 6. Titanium Sheets and Plates: For bone plates, cranial plates and medical equipment 7. Titanium Machined Components: Precision-machined implant parts and surgical instruments 8. Titanium Fasteners: Screws, nuts and bolts for medical devices 9. Titanium Dental Implant Blanks: Pre-machined blanks for dental implants 10. Custom Fabricated Assemblies: Pre-fabricated medical device components |
| Why Choose Us (Emily PIPE) | 1. 20+ Years of Medical Titanium Expertise: We have supplied titanium products to over 100 medical device manufacturers worldwide
2. Full Medical Certification: Our production facility is certified to ISO 13485 and meets FDA requirements 3. Complete Grade Range: We offer all five medical titanium grades in one place, simplifying your supply chain 4. Full-Process Quality Control: We implement comprehensive quality control from melting to final inspection 5. Advanced Manufacturing Capabilities: We use state-of-the-art equipment to produce precision medical titanium products 6. Clean Room Production: We have dedicated clean room facilities for medical product packaging 7. Professional Technical Support: Our team of metallurgical engineers provides expert material selection guidance 8. One-Stop Solution: We provide complete solutions from raw material supply to finished machined components |
| Supplementary Industry Information | 1. Comprehensive Test Reports: Each batch comes with a full MTR including chemical analysis, mechanical properties and NDT results. Biocompatibility test reports available upon request
2. Full Material Traceability: Every product has a unique heat number and complete traceability documentation 3. Value-Added Processing: We offer precision cutting, CNC machining, surface finishing and clean room packaging services 4. Prototype Development Support: We support small batch prototype orders with fast turnaround times 5. Market Growth: The global medical titanium market is projected to grow at a CAGR of over 8% through 2030, driven by aging populations and increasing demand for implantable devices 6. Sustainability Commitment: All our titanium products are manufactured using sustainable practices and are 100% recyclable |
| Packaging | 1. Plastic Caps: All tube/bar ends are protected with medical-grade polyethylene caps
2. Vacuum Sealing: Each product is individually vacuum-sealed in medical-grade packaging 3. Clean Room Packaging: Medical-grade products are packaged in Class 1000 clean rooms 4. Bundle Packing: Products of the same size are bundled with medical-grade straps 5. Wooden Case: Bundles are packed in sturdy fumigated wooden cases with steel reinforcement 6. Export Standard Packing: All packaging complies with international export standards and medical device regulations 7. Marking: Each package is clearly marked with product specifications, heat number, batch number and sterilization status |
Looking for medical-grade titanium bar or tube? Send us your size, quantity and application requirements. We will provide a suitable solution and competitive quotation.
