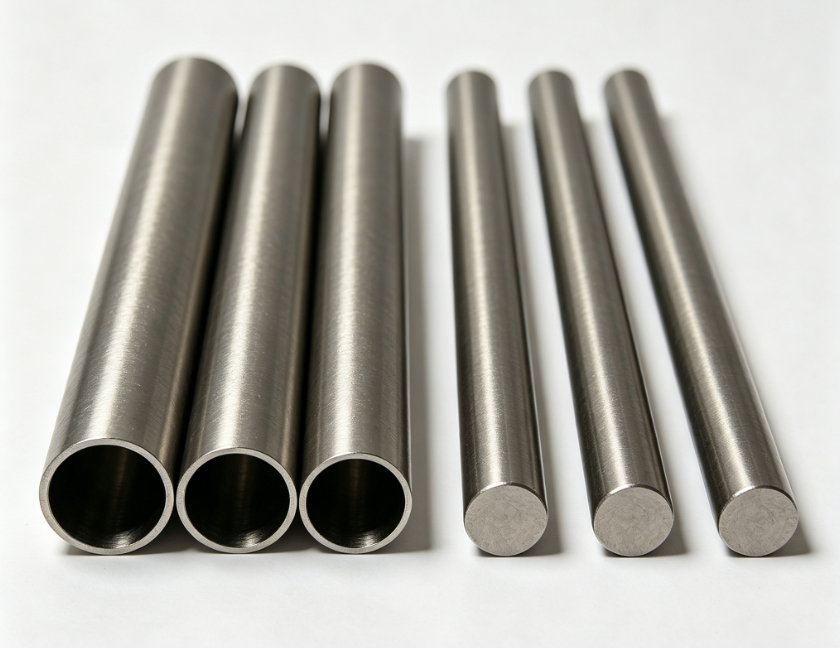

Emily PIPE offers a complete range of electric power-grade titanium alloys including Gr.2, Gr.5, Gr.7 and Gr.12, engineered to solve the most critical corrosion and high-temperature challenges in power generation. Our titanium tubes and bars provide exceptional resistance to seawater, flue gas desulfurization (FGD) environments and high-temperature steam, delivering 10-20 times longer service life than stainless steel in aggressive power plant conditions.
As a leading China-based titanium alloy manufacturer with over 20 years of experience, we supply precision-manufactured titanium products fully certified to ASTM, ASME and ISO standards. From coastal power plant cooling systems to nuclear reactor components, our Gr.2/Gr.5/Gr.7/Gr.12 alloys offer the optimal balance of performance and cost-effectiveness for global electric power industry customers.
| Item | Details |
|---|---|
| Executive Standards | 1. International Material Standards: ASTM B337 (Seamless Pipe), ASTM B338 (Welded Pipe), ASTM B348 (Bar/Rod)
2. Power Piping Standards: ASME B31.1 (Power Piping), ASME B31.3 3. Nuclear Power Standards: ASME Section III, NQA-1 4. Pressure Vessel Standards: ASME Section I (Power Boilers), ASME Section VIII Div.1 5. Testing Standards: ASTM E8, ASTM G48 (Pitting/Crevice), ASTM E243 (Eddy Current) |
| Material Grades | 1. Titanium Grade 2 (UNS R50400): Commercially pure titanium, most widely used power grade, excellent corrosion resistance
2. Titanium Grade 5 (UNS R56400): Ti-6Al-4V, high-strength alloy for structural components 3. Titanium Grade 7 (UNS R52400): Ti-0.2Pd, superior crevice corrosion resistance in reducing environments 4. Titanium Grade 12 (UNS R53400): Ti-0.3Mo-0.8Ni, excellent high-temperature corrosion resistance |
| Chemical Composition (Weight %) | Grade 2: Ti≥99.2, O≤0.25, Fe≤0.30, C≤0.08, N≤0.03, H≤0.015
Grade 5: Ti=Balance, Al5.5-6.75, V3.5-4.5, Fe≤0.30, O≤0.20, C≤0.08, N≤0.05, H≤0.015 Grade 7: Ti=Balance, Pd0.12-0.25, O≤0.25, Fe≤0.30, C≤0.08, N≤0.03, H≤0.015 Grade 12: Ti=Balance, Mo0.2-0.4, Ni0.6-0.9, O≤0.25, Fe≤0.30, C≤0.08, N≤0.03, H≤0.015 Note: Palladium addition in Gr.7 significantly improves crevice corrosion resistance in low-pH environments |
| Mechanical Properties (Annealed State) | Grade 2: Tensile≥345MPa, Yield≥275MPa, Elongation≥20%, HB≤120
Grade 5: Tensile≥895MPa, Yield≥825MPa, Elongation≥10%, HB≤300 Grade 7: Tensile≥345MPa, Yield≥275MPa, Elongation≥20%, HB≤120 Grade 12: Tensile≥485MPa, Yield≥380MPa, Elongation≥18%, HB≤160 Max Service Temp: Gr.2/7: 315℃; Gr.12: 425℃; Gr.5: 400℃ |
| Dimensional Tolerance | 1. Seamless Pipes/Tubes: Ø6-50mm ±0.1mm; Ø50-150mm ±0.2mm; Wall thickness ±0.05-0.1mm
2. Welded Pipes: Ø10-300mm ±0.15mm; Wall thickness ±0.08mm 3. Round Bars/Rods: Ø6-50mm ±0.1mm; Ø50-150mm ±0.2mm; Ø150-300mm ±0.3mm 4. Length Tolerance: ±2mm (1-6m); custom lengths up to 12m available 5. Straightness: ≤0.3mm/m for precision bars |
| Why These Materials Are Used in Electric Power Industry | 1. Unmatched Seawater Cooling Performance:
– Immune to chloride-induced pitting, crevice corrosion and stress corrosion cracking in seawater – Corrosion rate <0.01mm/year in flowing seawater, 1/10 of 316L stainless steel – Resists biofouling, reducing maintenance costs and improving heat transfer efficiency – Ideal for coastal power plant cooling systems and condensers 2. Superior FGD System Corrosion Resistance: – Withstands the combined attack of H₂SO₄, HCl, HF and chlorides in flue gas scrubbers – Gr.7 and Gr.12 provide exceptional crevice corrosion resistance in low-pH FGD environments – Corrosion rate <0.1mm/year vs. >5mm/year for 316L stainless steel – Eliminates frequent tube failures that cause unplanned plant shutdowns 3. Excellent Nuclear Power Performance: – ASME Section III certified for nuclear reactor auxiliary systems – Excellent resistance to boric acid and radiation-induced embrittlement – Low neutron absorption cross-section minimizes activation – Used in steam generator secondary sides and radioactive waste handling systems 4. High-Temperature Steam Resistance: – Maintains mechanical properties up to 425℃ in high-pressure steam – Resists oxidation and scaling in steam environments – Ideal for feedwater heaters and heat exchanger components 5. Superior Cost-Effectiveness: – While initial cost is 3-5x higher than 316L, 10-20x longer service life reduces total cost of ownership by 60-80% – Eliminates costly annual maintenance and replacement of stainless steel components – No need for protective coatings, reducing maintenance costs |
| Application Scenarios and Corresponding Customers | 1. Coastal Fossil Fuel Power Plants:
– Applications: Seawater intake piping, condenser tubes, heat exchanger tubes, cooling water systems – Customers: GE Power, Siemens Energy, Mitsubishi Heavy Industries, State Grid Corporation, China Energy Investment Corporation 2. Flue Gas Desulfurization (FGD) Systems: – Applications: Scrubber spray headers, slurry piping, mist eliminator supports, heat exchanger tubes, stack liners – Customers: DuPont Water Solutions, Veolia, SUEZ, local power generation groups 3. Nuclear Power Generation: – Applications: Steam generator secondary side tubing, heat exchanger tubes, radioactive waste piping, auxiliary systems – Customers: Westinghouse, Areva, Rosatom, China National Nuclear Corporation, China General Nuclear Power Group 4. Gas Turbine Combined Cycle Power Plants: – Applications: HRSG heat exchanger tubes, cooling water systems, exhaust gas treatment piping – Customers: General Electric, Siemens, Mitsubishi Heavy Industries, Ansaldo Energia 5. Renewable Energy Power Plants: – Applications: Geothermal power plant piping, heat exchangers, biomass power plant corrosion-resistant components – Customers: Ormat Technologies, Siemens Gamesa, Goldwind, Envision Energy |
| Customer Requirements in This Industry | 1. Performance Requirements:
– Seawater Corrosion Resistance: Must resist corrosion and biofouling in seawater – FGD Corrosion Resistance: Must withstand mixed acid and chloride environments – High-Temperature Performance: Must maintain properties at operating temperatures up to 425℃ – Radiation Resistance: Must withstand neutron radiation in nuclear applications – Weldability: Must be easily weldable while retaining corrosion resistance 2. Quality and Compliance Requirements: – ASME Code Compliance: Must meet ASME Section I, III and B31.1 requirements – Nuclear Quality Assurance: Must comply with NQA-1 for nuclear applications – Full Traceability: Must provide complete traceability from titanium sponge to finished product – Material Certification: Must provide comprehensive MTRs including chemical analysis and mechanical properties – Third-Party Inspection: Must allow inspection by TÜV, SGS, BV or other authorized organizations 3. Manufacturing Requirements: – Precision Dimensional Tolerances: Must meet tight tolerances for proper fit and assembly – Surface Quality: Must have smooth, defect-free surfaces to prevent corrosion initiation – Internal Quality: Must be free from inclusions, porosity and segregation (100% UT/ET verified) – Consistent Quality: Must have uniform chemical composition and mechanical properties across all batches – Customization: Must produce custom sizes and shapes per customer drawings |
| Common Related Products in This Industry | 1. Titanium Seamless Pipes/Tubes: For condenser tubes, heat exchangers and process piping
2. Titanium Welded Pipes: Cost-effective solution for large-diameter FGD and cooling water piping 3. Titanium Round Bars/Rods: For manufacturing pump shafts, valve stems and fasteners 4. Titanium Forgings: Custom forgings including valve bodies, pump casings and flanges 5. Titanium Fasteners: Bolts, nuts, screws, studs and washers for power plant applications 6. Titanium Welding Materials: ERTi-2, ERTi-5, ERTi-7 and ERTi-12 welding wires 7. Titanium Sheets and Plates: For FGD scrubber liners, stack liners and tank liners 8. Titanium U-Bend Tubes: Custom bent tubes for power plant heat exchangers and condensers 9. Titanium Machined Components: Precision-machined valves, fittings and pump parts 10. Custom Fabricated Assemblies: Pre-fabricated piping spools and FGD spray headers |
| Why Choose Us (Emily PIPE) | 1. 20+ Years of Power Industry Titanium Expertise: We have supplied titanium products to over 80 power plants worldwide
2. Full ASME and Nuclear Certification: Our production facility meets the strictest power industry standards 3. Complete Grade Range: We offer all four power titanium grades in one place, simplifying your supply chain 4. Full-Process Quality Control: We implement 100% ultrasonic, eddy current and hydrostatic testing on all products 5. Advanced Manufacturing Capabilities: We use state-of-the-art equipment to produce precision titanium products 6. Global Power Supply Chain Experience: We have extensive experience delivering to major power companies worldwide 7. Professional Technical Support: Our team of metallurgical engineers provides expert material selection guidance 8. One-Stop Solution: We provide complete solutions from raw material supply to pre-fabricated assemblies |
| Supplementary Industry Information | 1. Comprehensive Test Reports: Each batch comes with a full MTR including chemical analysis, mechanical properties and NDT results. Corrosion test reports available upon request
2. Full Material Traceability: Every product has a unique heat number and complete traceability documentation 3. Value-Added Processing: We offer precision cutting, CNC bending, welding, end processing and surface finishing services 4. Emergency Response Service: We provide 24/7 emergency service for unplanned power plant shutdowns 5. Market Growth: The global electric power titanium market is projected to grow at a CAGR of over 6% through 2030, driven by increasing demand for clean energy and stricter environmental regulations 6. Sustainability Commitment: All our titanium products are manufactured using sustainable practices and are 100% recyclable |
| Packaging | 1. Plastic Caps: All tube/bar ends are protected with heavy-duty polyethylene caps with internal sealing rings to prevent contamination
2. Waterproof Film: Each product is individually wrapped in waterproof and anti-corrosion film 3. Bundle Packing: Products of the same size are bundled with steel straps and wooden spacers to prevent contact damage 4. Wooden Case: Bundles are packed in sturdy fumigated wooden cases with steel reinforcement for international shipping 5. Export Standard Packing: All packaging complies with international export standards and ISPM 15 regulations 6. Marking: Each package is clearly marked with product specifications, heat number, quantity and destination |
Looking for inconel bar? Send us your size, quantity and application. We will provide a suitable solution and competitive quotation.
