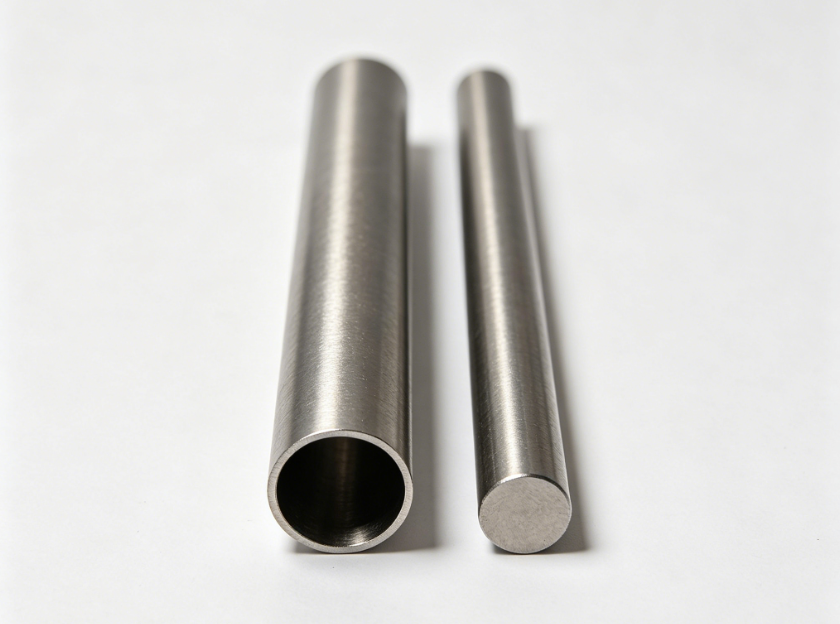

Emily PIPE offers a complete range of chemical-grade titanium alloys including Gr.1, Gr.2, Gr.3, Gr.7, Gr.12 and Gr.16, engineered to solve the most severe corrosion challenges in chemical processing. Our titanium tubes and bars provide exceptional resistance to oxidizing and reducing acids, chlorides and brines, delivering 5-20 times longer service life than stainless steel in aggressive chemical environments.
As a leading China-based titanium alloy manufacturer with over 20 years of experience, we supply precision-manufactured titanium products fully certified to ASTM, ASME and ISO standards. From general chemical processing to highly corrosive chlor-alkali and sulfuric acid plants, our Gr.1/Gr.2/Gr.3/Gr.7/Gr.12/Gr.16 alloys offer the optimal balance of performance and cost-effectiveness for global chemical industry customers.
| Item | Details |
|---|---|
| Executive Standards | 1. International Material Standards: ASTM B337 (Seamless Pipe), ASTM B338 (Welded Pipe), ASTM B348 (Bar/Rod)
2. Chemical Piping Standards: ASME B31.3 (Process Piping), ASME B31.4 3. Pressure Vessel Standards: ASME Section VIII Div.1, PED 2014/68/EU 4. Testing Standards: ASTM E8, ASTM G31 (Corrosion), ASTM E243 (Eddy Current) 5. Quality Management Standards: ISO 9001, ISO 14001 |
| Material Grades | 1. Titanium Grade 1 (UNS R50250): Commercially pure titanium, highest formability, excellent corrosion resistance
2. Titanium Grade 2 (UNS R50400): Most widely used chemical grade, balanced strength and formability 3. Titanium Grade 3 (UNS R50550): Higher strength pure titanium, good corrosion resistance 4. Titanium Grade 7 (UNS R52400): Ti-0.2Pd, superior crevice corrosion resistance in reducing acids 5. Titanium Grade 12 (UNS R53400): Ti-0.3Mo-0.8Ni, excellent high-temperature corrosion resistance 6. Titanium Grade 16 (UNS R52402): Ti-0.05Pd, cost-effective alternative to Gr.7 for crevice corrosion resistance |
| Chemical Composition (Weight %) | Grade 1: Ti≥99.5, O≤0.18, Fe≤0.20, C≤0.08, N≤0.03, H≤0.015
Grade 2: Ti≥99.2, O≤0.25, Fe≤0.30, C≤0.08, N≤0.03, H≤0.015 Grade 3: Ti≥98.9, O≤0.35, Fe≤0.30, C≤0.08, N≤0.05, H≤0.015 Grade 7: Ti=Balance, Pd0.12-0.25, O≤0.25, Fe≤0.30, C≤0.08, N≤0.03, H≤0.015 Grade 12: Ti=Balance, Mo0.2-0.4, Ni0.6-0.9, O≤0.25, Fe≤0.30, C≤0.08, N≤0.03, H≤0.015 Grade 16: Ti=Balance, Pd0.04-0.08, O≤0.25, Fe≤0.30, C≤0.08, N≤0.03, H≤0.015 Note: Palladium addition in Gr.7/16 significantly improves crevice corrosion resistance in reducing environments |
| Mechanical Properties (Annealed State) | Grade 1: Tensile≥240MPa, Yield≥170MPa, Elongation≥24%, HB≤95
Grade 2: Tensile≥345MPa, Yield≥275MPa, Elongation≥20%, HB≤120 Grade 3: Tensile≥450MPa, Yield≥380MPa, Elongation≥18%, HB≤140 Grade 7: Tensile≥345MPa, Yield≥275MPa, Elongation≥20%, HB≤120 Grade 12: Tensile≥485MPa, Yield≥380MPa, Elongation≥18%, HB≤160 Grade 16: Tensile≥345MPa, Yield≥275MPa, Elongation≥20%, HB≤120 Max Service Temp: Gr.1/2/3/7/16: 315℃; Gr.12: 425℃ |
| Dimensional Tolerance | 1. Seamless Pipes/Tubes: Ø6-50mm ±0.1mm; Ø50-150mm ±0.2mm; Wall thickness ±0.05-0.1mm
2. Welded Pipes: Ø10-300mm ±0.15mm; Wall thickness ±0.08mm 3. Round Bars/Rods: Ø6-50mm ±0.1mm; Ø50-150mm ±0.2mm; Ø150-300mm ±0.3mm 4. Length Tolerance: ±2mm (1-6m); custom lengths up to 12m available 5. Straightness: ≤0.3mm/m for precision bars |
| Why These Materials Are Used in Chemical Industry | 1. Unmatched Chloride Corrosion Resistance:
– Immune to chloride-induced pitting, crevice corrosion and stress corrosion cracking – Resists corrosion in seawater, brines and chloride-containing process fluids up to 200℃ – Eliminates the most common failure mode in chemical processing equipment 2. Superior Acid Resistance: – Gr.1/2/3: Excellent resistance to oxidizing acids (nitric acid, chromic acid) and neutral solutions – Gr.7/16: Superior resistance to reducing acids (hydrochloric acid, sulfuric acid) and crevice corrosion – Gr.12: Excellent resistance to high-temperature acids and salt solutions – Outperforms stainless steel by 10-20 times in most acid environments 3. Excellent Caustic and Alkali Resistance: – Resists corrosion in sodium hydroxide, potassium hydroxide and other alkaline solutions – Ideal for chlor-alkali production and caustic handling systems – No stress corrosion cracking in high-concentration caustic solutions 4. Wet Chlorine Resistance: – The only commercial material that can reliably withstand wet chlorine gas – Forms a stable protective oxide layer in chlorine environments – Essential for chlorine production and processing equipment 5. Superior Cost-Effectiveness: – While initial cost is 3-5x higher than 316L, 10-20x longer service life reduces total cost of ownership by 60-80% – Eliminates costly annual maintenance and replacement of stainless steel components – No need for protective coatings, reducing maintenance costs |
| Application Scenarios and Corresponding Customers | 1. Chlor-Alkali Industry:
– Applications: Electrolyzer components, brine piping, chlorine gas piping, heat exchangers, caustic handling systems – Customers: Dow Chemical, Olin Corporation, Westlake Chemical, Shin-Etsu Chemical, Solvay 2. Sulfuric Acid Industry: – Applications: Acid transfer lines, heat exchanger tubes, absorption tower piping, pump and valve components – Customers: DuPont, BASF, Bayer, ExxonMobil Chemical, Shell Chemical 3. Petrochemical Industry: – Applications: Process piping, heat exchangers, reactor components, desalination systems, wastewater treatment – Customers: ExxonMobil, Shell, BP, Chevron, TotalEnergies, Sinopec 4. Fine Chemical and Pharmaceutical Industry: – Applications: Reactor piping, heat exchangers, solvent recovery systems, clean process piping – Customers: Merck, Pfizer, Novartis, Roche, Bayer Healthcare 5. Pulp and Paper Industry: – Applications: Bleaching system components, digester piping, acid handling systems, wastewater treatment – Customers: International Paper, Kimberly-Clark, Procter & Gamble, Stora Enso 6. Water and Wastewater Treatment: – Applications: Desalination plants, reverse osmosis systems, wastewater treatment piping, heat exchangers – Customers: DuPont Water Solutions, Veolia, SUEZ, Acciona Agua |
| Customer Requirements in This Industry | 1. Performance Requirements:
– Corrosion Resistance: Must resist specific process chemicals at operating temperatures and pressures – Crevice Corrosion Resistance: Must resist crevice corrosion in stagnant or low-flow conditions – Stress Corrosion Resistance: Must be immune to stress corrosion cracking in chloride-containing environments – High-Temperature Performance: Must maintain properties at operating temperatures up to 425℃ – Weldability: Must be easily weldable while retaining corrosion resistance 2. Quality and Compliance Requirements: – ASME Code Compliance: Must meet ASME B31.3 and Section VIII Div.1 requirements – Material Standard Compliance: Must meet all requirements of ASTM B337, B338 and B348 – Full Traceability: Must provide complete traceability from titanium sponge to finished product – Material Certification: Must provide comprehensive MTRs including chemical analysis and mechanical properties – Third-Party Inspection: Must allow inspection by TÜV, SGS, BV or other authorized organizations 3. Manufacturing Requirements: – Precision Dimensional Tolerances: Must meet tight tolerances for proper fit and assembly – Surface Quality: Must have smooth, defect-free surfaces to prevent corrosion initiation – Internal Quality: Must be free from inclusions, porosity and segregation (100% UT/ET verified) – Consistent Quality: Must have uniform chemical composition and mechanical properties across all batches – Customization: Must produce custom sizes and shapes per customer drawings |
| Common Related Products in This Industry | 1. Titanium Seamless Pipes/Tubes: For high-pressure process piping and heat exchangers
2. Titanium Welded Pipes: Cost-effective solution for large-diameter process piping 3. Titanium Round Bars/Rods: For manufacturing pump shafts, valve stems and fasteners 4. Titanium Forgings: Custom forgings including valve bodies, pump casings and flanges 5. Titanium Fasteners: Bolts, nuts, screws, studs and washers for chemical service 6. Titanium Welding Materials: ERTi-1, ERTi-2, ERTi-3, ERTi-7, ERTi-12 and ERTi-16 welding wires 7. Titanium Sheets and Plates: For manufacturing tanks, vessels and heat exchangers 8. Titanium U-Bend Tubes: Custom bent tubes for chemical heat exchangers and condensers 9. Titanium Machined Components: Precision-machined valves, fittings and pump parts 10. Custom Fabricated Assemblies: Pre-fabricated piping spools and heat exchanger bundles |
| Why Choose Us (Emily PIPE) | 1. 20+ Years of Chemical Titanium Expertise: We have supplied titanium products to over 100 chemical plants worldwide
2. Complete Grade Range: We offer all six chemical titanium grades in one place, simplifying your supply chain 3. Full-Process Quality Control: We implement 100% ultrasonic, eddy current and hydrostatic testing on all products 4. Complete International Certifications: Our products meet all major international chemical industry standards 5. Advanced Customization Capability: We can produce custom sizes, lengths and shapes per your drawings 6. Global Chemical Supply Chain Experience: We have extensive experience delivering to major chemical companies worldwide 7. Professional Technical Support: Our team of metallurgical engineers provides expert material selection guidance 8. One-Stop Solution: We provide complete solutions from raw material supply to pre-fabricated assemblies |
| Supplementary Industry Information | 1. Comprehensive Test Reports: Each batch comes with a full MTR including chemical analysis, mechanical properties and NDT results. Corrosion test reports available upon request
2. Full Material Traceability: Every product has a unique heat number and complete traceability documentation 3. Value-Added Processing: We offer precision cutting, CNC bending, welding, end processing and surface finishing services 4. Prototype Development Support: We support small batch prototype orders with fast turnaround times 5. Emergency Response Service: We provide 24/7 emergency service for unplanned plant shutdowns 6. Market Growth: The global chemical titanium market is projected to grow at a CAGR of over 7% through 2030, driven by increasing demand for corrosion-resistant materials 7. Sustainability Commitment: All our titanium products are manufactured using sustainable practices and are 100% recyclable |
| Packaging | 1. Plastic Caps: All tube/bar ends are protected with heavy-duty polyethylene caps with internal sealing rings to prevent contamination
2. Waterproof Film: Each product is individually wrapped in waterproof and anti-corrosion film 3. Bundle Packing: Products of the same size are bundled with steel straps and wooden spacers to prevent contact damage 4. Wooden Case: Bundles are packed in sturdy fumigated wooden cases with steel reinforcement for international shipping 5. Export Standard Packing: All packaging complies with international export standards and ISPM 15 regulations 6. Marking: Each package is clearly marked with product specifications, heat number, quantity and destination |
Looking for inconel bar? Send us your size, quantity and application. We will provide a suitable solution and competitive quotation.
