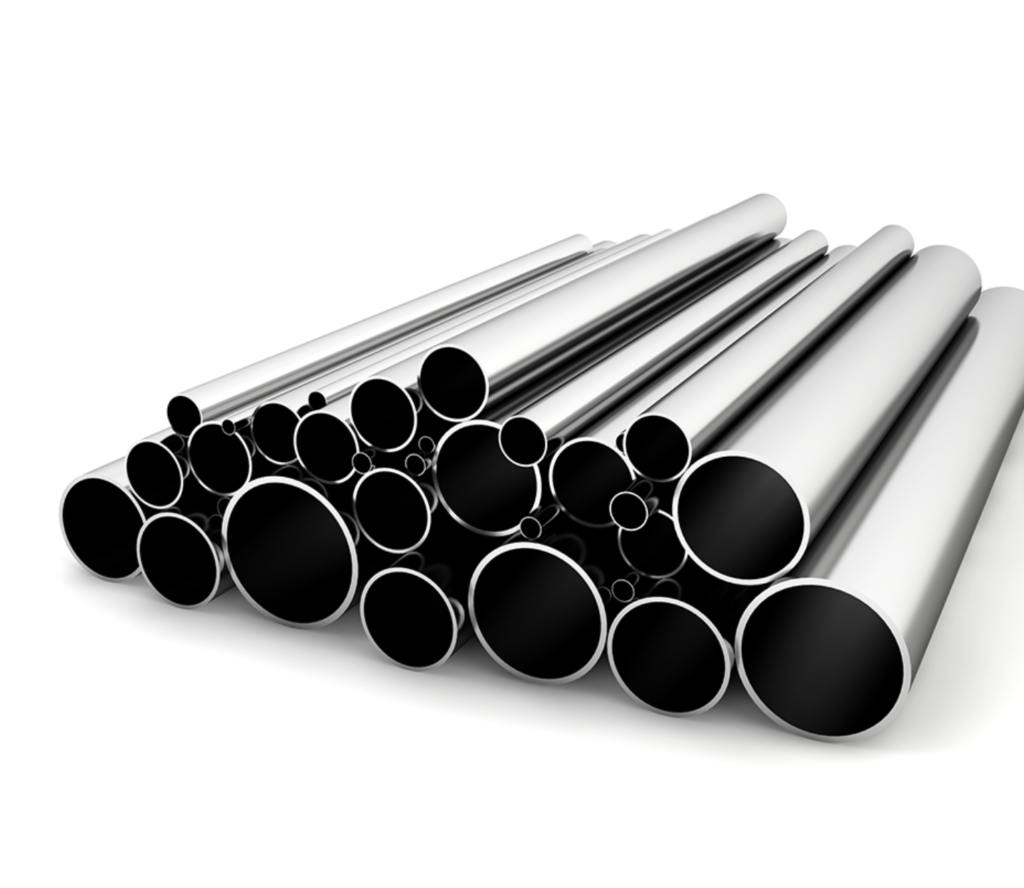

Alloy 20 (UNS N08020, Carpenter 20) pipe for chemical industry is a niobium-stabilized nickel-iron-chromium-molybdenum-copper superalloy pipe, specifically engineered for sulfuric acid service. It provides exceptional resistance to general and localized corrosion in moderate-to-high concentration sulfuric acid environments, filling the critical performance gap between stainless steel and high-cost Hastelloy alloys.
As the industry-standard cost-effective solution for sulfuric acid processing, Alloy 20 pipe exhibits excellent resistance to stress corrosion cracking and intergranular corrosion without post-weld heat treatment. With over 20 years of production experience, Emily PIPE supplies precision-manufactured Alloy 20 seamless and welded pipes that meet the strictest international chemical industry standards.
| Item | Details |
|---|---|
| Executive Standards | 1. International Material Standards: ASTM B468 (Seamless Pipe), ASTM B474 (Welded Pipe), ASME SB468, ASME SB474, DIN 17744, EN 2.4660
2. Chemical Piping Standards: ASME B31.3 (Process Piping), ASME B31.4 3. Pressure Vessel Standards: ASME Section VIII Div.1, PED 2014/68/EU 4. Testing Standards: ASTM E8, ASTM E23, ASTM E10, ASTM G48, ASTM E243 5. Quality Management Standards: ISO 9001, ISO 14001, OHSAS 18001 |
| Material Grade | 1. Main Grade: Alloy 20 (Niobium-Stabilized Nickel-Iron-Chromium Alloy, Sulfuric Acid Service Grade)
2. International Designations: UNS N08020, W.Nr.2.4660, Carpenter 20, Alloy 20Cb-3 3. Equivalent Grades: NS1403 (China), Alloy 20 (USA), Nicrofer 3620 (Germany) 4. Special Grades: Seamless grade for high-pressure applications; ultra-low carbon grade for maximum weldability |
| Chemical Composition (Weight %) | 1. Nickel (Ni): 32.0-38.0 (base element for corrosion resistance)
2. Chromium (Cr): 19.0-21.0 (for oxidizing acid resistance) 3. Molybdenum (Mo): 2.0-3.0 (for reducing acid and pitting resistance) 4. Copper (Cu): 3.0-4.0 (key element for sulfuric acid resistance) 5. Niobium + Tantalum (Nb+Ta): 8×C-1.0 (stabilizes against intergranular corrosion) 6. Iron (Fe): Balance (improves formability and cost-effectiveness) 7. Carbon (C): ≤0.07 8. Manganese (Mn): ≤2.00 9. Silicon (Si): ≤1.00 10. Phosphorus (P): ≤0.045 11. Sulfur (S): ≤0.035 |
| Mechanical Properties (Annealed State) | 1. Tensile Strength (RT): 620-790 MPa
2. 0.2% Yield Strength (RT): ≥275 MPa 3. Elongation (δ5): ≥30% 4. Reduction of Area: ≥40% 5. Hardness (HB): 140-200 6. Tensile Strength (100℃): ≥550 MPa 7. Modulus of Elasticity: 196 GPa 8. Thermal Expansion: 15.2×10⁻⁶/℃ (20-100℃) 9. Maximum Continuous Service Temperature: 315℃ |
| Dimensional Tolerance | 1. Seamless Pipes: Ø6-50mm ±0.15mm; Ø50-150mm ±0.3mm; Ø150-300mm ±0.5mm; Wall thickness ±0.08-0.12mm
2. Welded Pipes: Ø10-200mm ±0.2mm; Wall thickness ±0.10mm 3. U-Bend Pipes: Bend radius ±0.5mm; Ovality at bend ≤3% of OD 4. Length Tolerance: ±2mm (1-12m); custom lengths up to 18m available |
| Why This Material Is Used in Chemical Industry | 1. Unmatched Sulfuric Acid Resistance:
– Specifically formulated for 20-80% concentration sulfuric acid at temperatures up to 100℃, the most common and corrosive acid in chemical processing – The copper addition provides unique resistance to sulfuric acid that cannot be achieved with stainless steel or other nickel alloys – Outperforms 316L stainless steel by 10-20 times in sulfuric acid environments 2. Excellent Stress Corrosion Cracking Resistance: – Immune to chloride-induced stress corrosion cracking, a major failure mode in chemical processing equipment – Resists cracking in environments containing both sulfuric acid and chlorides – Ideal for heat exchangers and piping systems operating under tensile stress 3. No Post-Weld Heat Treatment Required: – Niobium stabilization eliminates carbide precipitation in weld heat-affected zones – Retains 100% corrosion resistance after welding without post-weld heat treatment – Reduces fabrication costs by 30-40% and shortens project timelines 4. Superior Cost-Effectiveness: – 40-50% lower material cost than Hastelloy C276 while delivering comparable performance in sulfuric acid – Service life 3-5 times longer than 316L stainless steel, resulting in significantly lower total cost of ownership – Lower processing costs due to excellent formability and machinability 5. Broad Chemical Compatibility: – Excellent resistance to phosphoric acid, nitric acid, acetic acid and other organic acids – Good resistance to alkaline solutions and salts – Suitable for multi-chemical process environments |
| Application Scenarios and Corresponding Customers | 1. Sulfuric Acid Production and Processing Industry:
– Applications: Acid transfer lines, heat exchanger tubes, absorption tower piping, pump and valve components, acid storage tanks – Customers: DuPont, BASF, Bayer, ExxonMobil Chemical, Shell Chemical, Sinopec 2. Fertilizer and Agrochemical Industry: – Applications: Phosphoric acid production piping, fertilizer processing lines, acid handling systems, heat exchanger tubes – Customers: Yara International, Nutrien, Mosaic, CF Industries, OCP Group, Sinochem 3. Pharmaceutical and Fine Chemical Industry: – Applications: Reactor piping, heat exchanger tubes, solvent transfer lines, acid and base handling systems – Customers: Pfizer, Novartis, Merck, Roche, Johnson & Johnson, AstraZeneca 4. Food and Beverage Industry: – Applications: Food processing equipment, brewing and distilling piping, edible oil processing lines, heat exchanger tubes – Customers: Nestlé, Coca-Cola, PepsiCo, Unilever, Kraft Heinz, Danone 5. Electroplating and Metal Finishing Industry: – Applications: Plating solution piping, acid pickling lines, metal finishing equipment, heat exchanger tubes – Customers: Atotech, Coventya, MacDermid Enthone, major automotive and electronics plating facilities 6. Petrochemical and Refining Industry: – Applications: Acid gas removal systems, alkylation units, heat exchanger tubes, process piping – Customers: ExxonMobil, Shell, BP, Chevron, TotalEnergies, Saudi Aramco |
| Customer Requirements in This Industry | 1. Performance Requirements:
– Sulfuric Acid Resistance: Must resist corrosion in 20-80% concentration sulfuric acid at operating temperatures – Stress Corrosion Cracking Resistance: Must withstand combined tensile stress and corrosive media – Intergranular Corrosion Resistance: Must resist intergranular corrosion after welding – Pressure Resistance: Must withstand operating pressures up to 100 bar in chemical processes – Chemical Compatibility: Must be compatible with all process chemicals encountered 2. Quality and Compliance Requirements: – Material Standard Compliance: Must meet all requirements of ASTM B468, ASTM B474 and ASME SB468 – ASME B31.3 Compliance: Must comply with process piping code for chemical plant construction – Full Traceability: Must provide 100% traceability from raw material ore to finished product – Material Certification: Must provide comprehensive MTRs including chemical analysis and NDT results – Third-Party Inspection: Must allow inspection by TÜV, SGS, BV or other authorized organizations 3. Manufacturing Requirements: – Precision Dimensional Tolerances: Must meet tight tolerances for proper fit and assembly of piping systems – Surface Quality: Must have a smooth, defect-free surface to prevent corrosion initiation – Internal Quality: Must be free from inclusions, porosity and segregation (100% UT/ET verified) – Consistent Quality: Must have uniform chemical composition across all batches – Cleanliness Requirements: Must meet strict cleanliness standards for pharmaceutical and food applications 4. Supply Chain Requirements: – Reliable Delivery: Must meet tight project schedules and plant turnaround deadlines – Emergency Response: Must provide expedited production for unplanned shutdowns – Small Batch Capability: Must produce small quantities for prototype development and maintenance – Global Supply Capability: Must deliver to chemical plants worldwide with consistent quality – Inventory Management: Must offer stock holding solutions to reduce customer inventory costs 5. Cost Requirements: – Competitive Pricing: Must offer fair pricing while maintaining the highest quality standards – Low Total Cost of Ownership: Must provide long service life and reduced maintenance costs – Value-Added Services: Must offer cutting, bending, welding and end processing services |
| Common Related Products in This Industry | 1. Alloy 20 Seamless Pipes: Available in various sizes and wall thicknesses for high-pressure chemical applications
2. Alloy 20 Welded Pipes: Cost-effective solution for large-diameter and low-to-medium pressure applications 3. Alloy 20 U-Bend Pipes: Custom bent pipes for chemical heat exchangers and condensers 4. Alloy 20 Fittings: Elbows, tees, reducers, flanges and couplings for chemical piping systems 5. Alloy 20 Forgings: Custom forgings including valve bodies, pump casings and flanges 6. Alloy 20 Fasteners: Bolts, nuts, screws, studs and washers for sulfuric acid service 7. Alloy 20 Welding Materials: Electrodes, wires and filler metals for chemical industry welding 8. Alloy 20 Machined Components: Precision-machined valves, fittings and heat exchanger parts 9. Alloy 20 Sheets and Plates: Used for manufacturing tanks, vessels and heat exchangers 10. Custom Fabricated Assemblies: Pre-fabricated piping spools and heat exchanger bundles |
| Why Choose Us (Emily PIPE) | 1. 20+ Years of Chemical Alloy Expertise: We have been supplying high-performance Alloy 20 pipe products to the global chemical industry for over 20 years
2. Dedicated Chemical Grade Production Line: We operate a dedicated clean production line for Alloy 20 pipes, ensuring strict control over chemical composition 3. Full-Process Quality Control: We implement comprehensive quality control including 100% ultrasonic, eddy current and hydrostatic testing 4. Complete International Certifications: Our products meet all major international standards and hold ASTM, ASME, PED and ISO 9001 certifications 5. Advanced Customization Capability: We can produce custom sizes, lengths, wall thicknesses and end processing according to your drawings 6. Global Chemical Supply Chain Experience: We have extensive experience supplying to major chemical companies worldwide with reliable on-time delivery 7. Professional Technical Support: Our team of metallurgical engineers and corrosion specialists provides expert guidance on material selection 8. One-Stop Solution: We provide complete solutions from raw material supply to pre-fabricated piping assemblies, reducing your supply chain complexity |
| Supplementary Industry Information | 1. Comprehensive Test Reports: Each batch comes with a full MTR including chemical analysis, mechanical properties and NDT results. Corrosion test reports available upon request
2. Full Material Traceability: Every pipe has a unique heat number and complete traceability documentation from raw material to finished product 3. Value-Added Processing: We offer precision cutting, CNC bending, welding, end processing and surface finishing services 4. Prototype Development Support: We support small batch prototype orders with fast turnaround times 5. Emergency Response Service: We provide 24/7 emergency service for unplanned plant shutdowns with expedited shipping 6. Market Growth: The global Alloy 20 pipe market is projected to grow at a CAGR of over 5% through 2030, driven by increasing demand from sulfuric acid and fertilizer industries 7. Sustainability Commitment: All our products are manufactured using sustainable practices and are 100% recyclable |
| Packaging | 1. Plastic Caps: All pipe ends are protected with heavy-duty polyethylene caps with internal sealing rings to prevent contamination
2. Waterproof Film: Each pipe is individually wrapped in waterproof and anti-corrosion film 3. Bundle Packing: Pipes of the same size are bundled with steel straps and wooden spacers to prevent contact damage 4. Wooden Case: Bundles are packed in sturdy fumigated wooden cases with steel reinforcement for international shipping 5. Export Standard Packing: All packaging complies with international export standards and ISPM 15 regulations 6. Marking: Each package is clearly marked with product specifications, heat number, quantity and destination |
